USB 3.0 / USB-C / Thunderbolt 3 Professional Dual 4K Display Docking Station Generation 2 + Power Delivery 100W

Key Features

• Professional Universal docking station, compatible with USB-C, USB-A and Thunderbolt laptops & tablets
• 2x DisplayPort and 2x HDMI supporting up to dual 4K/60Hz displays (also applies to Apple M1/M2 platform) or single 5K/60Hz display

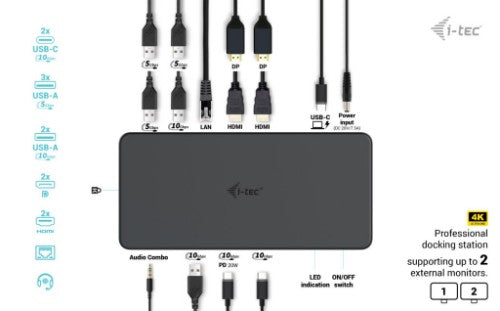

• 7x USB ports including 2x USB-C Gen 2 (1x supporting 20W PD charging and one supporting BC 1.2 fast charge) and 5x USB-A 3.2 (2x Gen 2 and 3x Gen 1), making it easy to connect multiple USB devices and peripherals for super-fast data transfer
• Provides up to 100W Power Delivery for compatible USB-C and Thunderbolt laptops & tablets. The host device must support USB-C Power Delivery
• GLAN Ethernet supports network speeds of 10/100/1000 Mbps speeds, providing a robust and high-speed internet connection
• Combined high quality 32bit/192 kHz 3.5 mm audio input and output jack for easy connection to headset or speakers
• VESA bracket available to help keep your desk tidy and free from cables, plus K-lock slot for added security

Description

A powerful office docking station supporting super-fast USB Gen 2 ports with fast charging. Dock supports output to up to two external monitors in up to 4K high resolution. The dock can be used with virtually all notebooks as it supports connection to all common ports: USB 3.0, USB-C and Thunderbolt” 3/4, while supporting all common current operating systems.

Plenty of USB ports (two USB-C support Gen 2 speeds of up to 10 Gbps), reliable and fast connection to the corporate network thanks to the integrated LAN port and support for installation behind the monitor all make this docking station the ideal companion for true professionals. Of course, it supports charging of your laptop or tablet, up to 100 W.

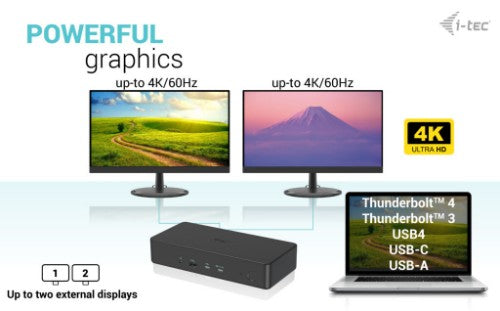

- Connect to 2 external monitors in resolutions up to 4K
- Power delivery: up to 100 W
- 2 DisplayPort and 2 HDMI ports available
- 2x USB-C Gen 2 (10 Gbps), 2x USB-A 3.2 Gen 2 (10 Gbps) and 3x USB-A 3.2 Gen 1 (5 Gbps) allow you to easily connect your USB devices and peripherals.
- USB ports support fast charging: USB-C provides PD up-to 20 W, two additional ports support BC 1.2 fast charging.
- Gigabit Ethernet RJ-45 provides reliable, robust and high-speed internet connectivity with support for 10/100/1000 Mbps speeds.
- Combo jack for audio and microphone, very high quality 32bit/192 kHz sampling rate
- Kensington lock provides anti-theft protection, especially in shared office environments or public areas
- Docking station power switch allows for maximum power savings
- Docking station supports a VESA mount for smart vertical installation behind a VESA-enabled monitor
- Supports Windows 10 / 11, macOS, Android 5 or later, Chrome OS R51 or later, Linux Ubuntu

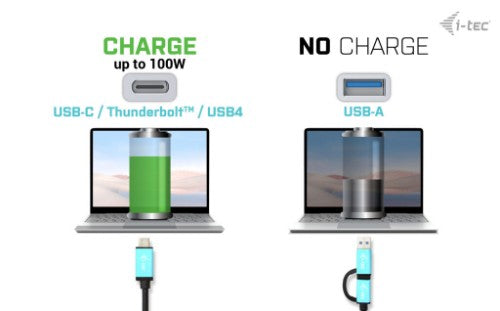

NOTE: If the docking station is connected via USB 3.0 port, charging is not supported.

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Headphone connectivity	3.5 mm
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	2
DisplayPorts quantity	2
DC-in jack	Yes
Connectivity technology	Wired
USB Power Delivery	Yes
USB Power Delivery up to	100 W
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Number of displays supported	2
On/off switch	Yes
Product colour	Black
Card reader integrated	No
Cable lock slot	Yes
Data transfer rate	10 Gbit/s
Cable lock slot type	Kensington
HD type	4K Ultra HD
VESA mounting	Yes
Maximum refresh rate	60 Hz
Technical details
Product colour	Black
Cable lock slot	Yes
Data transfer rate	10 Gbit/s
Storage
Card reader integrated	No
Power
Power source type	AC
Compatible power plug types	UK
Output voltage	20 V
Output current	7.5 A
Power supply	150 W
USB cable length	1 m
Software
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Other operating systems supported	Android, ChromeOS
Weight & dimensions
Weight	539 g
Width	190 mm
Depth	88 mm
Height	37 mm
Package width	253 mm
Package depth	200 mm
Package height	54 mm
Design
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Product colour	Black
Cable lock slot	Yes
Cable lock slot type	Kensington
Packaging data
Package width	253 mm
Package depth	200 mm
Package height	54 mm

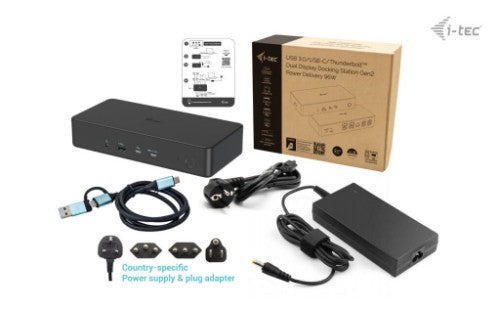

Packaging content
Manual	Yes
Cables included	AC, USB Type-A to USB Type-C
AC adapter included	Yes
