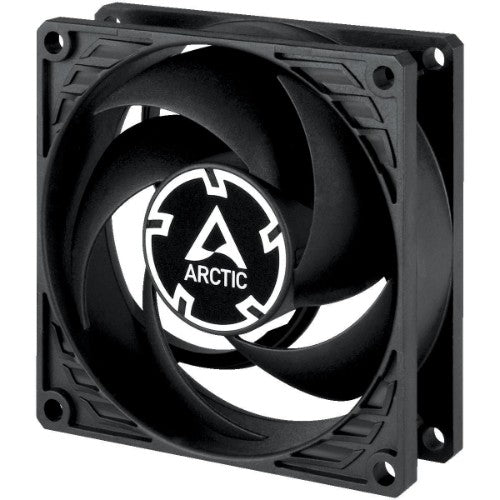

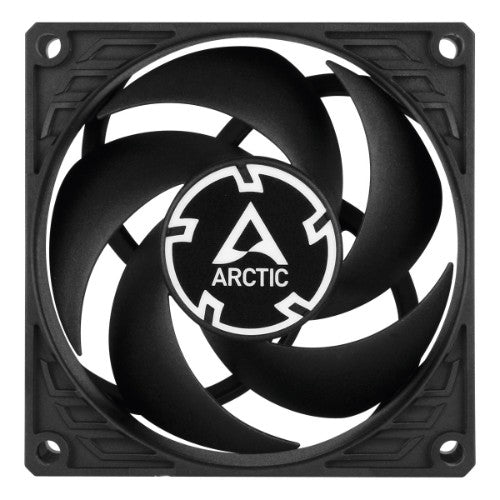

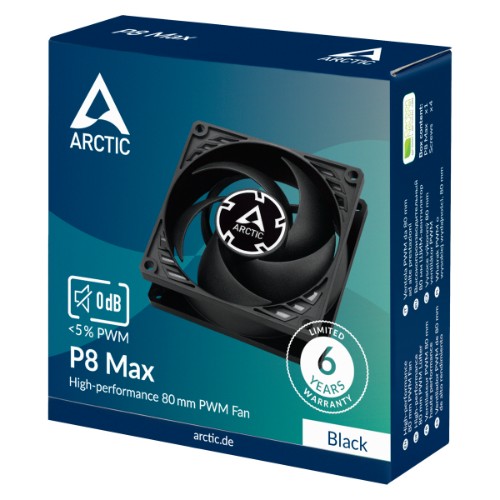

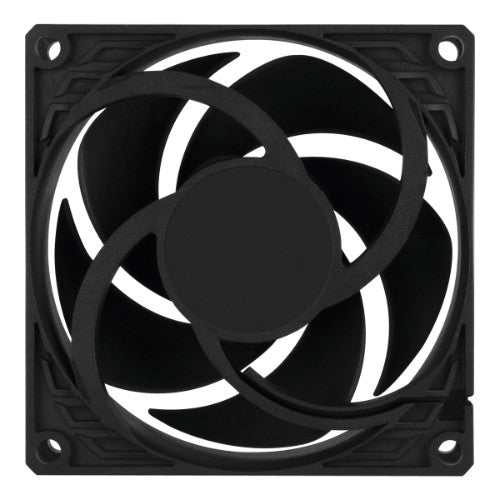

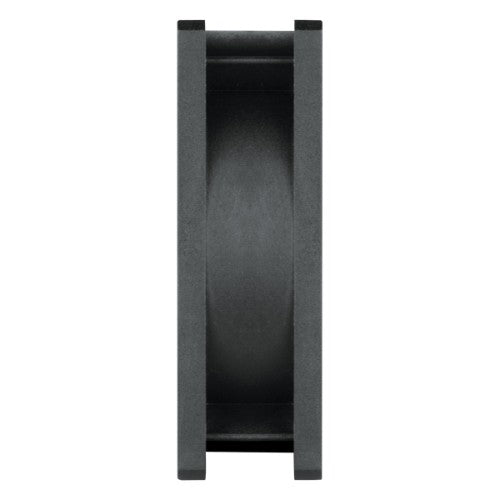

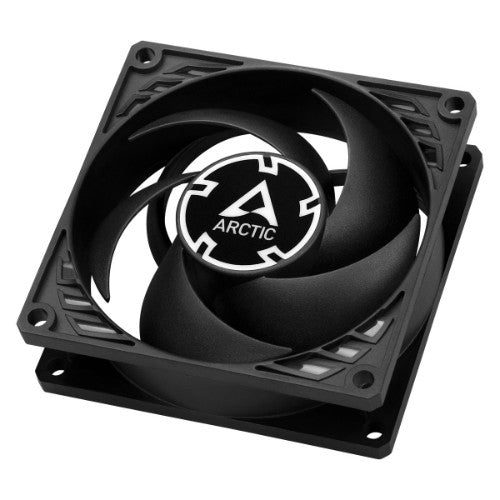

ARCTIC P8 Max - High-Performance 80 mm PWM Fan, Fan, 8 cm, 0.6 sone, 67.96 m³/h, Black

Reasons To Buy

Powerful Cooling

The P8 Max is a powerful fan with 500 to 5000 rpm.The fan delivers a static pressure of 5.3 mmH2O and generates an airflow of up to 40 cfm. It offers precise control of the fan speed via pulse width modulation (PWM) and is extremely efficient at 0.19 A. The P8 Max is ideal for 2U server racks, which often require a high airflow to effectively dissipate heat. In addition, it has a 0 dB mode for silent operation in IDLE.

Extremely Wide Speed Range

The P8 Max enables precise fan speed (500 to 5000 rpm) via pulse width modulation control, which can be adapted to the individual cooling requirements. The P8 Max enables silent operation when only a low airflow is required and provides a high performance level if needed.

Low Power Consumption

The P8 Max is distinguished by its extremely high efficiency. At a speed of 3000 rpm and a voltage of 12 volts, it requires only 0.669 watts, which corresponds to a current of 0.06 amps.

Optimised for High Static Pressure

The P8 Max delivers a focused airflow and guarantees a good airflow even with particularly high static pressure. Therefore, the P8 Max is also specially suitable for use on heat sinks, radiators, pinholes and filters.

Optimal for 2U Server Rack

Server cases such as 2U racks usually have a high component density, which means a high airflow is needed to effectively dissipate heat. A high static pressure capacity is therefore important to direct the airflow through the tight ducts inside the case. The P8 Max is ideal for 2U rack cases with 2-height units.

0 dB Mode - Zero rpm

The speed of the fan can be throttled down to a standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required. This enables the P8 Max to be extremely flexible in adjusting the speed to optimally regulate the airflow for every case.

Designed for Continuous Operation

The ball bearing of the Japanese manufacturer NMB ensures a particularly long service life. Compared to sleeve bearings, ball bearings produce a significantly higher bearing noise. Therefore, the P8 Max is the perfect choice if you want to ensure permanent operation at high speeds. For silent enthusiasts, we recommend models with sleeve bearings, such as the P8 PWM PST.

Quality You Can Rely On

To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how we can permanently improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality, but also in terms of durability. This is a certainty that we are happy to pass on to our customers, which is why we give a six years manufacturer's guarantee on the P8 Max.

Description

ARCTIC P8 Max - High-Performance 80 mm PWM Fan. Type: Fan, Fan diameter: 8 cm, Noise level: 0.6 sone, Airflow: 67.96 m³/h. Product colour: Black

Specifications

Performance
Suitable location	Computer case
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Noise level	0.6 sone
Type	Fan
Operating temperature (T-T)	0 - 40 °C
Fan diameter	8 cm
Maximum airflow	40 cfm
Airflow	67.96 m³/h
Rack capacity	2U
Number of fans	1 fan(s)
Quantity per pack	1 pc(s)
Number of fan blades	5
Fan bearing technology	Double ball bearing
Fan static pressure	5.3 mmH2O
Fan speed (min)	500 RPM
Fan speed (max)	5000 RPM
Fan's mean time to failure (MTTF)	500000 h
Design
Fan connector	4-pin
Rack capacity	2U
Number of fans	1 fan(s)
Product colour	Black
Cable length	0.4 m
Number of fan blades	5
Technical details
Type	Fan
Fan diameter	8 cm
Maximum airflow	40 cfm
Airflow	67.96 m³/h
Rack capacity	2U
Number of fans	1 fan(s)
Cable length	0.4 m
Fan connector	4-pin
Ports & interfaces
Fan connector	4-pin
Power
Starting voltage	3.2 V
Fan voltage	12 V
Fan current	0.19 A
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Colour
Product colour	Black
Weight & dimensions
Fan dimensions (W x D x H)	80 x 80 x 25 mm
Package depth	82.5 mm
Package width	82.5 mm
Package height	26 mm
Fan weight	84 g
Package weight	89 g
Cable length	0.4 m
Packaging data
Package depth	82.5 mm
Package width	82.5 mm
Package height	26 mm
Package weight	89 g
Packaging content
Screws included	Yes
Mounting kit	Yes
Other features
Country of origin	Hong Kong
