M32U 31.5" 4K UHD Arm Edition Gaming Monitor - 3840 x 2160, 144Hz, 1ms, 350 cd/m², FreeSync Premium Pro, Display HDR400, HDMI 2.1, Displayport 1.4

Key Features

• 31.5-inch SuperSpeed IPS panel with UHD resolution

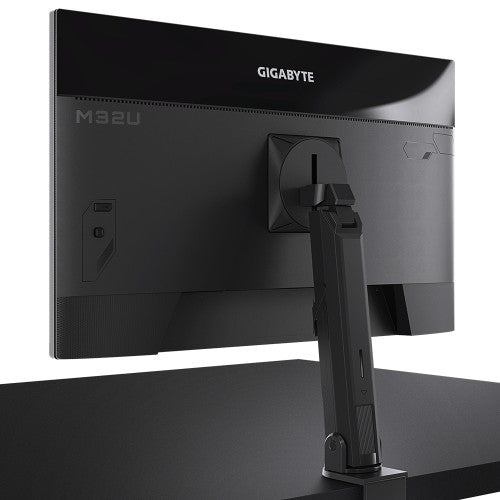

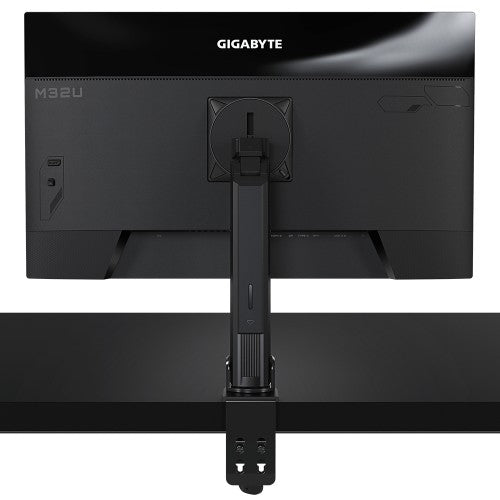

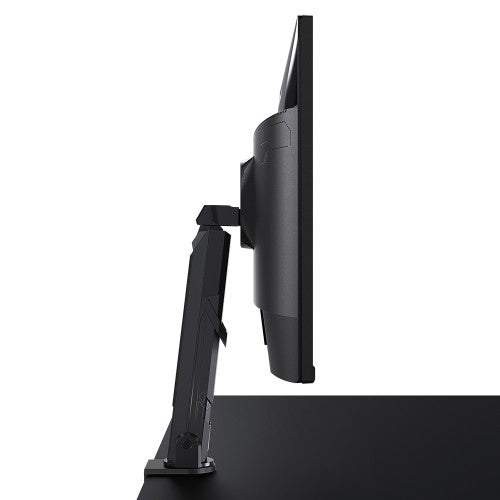

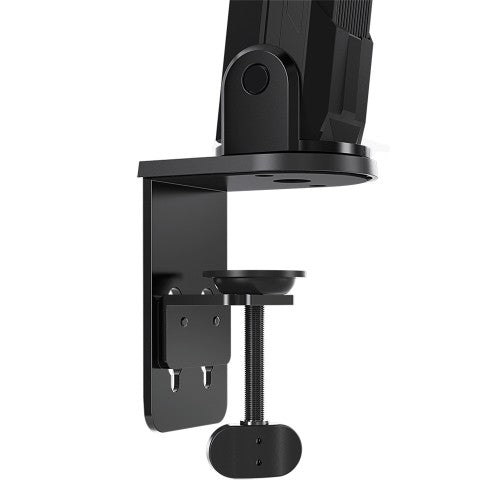

• Arm Edition: Height adjustments, swivel, pivot, tilt and forward extension
• 144Hz refresh rate, 1ms response time
• KVM cross-platform control
• Console gaming at 4K/ 120Hz via HDMI 2.1
• 10 bits, 90% DCI-P3
• Supports DisplayHDR400, AMD FreeSync Premium Pro

Description

As a 4K gaming monitor, GIGABYTE M32U Arm Edition introduces an ergonomic monitor arm that adapts to every desktop scenario. Equipped with the SuperSpeed IPS panel, this monitor delivers 144hz refresh rate at 1ms response time and presents color accuracy with 10-bit color depth plus 90% DCI-P3 wide color gamut.

Specifications

Audio
Built-in speaker(s)	Yes
RMS rated power	6 W
Performance
Built-in speaker(s)	Yes
RMS rated power	6 W
AMD FreeSync type	FreeSync Premium Pro
AMD FreeSync	No
NVIDIA G-SYNC	No
Flicker-free technology	Yes
HBR3 support	Yes
Display
Display brightness (typical)	350 cd/m²
Screen shape	Flat
Display number of colours	1.07 billion colours
Colour gamut	90%
Maximum refresh rate	144 Hz
sRGB coverage (typical)	103%
HD type	4K Ultra HD
Display technology	LED
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.181 x 0.181 mm
Viewable size, horizontal	69.7 cm
Viewable size, vertical	39.2 cm
Backlight type	Edge LED
Display resolution	3840 x 2160 pixels
Response time	1 ms
Display diagonal	80 cm (31.5")
Contrast ratio (typical)	1000:1
Touchscreen	No
High Dynamic Range (HDR) supported	Yes
Panel type	SS-IPS
Colour depth	10 bit
High Dynamic Range (HDR) technology	DisplayHDR 400
Colour gamut standard	DCI-P3
Management features
On Screen Display (OSD)	Yes
Multimedia
Number of speakers	2
Built-in speaker(s)	Yes
RMS rated power	6 W
Design
Market positioning	Gaming
Product colour	Black
Front bezel colour	Black

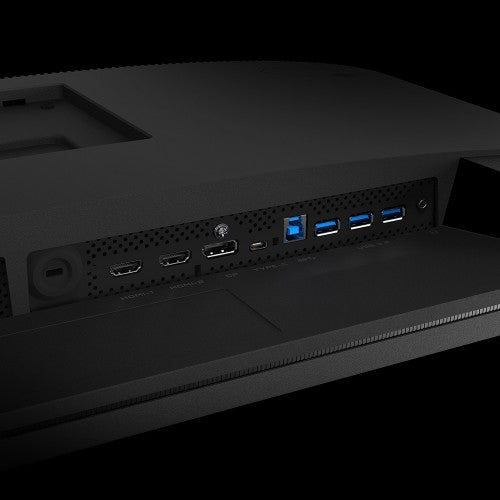

Ports & interfaces
Built-in USB hub	Yes
USB Type-A downstream ports quantity	3
Headphone out	Yes
HDMI ports quantity	2
DisplayPorts quantity	1
HDMI	Yes
HDMI version	2.1
DisplayPort version	1.4
Number of USB Type-C upstream ports quantity	1
Technical details
Height (without stand)	423 mm
Depth (without stand)	68.2 mm
Width (without stand)	715.8 mm
Cable lock slot	Yes
HDMI	Yes
Product colour	Black
Front bezel colour	Black
Weight (with stand)	10.5 kg
Touchscreen	No
Ergonomics
VESA mounting	Yes
Cable lock slot	Yes
Panel mounting interface	100 x 100 mm
Swivelling	Yes
Swivel angle range	-270 - 270°
Tilt angle range	-5 - 25°
Pivot	Yes
On Screen Display (OSD)	Yes
Pivot angle	0 - 90°
Height adjustment	Yes
Cable lock slot type	Kensington
Tilt adjustment	Yes
Adjustable height (max)	16.7 cm
Power
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	45.5 W
Power consumption (off)	0.3 W
Energy efficiency scale	A to G
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	33 kWh
Energy consumption (HDR) per 1000 hours	80 kWh
Weight & dimensions
Height (without stand)	423 mm
Depth (without stand)	68.2 mm
Width (without stand)	715.8 mm
Width (with stand)	715.3 mm
Depth (with stand)	221 mm
Height (with stand)	587.7 mm
Weight (with stand)	10.5 kg
Weight (without stand)	7.21 kg
Package width	990 mm
Package depth	192 mm
Package height	536 mm
Package weight	13.7 kg
Packaging data
Package width	990 mm
Package depth	192 mm
Package height	536 mm
Package weight	13.7 kg
Stand included	Yes
Quick start guide	Yes
Cables included	AC, DisplayPort, HDMI, USB
Packaging content
Stand included	Yes
Quick start guide	Yes
Cables included	AC, DisplayPort, HDMI, USB
Other features
HBR3 support	Yes
Height (without stand)	423 mm
Depth (without stand)	68.2 mm
Width (without stand)	715.8 mm
Quick start guide	Yes
HDMI	Yes
Energy efficiency scale	A to G
Touchscreen	No
Front bezel colour	Black
