USB 3.2 Gen2 Type-C, USB 3.2 Gen2 Type-A, HDMI, 144Hz, 3840x2160, 10Gbps, DP1.4, Black

Key Features

• 48g lightweight with cable
• 4K connectivity via HDMI
• Up to 100 W Power Delivery of USB-C
• Up to 7.5 W Output of USB-C
• Up to 10 Gbps data transfers of both USB Type-A and USB-C
• The coaxial cable provides 1.7x better coverage than traditional cables

Reasons To Buy

Small in Size. Big on Features.

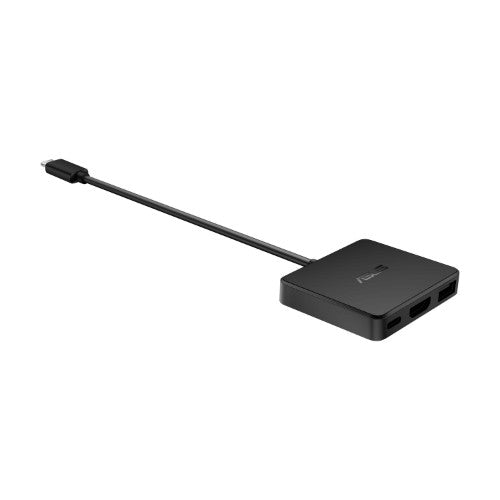

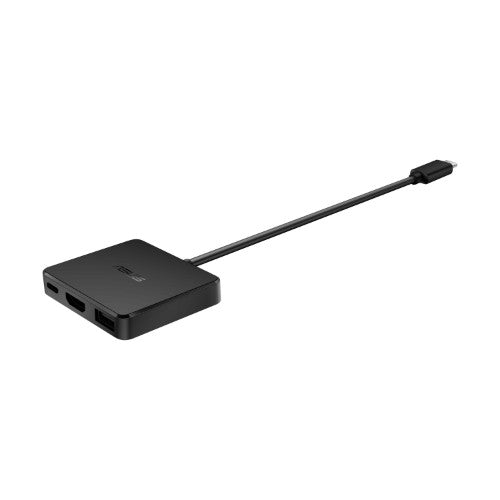

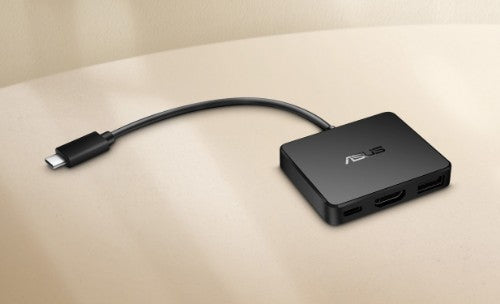

ASUS USB-C Mini Dock is a compact and lightweight USB-C® dock that gives PCs and laptops additional expandability options. It features a HDMI® with 4K output, USB Type-A and USB-C for up to 10 Gbps transfer speeds, plus up to 100 W power delivery passthrough.

Go-anywhere portability

ASUS USB-C Mini Dock has a slim 11.35 mm profile and weighs just 48 g, making it perfect for on-the-go productivity.

Fast data transfers and charging

ASUS USB-C Mini Dock features 100 W power delivery passthrough via USB-C® — that’s enough to rapidly charge the latest laptops. ASUS USB-C Mini Dock offers up to 10 Gbps data transfer speeds via USB Type-A and USB-C® — up to 4x faster than USB 3.0 — so transferring large files or folders takes just seconds. Users can also use the USB ports to charge mobile phones and other devices.

* Chart depicts expected transfer time for 4 GB of data. Real-world performance may vary.

Multitask on up to a 4K display

ASUS USB-C Mini Dock is able to support 2K video at 144 Hz, or up to a single 4K display, via HDMI to extend workspace for efficient multitasking.

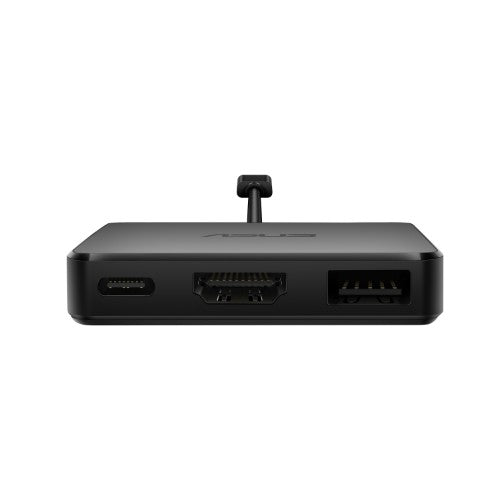

Wide-ranging compatibility

ASUS USB-C Mini Dock features an USB-C® port, USB Type-A port, and a HDMI port. Each I/O port has been tested to ensure product durability. Included overload force tests, durability tests, vibration tests, and operation at extremes of humidity, altitude and temperature.

Superior durability and stability

For improved strength and resilience ASUS USB-C Mini Dock has a connecting cable that’s shielded by an aluminum braid that provides up to 1.7x better coverage than standard cables. This minimizes the risk of signal attenuation, reducing interference by up to 60%, ensuring robust connections for any setup. The cable is also extremely durable, and has been lab-tested to withstand up to 10,000 bends and twists.

Description

Introducing the ASUS USB-C Mini Dock
Small in Size. Big on Features.

ASUS USB-C Mini Dock is a compact and lightweight USB-C® dock that gives PCs and laptops additional expandability options. It features a HDMI® with 4K output, USB Type-A and USB-C for up to 10 Gbps transfer speeds, plus up to 100 W power delivery passthrough.

Specifications

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity	0
HDMI ports quantity	1
HDMI version	2.0
Microphone in	No
Headphone outputs	0
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	100 W
Network
Ethernet LAN	No
Performance
Maximum digital resolution	3840 x 2160 pixels
Number of displays supported	2
Product colour	Black
Card reader integrated	No
Data transfer rate	10 Gbit/s
HD type	4K Ultra HD
Housing material	Plastic
Maximum refresh rate	144 Hz
Technical details
Product colour	Black
Data transfer rate	10 Gbit/s
Storage
Card reader integrated	No
Power
Power source type	USB
USB cable length	0.15 m
Software
Windows operating systems supported	Windows 10, Windows 11
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-30 - 70 °C
Operating relative humidity (H-H)	20 - 85%
Storage relative humidity (H-H)	20 - 85%
Weight & dimensions
Weight	48 g
Width	59 mm
Depth	48 mm
Height	11.3 mm
Design
Windows operating systems supported	Windows 10, Windows 11
Product colour	Black
Packaging data
Quantity per pack	1 pc(s)
Packaging content
Quantity per pack	1 pc(s)
