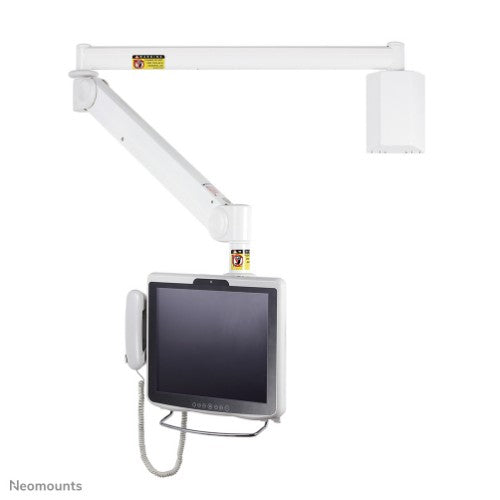

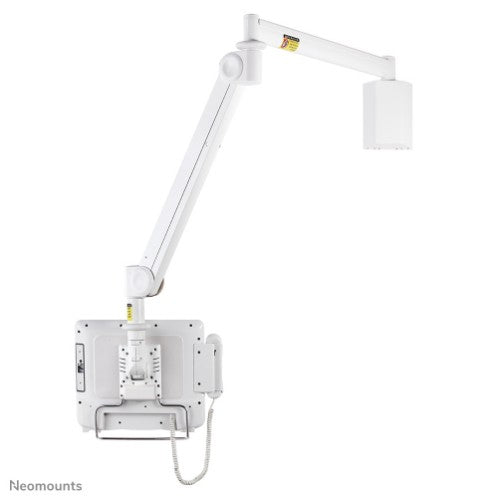

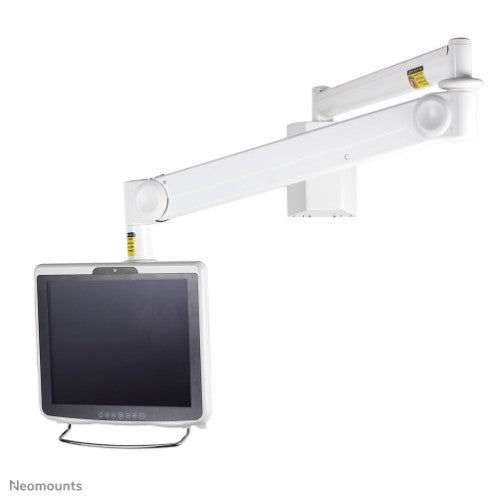

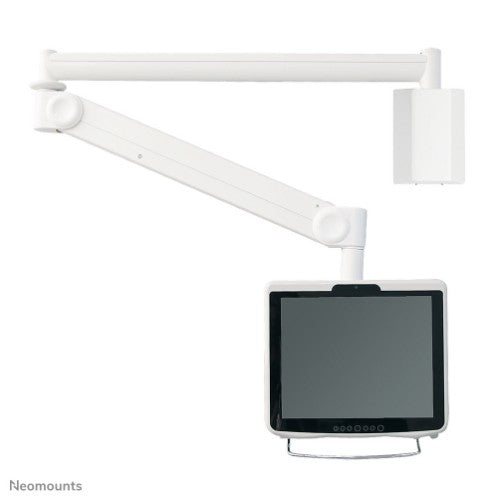

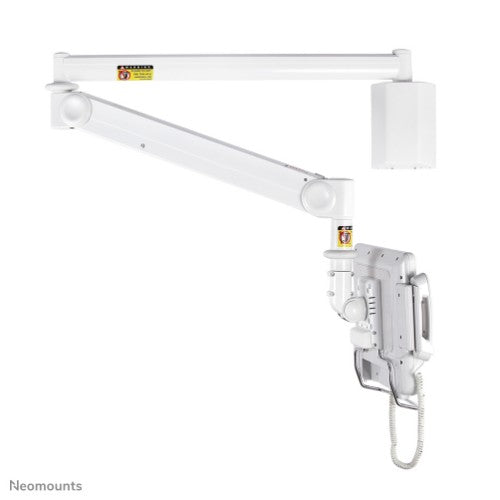

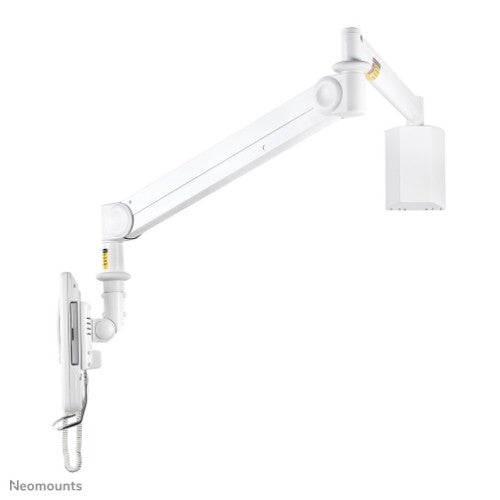

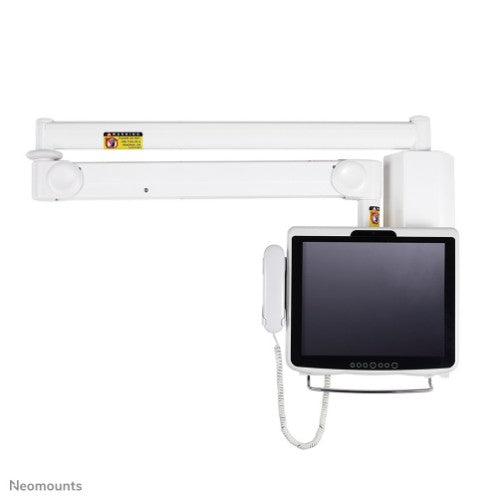

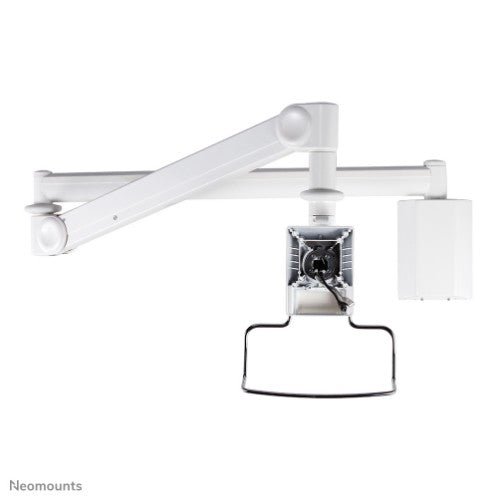

Neomounts FPMA-HAW100HC Medical monitor arm wall - 10-32" - h 0-170 cm - 6-12 kg - VESA 75x75-100x100 - gas spring - white

Description

The Neomounts wall mount, model FPMA-HAW100HC is a tilt- and swivel wall mount for medical flat screens up to 32". This mount is a great choice for space saving placement or when ceiling mounting and floor placement is not an option.

Neomounts' unique tilt (55°) and swivel (370°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 0 to 170 centimetres using a gas spring. Depth adjustable from 0 to 170 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

Neomounts FPMA-HAW100HC has two pivot points and is suitable for screens up to 32" (81 cm). The weight capacity of this product is 6 - 12 kg each screen. The ceiling mount is suitable for screens that meetVESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.

All installation material is included with the product.

Specifications

Mounting
Maximum weight capacity (per display)	12 kg
Minimum screen size	25.4 cm (10")
Panel mounting interface	75 x 75 mm
Number of displays supported	1
Mounting type	Wall
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Distance to the wall (max)	170 cm
Maximum weight capacity	12 kg
Maximum screen size	81.3 cm (32")
Ergonomics
Cable management	Yes
Depth adjustment range	0 - 1870 mm
Height adjustment	Yes
Height adjustment range	0 - 1700 mm
Swivel angle range	0 - 270°
Swivel angle	370°
Tilt angle range	0 - 55°
Number of pivot points	3
Height adjustment type	Gas spring
Rotating	Yes
Tilt adjustment	Yes
Swivelling	Yes
Design
Product colour	White
Housing material	Aluminium
Technical details
Number of pivot points	3
Mounting type	Wall
Minimum weight	6 kg
Distance to the wall (max)	170 cm
Product colour	White
Cable management	Yes
Weight & dimensions
Depth	1870 mm
Height	1700 mm
Weight	17.8 kg
Package width	1010 mm
Package depth	300 mm
Package height	400 mm
Package weight	14.2 kg
Package net weight	14.2 kg
Packaging data
Package width	1010 mm
Package depth	300 mm
Package height	400 mm
Package weight	14.2 kg
Package net weight	14.2 kg
Other features
Minimum weight	6 kg
Mounting type	Wall
Country of origin	Taiwan
Logistics data
Master (outer) case width	1010 mm
Master (outer) case length	300 mm
Master (outer) case height	400 mm
Master (outer) case gross weight	18.5 kg
Products per master (outer) case	1 pc(s)
Country of origin	Taiwan
Products per pallet (EU)	8 pc(s)
Master (outer) case net weight	14.2 kg
Harmonized System (HS) code	83025000
