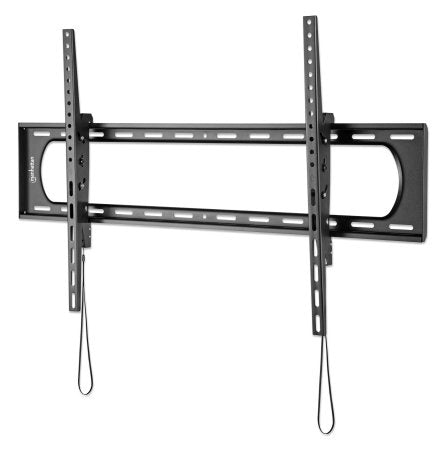

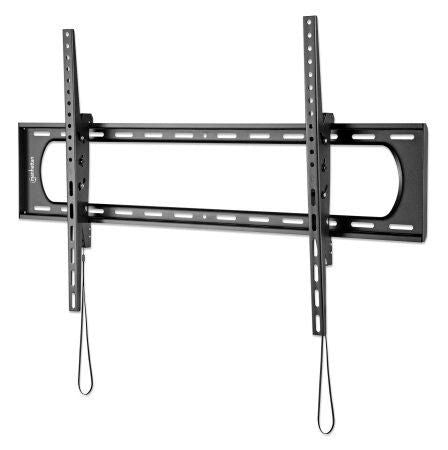

Wall Mount for TV & Monitors (Tilt), For screens: 60" to 120", VESA compatability: all between 50x50 to 900x600mm - check the dimensions of the four mounting holes on back of screen to ensure it fits, Max 120kg, Black, LFD, Bracket

Key Features

• Supports one flat or curved 60" to 120" TV up to 120 kg (264 lbs.)

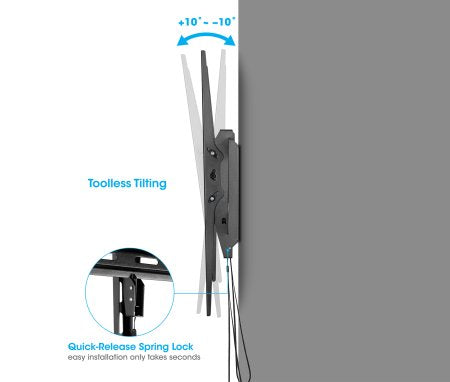

• Optimized views with +10° to -10° tilt and tool-free adjustment
• Ultra heavy-duty construction with 2 mm thick reinforced steel and powder coating
• Includes attachable bubble level

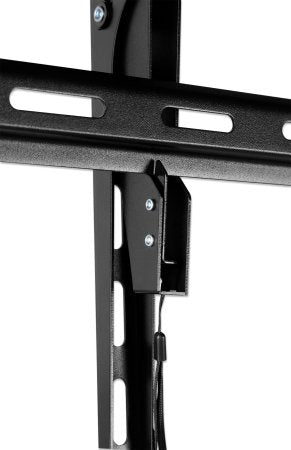

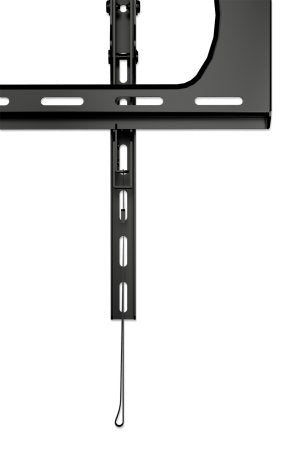

• Snap-in spring locks with release cords for easy installation or removal and additional safety
• Holds TV 80 mm (3.15 in.) from wall
• Meets VESA standards: 50x50, 75x75, 100x100, 100x150, 150x100, 100x200, 200x100, 150x150, 200x200, 200x300, 300x200, 200x400, 400x200, 300x300, 300x400, 400x300, 600x200, 400x400, 600x300, 400x600, 600x400, 700x400, 800x400, 600x600, 800x500, 800x600, 900x600

Description

Ultra Heavy-Duty XXL Tilting TV Wall Bracket - adjustable mounting bracket that puts big-screen TVs in the right perspective and avoids annoying glare
This tilting TV Wall Mount from Manhattan safely holds your TV and offers a toolless -10 to 10° tilt adjustment for optimized views. Constructed of 2 mm thick reinforced powder-coated steel, this sturdy TV bracket fits flat and curved LCD, OLED or plasma TVs up to 120" and weighing up to 120 kg (264 lbs.) with VESA compliance up to 900x600. You're all set for a confident above-the-floor installation with an included bubble level that helps get the mount perfectly horizontal on the wall, and intuitive snap-in spring locks with release cords let you easily and securely put the TV in place. It's ideal for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.

Specifications

Mounting
Mounting type	Wall
Minimum screen size	152.4 cm (60")
Panel mounting interface	50 x 50,75 x 75,100 x 100,100 x 150,100 x 200,150 x 100,150 x 150,200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 400,400 x 200,400 x 400,400 x 300,400 x 600,600 x 200,600 x 300,600 x 400,600 x 600,700 x 400,800 x 400,800 x 500,800 x 600,900 x 600,1050 x 500,1100 x 100,1100 x 200,1200 x 400,1600 x 600
Minimum VESA mount	50 x 50 mm
Maximum VESA mount	900 x 600 mm
Maximum screen size	3.05 m (120")
Maximum weight capacity	120 kg
Ergonomics
Tilt angle range	-10 - 10°
Tilt adjustment	Yes
Technical details
Product colour	Black
Mounting type	Wall
Orientation	Landscape
Design
Product colour	Black
Housing material	Steel
Packaging content
Manual	Yes
Weight & dimensions
Width	1005 mm
Height	80 mm
Weight	4.29 kg
Depth (max)	60.2 cm
Packaging data
Package weight	4.86 kg
Quantity per pack	1 pair(s)
Manual	Yes
Other features
Mounting type	Wall
