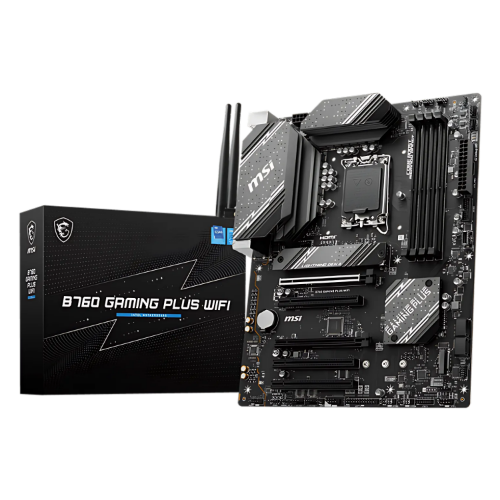

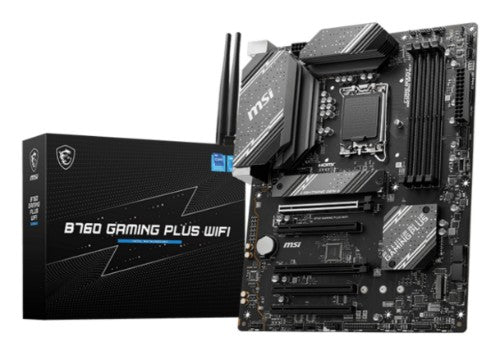

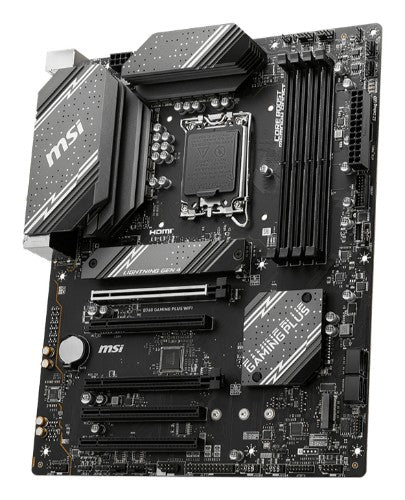

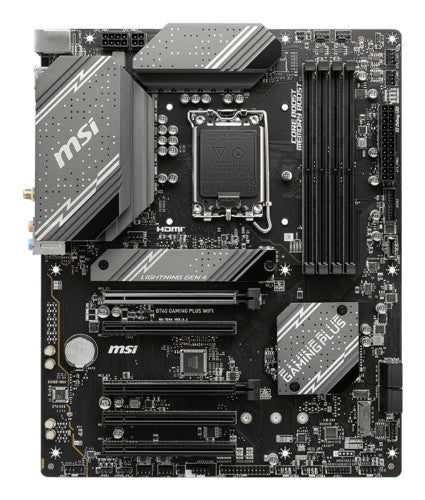

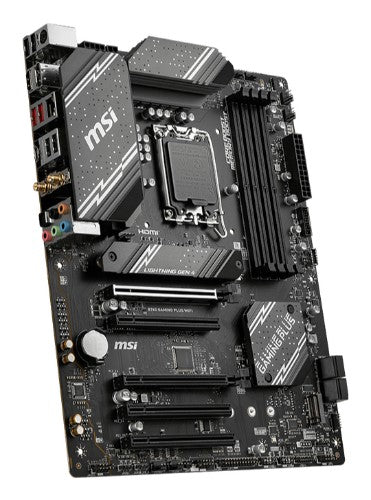

INTEL B760, DDR5 max 192GB, CPU Socket LGA 1700, 2x PCIe 4.0 x16, 3x PCIe 3.0 x1, HDMI 2.1, DisplayPort 1.4, M.2 Gen4, SATA 6Gbps, 2.5Gbps LAN, Wi-Fi 6E, Bluetooth 5.3

Description

B760 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want all.

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

M.2 Shield Frozr
Strengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.

Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.

Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.

12+1+1 DUET RAIL POWER SYSTEM
Unleash and sustain the maximum performance with a VRM design built with a total of 12+1+1 power design. Combining dual power connectors and exclusive Core Boost technology, B760 GAMING PLUS WIFI is ready to sustain heavy daily work.

EZ M.2 CLIP
Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly.

MSI DRIVER UTILITY INSTALLER
Once connected to the internet, MSI Driver Utility Installer will detect and present suitable drivers and utilities automatically, you can download and install with just a few clicks.

FAST AND FUTURE-READY STORAGE
B760 GAMING PLUS WIFI motherboard supports all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

LATEST DDR5 MEMORY WITH SMT SLOT
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, B760 GAMING PLUS WIFI motherboards are ready to deliver the world class memory performance.

CLICK BIOS 5
Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!

MSI CENTER
MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

EXCLUSIVE UI OF AIDA64 EXTREME
MSI motherboards provide 60 days free trial of AIDA64 Extreme - MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.

OPT-IN TO CYBER SAFETY WITH NORTON 360 DELUXE
Multiple layers of protection for your devices, online privacy features including our Secure VPN, plus Dark Web Monitoring - all in a single solution. With MSI motherboards, you can enjoy a 60-day free trial of Norton 360 Deluxe.

RESIZABLE BAR
Resizable BAR (Re-Size BAR) is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once and improve performance.

EXTEND YOUR RGB EXPERIENCE WITH EASE
Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.

Specifications

Internal I/O
Number of M.2 (M) slots	2
Supported storage drive interfaces	M.2, SATA
USB 2.0 connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	3
mSATA ports quantity	0
TPM connector	Yes
S/PDIF out connector	Yes
Number of SATA connectors	0
Number of SATA III connectors	4
Number of SATA II connectors	0
Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel B760
On-board graphics card	No
HDMI version	2.1
Motherboard form factor	ATX
Component for	PC
Audio
Audio output channels	7.1 channels
Performance
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Motherboard chipset family	Intel
Motherboard chipset	Intel B760
RAID levels	0, 1, 5, 10
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Processor
Processor manufacturer	Intel
Compatible processor series	Intel® Celeron®, Intel® Pentium® Gold
Processor socket	LGA 1700
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR5-SDRAM
Memory channels	Dual-channel
Maximum internal memory	192 GB
ECC сompatibility	Non-ECC
Storage controllers
Supported storage drive interfaces	M.2, SATA
RAID levels	0, 1, 5, 10
RAID support	Yes
Graphics
On-board graphics card	No

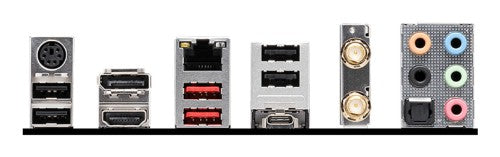

Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
DisplayPort version	1.4
USB 2.0 ports quantity	4
S/PDIF out port	Yes
HDMI version	2.1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	Yes
LAN controller	Dragon RTL8125BG
Ethernet interface type	2.5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.3
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Features
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Motherboard chipset family	Intel
Motherboard chipset	Intel B760
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Audio chip	Realtek ALC897
Product colour	Black
Expansion slots
Number of M.2 (M) slots	2
PCI Express x1 (Gen 3.x) slots	3
PCI Express x16 slots	2
PCI Express x1 slots	3
PCI Express x16 (Gen 4.x) slots	2
Software
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Weight & dimensions
Width	243.8 mm
Depth	304.8 mm
Other features
mSATA ports quantity	0
