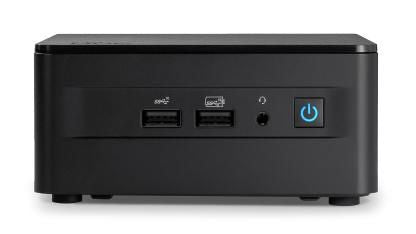

Intel NUC 13 Pro Kit (NUC13ANHi3), no cord, single unit

Description

Intel® Virtualization Technology for Directed I/O (VT-d)
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.

Intel® Virtualization Technology (VT-x)
Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.

Intel® AES New Instructions
Intel® AES New Instructions (Intel® AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, authentication, random number generation, and authenticated encryption.

Intel® ME Firmware Version
Intel® Management Engine Firmware (Intel® ME FW) uses built-in platform capabilities and management and security applications to remotely manage networked computing assets out-of-band.

Max Turbo Frequency
Max Turbo Frequency is the maximum single-core frequency at which the processor is capable of operating using Intel® Turbo Boost Technology and, if present, Intel® Turbo Boost Max Technology 3.0 and Intel® Thermal Velocity Boost. Frequency is typically measured in gigahertz (GHz), or billion cycles per second.

Intel® HD Audio Technology
Intel® High Definition Audio (Intel® HD Audio) is capable of playing back more channels at higher quality than previous integrated audio formats. In addition, Intel® HD Audio has the technology needed to support the latest and greatest audio content.

Integrated Graphics
Integrated graphics allow for incredible visual quality, faster graphic performance and flexible display options without the need for a separate graphics card.

Intel® Optane™ Memory Supported
Intel® Optane™ memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness. When combined with the Intel® Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage. Intel® Optane™ memory requires specific hardware and software configuration.

Intel® Platform Trust Technology (Intel® PTT)
Intel® Platform Trust Technology (Intel® PTT) is a platform functionality for credential storage and key management used by Windows 8* and Windows® 10. Intel® PTT supports BitLocker* for hard drive encryption and supports all Microsoft requirements for firmware Trusted Platform Module (fTPM) 2.0.

Specifications

Motherboard
Motherboard form factor	UCFF
Processor
Built-in processor	Yes
Processor model	i3-1315U
Processor boost frequency	4.5 GHz
Processor threads	8
Processor cores	6
Processor family	Intel® Core™ i3
Processor manufacturer	Intel
Processor codename	Raptor Lake
CPU configuration (max)	1
Processor cache	10 MB
Performance cores	2
Efficient cores	4
Performance-core boost frequency	4.5 GHz
Efficient-core boost frequency	3.3 GHz
Processor generation	Intel Core i3-13xxx
Memory
Memory voltage	1.2 V
Memory slots type	SO-DIMM
Number of memory slots	2
Memory channels	Dual-channel
ECC	No
Supported memory types	DDR4-SDRAM
Supported memory clock speeds	3200 MHz
Maximum internal memory	64 GB
Non-ECC	Yes
Number of DIMM slots	2
Video
On-board graphics card	No
Graphics card family	Intel
Storage
Supported storage drive types	SSD
Storage drive sizes supported	M.2,2.5
Storage drive interface	PCI Express, Serial ATA III
Number of storage drives supported	3
SSD form factor	M.2
NVMe	Yes
Graphics
Maximum resolution	7680 x 4320 pixels
Number of displays supported	4
On-board graphics card	No
Graphics card family	Intel
On-board graphics card model	Intel® UHD Graphics
Audio
Intel® High Definition Audio (Intel® HD Audio)	Yes
Built-in speaker(s)	No
Network
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Bluetooth version	5.3
Bluetooth	Yes
Ethernet LAN	Yes
Wi-Fi	Yes
LAN controller	Intel I226-V
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Ports & interfaces
Thunderbolt ports quantity	2
Serial port via internal header	No
Combo headphone/mic port	Yes
Number of SATA III connectors	1
DC-in jack	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
HDMI version	2.1
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
USB 2.0 ports quantity	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
M.2 card slot (wireless)	2230 (E-key) (E)
USB ports quantity	4
M.2 card slot (storage)	2280 NVMe (M); 2242 SATA (B)
Thunderbolt 4 ports quantity	2
Expansion slots
PCI Express slots version	4.0
Number of M.2 (M) slots	1
Design
Motherboard form factor	UCFF
Product type	Mini PC barebone
ARK ID	233096
On/off switch	Yes
LED indicators	Yes
Cooling type	Active
Product colour	Black
Chassis type	UCFF
Product family	Intel NUC
Product codename	Arena Canyon
Status	Launched
Performance
Motherboard form factor	UCFF
Maximum resolution	7680 x 4320 pixels
Windows operating systems supported	Windows 10 IoT Enterprise, Windows 11 x64
Linux operating systems supported	RedHat EL Linux, Yes
Number of displays supported	4
Operating system installed	No
Compatible operating systems	Windows 10 IoT Enterprise*|Ubuntu*|Linux*
Commodity Classification Automated Tracking System (CCATS)	G157815L2
Harmonized System (HS) code	8471500150
Export Control Classification Number (ECCN)	5A992C
Processor special features
Intel ME Firmware Version	16.1
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Trusted Execution Technology	Yes
Intel Flex Memory Access	Yes
Execute Disable Bit	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Optane™ Memory Ready	No
Intel® High Definition Audio (Intel® HD Audio)	Yes
Embedded options available	No
Intel® Platform Trust Technology (Intel® PTT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Colour
Product colour	Black
Power
DC input voltage	12 - 20 V
Power supply type	External AC adapter
Technical details
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® High Definition Audio (Intel® HD Audio)	Yes
Embedded options available	No
Processor cores	6
Cooling type	Active
Chassis type	UCFF
ARK ID	233096
Internal I/O
Number of SATA connectors	1
Packaging data
Power cord included	Yes
Indication
LED indicators	Yes
Software
Windows operating systems supported	Windows 10 IoT Enterprise, Windows 11 x64
Linux operating systems supported	RedHat EL Linux, Yes
Operating system installed	No
Compatible operating systems	Windows 10 IoT Enterprise*|Ubuntu*|Linux*
Management features
On/off switch	Yes
Features
Number of displays supported	4
Logistics data
Harmonized System (HS) code	8471500150
Weight & dimensions
Width	117 mm
Depth	112 mm
Height	54 mm
Packaging content
Power cord included	Yes
Other features
DC input voltage	12 - 20 V
Embedded options available	No
Number of SATA connectors	1
HDD size	2.5"
Chassis type	UCFF
Additional headers	Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector
Launch date	Q1'23
