StarTech.com USB-C Triple Monitor Docking Station - HDMI/DP Triple 4k USB C Dock - 5x USB Hub - GbE - 100W PD - Universal Multi Monitor Docking Station - Thunderbolt 3/4 Compatible (116U-USBC-DOCK)

Key Features

• HIGH-PERFORMANCE TRIPLE 4K VIDEO: USB C Multi Monitor Docking Station features flexible video outputs that enable you to connect two 4K 60Hz HDMI 2.0 and/or DisplayPort 1.2 (DP++) monitors via DisplayLink and a 3rd 4K 30Hz HDMI monitor via DP 1.2 Alt Mode
• UNIVERSAL COMPATIBILITY: Compatible with Windows, macOS, ChromeOS & Ubuntu, enabling extended triple displays on USB-C & Thunderbolt 3 and 4 laptops including Apple M1/M2 MacBooks which are not natively capable of driving more than one external display
• FULL FEATURE DOCK: 5-Port USB Hub with 3x USB-A (2x 5Gbps, 1x 10Gbps w/BC 1.2 charging) and 2x USB-C (1x 10Gbps w/BC 1.2, 1x 5Gbps) - 100W USB PD - 3.5mm Headset/Audio port and Gigabit Ethernet (WoL) - K Slot - OCP protects devices from power surges
• 100W POWER DELIVERY 3.0: Power and charge USB-C and Thunderbolt 3/4 laptops and ultrabooks including Lenovo X1/Thinkpad P Series, Dell Latitudes/Precision,/XPS 15, HP Envy, Surface Laptop 3 and MacBook - Incl. 3.3ft/1m USB-IF Certified USB-C host cable
• CONNECTIVITY TOOLS: Optimize the performance and security of this universal docking station, using the included MAC Address Changer, USB Event Monitoring, Windows Layout and Wi-Fi Auto Switch utilities (available for download)

Description

USB-C Dock | 5-Port USB 3.2 Gen 2 10Gbps/5Gbps Hub | Dual 4K 60HZ HDMI and/or DisplayPort | 4K 30Hz HDMI via DP Alt Mode | 100W Power Delivery

This USB-C Triple 4K Monitor Docking Station enables wide workstation flexibility, featuring compatibility with USB-C, or Thunderbolt 3/Thunderbolt 4 laptops, and supporting multiple combinations of Ultra HD 4K DisplayPort and HDMI monitors.

Enhance Productivity with Triple-4K Video

This triple-4K docking station uses a combination of its integrated DisplayLink® graphics controller and your computer's DP Alt Mode enabled USB-C port to provide three independent 4K displays.

Connect any combination of HDMI and/or DisplayPort monitors to Video Ports 1 and 2 (DisplayLink®); at resolutions up to 4K at 60Hz. Connect an HDMI monitor to Video Port 3 (DP Alt-Mode), at resolutions up to 4K at 30Hz. This high-resolution video performance is ideal for detailed graphics applications, enhancing your productivity by expanding the display capabilities of your laptop.

Full-Featured Docking Station

Connect the docking station to your computer's USB 3.2 Gen 2 (10Gbps) Type-C port to provide a wide range of port connectivity, options and features. The docking station features:

• 2x USB-A and 1x USB-C (USB 3.2 Gen 1 5Gbps) ports for USB peripheral devices.
• 1x USB-A and 1x USB-C (USB 3.2 Gen 2 10Gbps) port that supports BC 1.2 with 7.5W (1.5A) for charging tablets and smartphones.
• 1x Gigabit Ethernet port with WoL (Wake-on-LAN) for a wired Local Area Network (LAN) connection.
• 1x 3.5mm 4-position TRRS Audio Jack for a 3.5mm headset.

100W USB Power Delivery

The USB-C docking station supports 100W USB Power Delivery with the included power adapter. This allows you to charge the connected host device, as well as the devices connected to the BC 1.2 USB charging ports.

For added protection to connected USB devices, the BC 1.2 enabled USB charging ports feature Overcurrent Protection (OCP). OCP prevents USB peripherals from drawing more power than is safely allocated for the port.

Easy Deployment

Connect the dock to your host computer, using the included 3.3ft (1m) USB-C cable. The docking station supports all major operating systems, including Windows, macOS, ChromeOS, and Ubuntu. This dock was designed for seamless integration with any compatible USB-C equipped device within your organization, including Lenovo X1/Thinkpad P Series, Dell Latitudes/Precision/XPS 15, HP Envy, Surface Laptop 3, and M1 Pro/Max/M2 MacBooks. The dock features a side-facing K-Slot for added security in shared workspaces (e.g., BYOD hoteling/hot-desking).

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

•

Advanced Windows Layout Utility : Setup and save custom windows layouts.

•

Mac Address Pass-Through Utility : Improve network security.

•

USB Event Monitoring Utility : Track and log connected USB devices.

•

Wi-Fi Auto Switch Utility : Enable users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

This product is backed for 3-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.

The StarTech.com Advantage

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Headphone connectivity	3.5 mm
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	3
HDMI version	2.0
DisplayPorts quantity	2
Headphone outputs	1
DC-in jack	Yes
Connectivity technology	Wired
USB Power Delivery	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
DisplayPort version	1.4
USB Type-C DisplayPort Alternate Mode	Yes
Network
Networking standards	IEEE 802.3ab
Wake-on-LAN ready	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Performance
Maximum digital resolution	4096 x 2160 pixels
Product colour	Grey
Card reader integrated	No
Cable lock slot	Yes
LED indicators	Power
Data transfer rate	10 Gbit/s
Cable lock slot type	Kensington
HD type	4K Ultra HD
Housing material	Plastic
Maximum refresh rate	60 Hz
Technical details
Product colour	Grey
Cable lock slot	Yes
Data transfer rate	10 Gbit/s
Sustainability compliance	Yes
Compliance certificates	CE
Products per master (outer) case	10 pc(s)
Master (outer) case width	280 mm
Master (outer) case length	430 mm
Master (outer) case height	290 mm
Storage
Card reader integrated	No
Power
Power source type	DC
Input current	2.5 A
Power plug type	Type M
AC input voltage	100 - 240 V
Power consumption (typical)	15 W
Output voltage	24 V
Output current	5.41 A
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Linux operating systems supported	Yes
Other operating systems supported	ChromeOS
Mobile operating systems supported	Android
Indication
LED indicators	Power
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	0 - 85%
Sustainability
Sustainability compliance	Yes
Weight & dimensions
Weight	350 g
Width	85 mm
Depth	190 mm
Height	30 mm
Package weight	1.1 kg
Package width	205 mm
Package depth	250 mm
Package height	50 mm
Design
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Product colour	Grey
Cable lock slot	Yes
LED indicators	Power
Cable lock slot type	Kensington
Packaging data
Package weight	1.1 kg
Package width	205 mm
Package depth	250 mm
Package height	50 mm

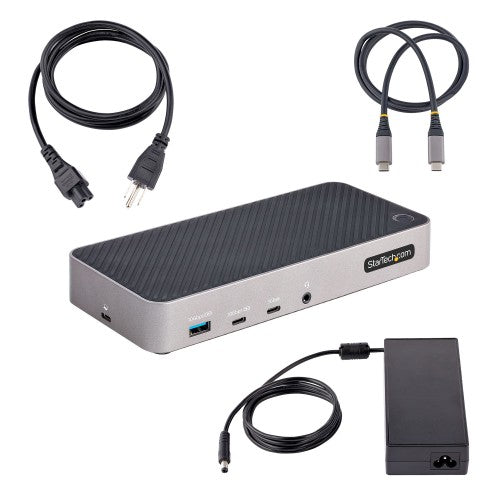

Packaging content
Quick start guide	Yes
Cables included	USB Type-C to USB Type-C
AC adapter included	Yes
Logistics data
Products per master (outer) case	10 pc(s)
Master (outer) case width	280 mm
Master (outer) case length	430 mm
Master (outer) case height	290 mm
Other features
Chipset	DisplayLink - DL-6950-N, VIA - VL817C0, Parade - PS176C0
