LGA 1700, Intel B760, 4x DDR4, 1x HDMI, 1x DisplayPort, 4x SATA, Wi-Fi, mATX

Key Features

• Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
• Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC)
• Core Boost : With premium layout and digital power design to support more cores and provide better performance
• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
• Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

Description

BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.

CONTROL IN ONE CLICK
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.

FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

AUTO DETECT YOUR FAN
MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.

LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.

REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

Specifications

Internal I/O
Number of M.2 (M) slots	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Front panel connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
mSATA ports quantity	0
TPM connector	Yes
Number of SATA connectors	0
Number of SATA III connectors	4
Number of SATA II connectors	0
Front panel audio connector	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel B760
Supported processor sockets	LGA 1700
On-board graphics card	No
HDMI version	1.4
Motherboard form factor	micro ATX
Component for	PC
Audio
Audio output channels	7.1 channels
Performance
Windows operating systems supported	Windows 10, Windows 11
Motherboard chipset family	Intel
Motherboard chipset	Intel B760
RAID levels	0, 1, 5, 10
Supported processor sockets	LGA 1700
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Processor
Processor manufacturer	Intel
Compatible processor series	Intel® Celeron®, Intel® Pentium® Gold
Supported processor sockets	LGA 1700
Maximum number of SMP processors	1
Processor socket	LGA 1700
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
Supported memory clock speeds	4800, 4600, 4400, 4266, 4200, 4000, 3800, 3733, 3600, 3466, 3400, 3333, 3200, 2933, 2666, 2400, 2133 MHz
Maximum internal memory	128 GB
Supported memory clock speed (max)	4800 MHz
ECC сompatibility	Non-ECC
Storage controllers
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 5, 10
RAID support	Yes
Graphics
On-board graphics card	No

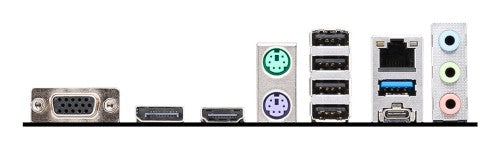

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
DisplayPort version	1.4
USB 2.0 ports quantity	4
VGA (D-Sub) ports quantity	0
HDMI version	1.4
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI-D ports quantity	0
DisplayPorts quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	No
Ethernet interface type	2.5 Gigabit Ethernet
Features
Power source type	ATX
Windows operating systems supported	Windows 10, Windows 11
Motherboard chipset family	Intel
Motherboard chipset	Intel B760
Supported processor sockets	LGA 1700
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Audio chip	Realtek ALC897
Product colour	Black
Expansion slots
Number of M.2 (M) slots	2
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 slots	2
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
System Management BIOS (SMBIOS) version	3.5
Power
Power source type	ATX
Software
Windows operating systems supported	Windows 10, Windows 11
Weight & dimensions
Width	243.8 mm
Depth	243.8 mm
Other features
mSATA ports quantity	0
