240 mm, RGB, 500 - 1800 RPM, 4-pin PWM, White

Key Features

• Pump features an embedded 1.54” square LCD screen to display real-time system info or custom images
• Adjustable screen orientation accommodates pump head position
• Powerful Asetek pump provides optimal cooling and up to 2,800 RPM whisper-quiet operation
• Includes high-performance PWM fans with fluid dynamic bearings for optimal cooling
• Includes F140/F120 RGB Core fans
• Single breakout cable simplifies installation
• Rubber tubing is reinforced with nylon-braided sleeves to prevent leaks
• Control custom screen content, RGB, pump speed, and zero-noise fan curves with NZXT CAM software

Description

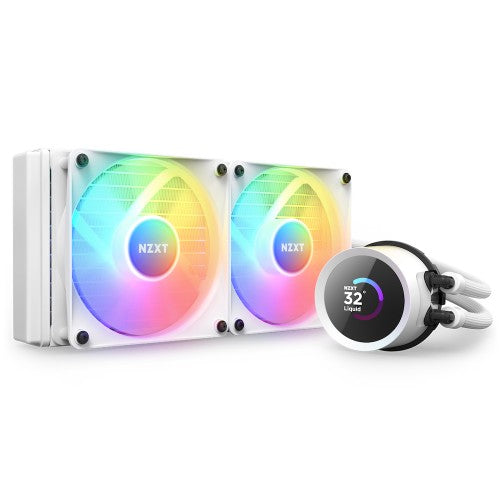

Kraken 240 RGB
240mm AIO Liquid Cooler with LCD Display and RGB Fans

The Kraken delivers chillingly cool performance, an easy install, and a display screen for system specs or custom images.

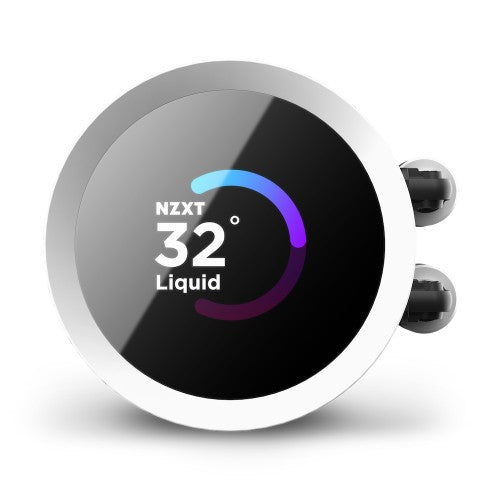

LCD Display
1.54" square LCD display with 240x240 resolution, 30 Hz refresh rate, and high brightness

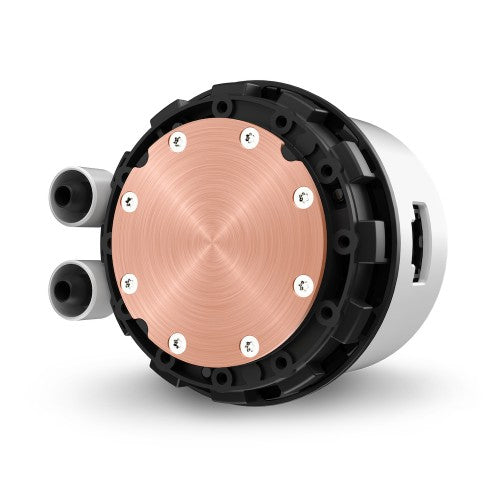

High-Performance Pump
The powerful Asetek pump circulates coolant efficiently and quietly.

Colorful Cooling
RGB Core Fans with fluid dynamic bearings provide powerful cooling and vivid RGB lighting.

Installation Made Easy
- A single breakout cable from pump to motherboard streamlines installation.
- Includes compatible mounting brackets for Intel (LGA 1700/1200/115X) and AMD processors (AM4, AM5).
- Pre-applied NZXT High-Performance Thermal Paste.

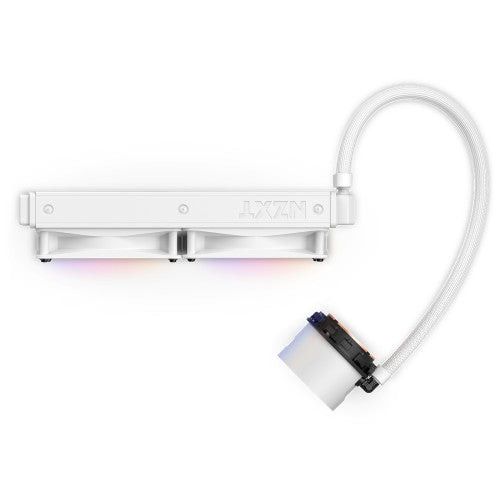

- Extended rubber tubing with durable nylon-braided sleeves for worry-free handling.

Specifications

Performance
Suitable location	Processor
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Type	All-in-one liquid cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5, Socket TR4, Socket sTRX4
Compatible processor series	AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, AMD Ryzen™ Threadripper™, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i9, Intel® Pentium®
Minimum airflow (imperial)	21.67 cfm
Maximum airflow	78.02 cfm
Minimum air pressure	0.75 mmH2O
Maximum air pressure	2.7 mmH2O
Number of fans	2 fan(s)
Quantity per pack	1 pc(s)
Fan noise level (min)	17.9 dB
Fan noise level (max)	30.6 dB
Fan bearing technology	Fluid Dynamic Bearing (FDB)
Pump motor speed (min)	800 RPM
Pump motor speed (max)	2800 RPM
Fan speed (min)	500 RPM
Fan speed (max)	1800 RPM
Fan's mean time to failure (MTTF)	60000 h
Design
Fan connector	4-pin
Number of fans	2 fan(s)
Material	Aluminium, Plastic
Illumination colour	Multi
Product colour	White
Illumination LED	Yes
Radiator material	Aluminum
Water block material	Copper/Plastic
Display type	TFT-LCD
Display size (HxV)	39.1 x 39.1 mm
Technical details
Type	All-in-one liquid cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5, Socket TR4, Socket sTRX4
Compatible processor series	AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, AMD Ryzen™ Threadripper™, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i9, Intel® Pentium®
Minimum airflow (imperial)	21.67 cfm
Maximum airflow	78.02 cfm
Minimum air pressure	0.75 mmH2O
Maximum air pressure	2.7 mmH2O
Number of fans	2 fan(s)
Material	Aluminium, Plastic
Fan connector	4-pin
Illumination LED	Yes
Ports & interfaces
Fan connector	4-pin
Power
Fan power consumption	2.76 W
Pump voltage	12 V
Pump current	300 mA
Fan voltage	12 V
Fan current	0.23 A
Colour
Product colour	White
Weight & dimensions
Fan dimensions (W x D x H)	120 x 120 x 26 mm
Width	63.2 mm
Depth	53.2 mm
Height	12.8 mm
Weight	52.8 g
Radiator width	12.3 cm
Radiator depth	27.5 cm
Radiator height	3 cm
Tube length	40 cm
Waterblock width	7.47 cm
Waterblock depth	7.47 cm
Waterblock height	5.6 cm
Indication
Illumination colour	Multi
Packaging content
Cables included	SATA
RGB controller included	Yes
