USB-C HDMI Dual DP Docking Station with Power Delivery 100 W + i-tec Universal Charger 100 W

Key Features

• Compatible with USB-C, USB4 and Thunderbolt laptops & tablets. (The host device must support DisplayPort Alt mode)
• 2x DisplayPort++ and 1x HDMI supporting up to three 4K or a single 5K/60Hz display (depending on notebook performance). macOS supports a single extended display only
• 6x USB-ports (5x USB-A, 1x USB-C) make it easy to connect multiple USB devices and peripherals
• Provides up to 100W Power Delivery for compatible USB-C, USB4 and Thunderbolt laptops & tablets. The host device must support USB-C Power Delivery
• GLAN Ethernet supports network speeds of 10/100/1000 Mbps speeds, providing a robust and high-speed internet connection
• Combo 3.5 mm audio input/output jack for easy connection to headset or speakers
• VESA bracket available to help keep your desk tidy and free from cables, plus K-lock slot for added security
• Power-saving On/Off switch to reduce energy consumption when the docking station is not in use

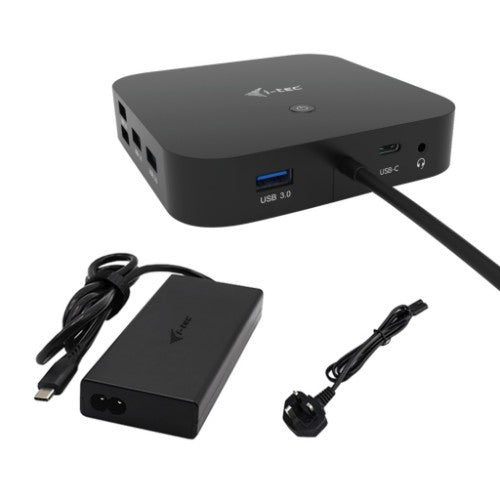

• Note: 100W power supply included. The dock can also be used with the USB-C PSU supplied with your laptop, so is available as a standalone item, P/N C31TRIPLE4KDOCKPDPRO

Description

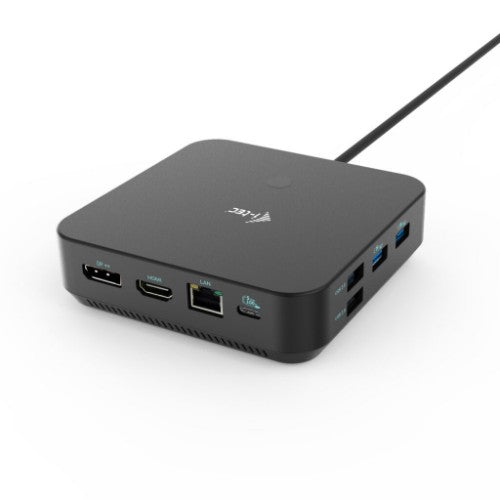

A high-performance USB-C office dock that supports up to 3x external 4K monitors. The dock is compatible with any laptop equipped with a USB-C, USB4 or Thunderbolt 3/4 port. Of course, it supports charging of your laptop or tablet, up to 100 W.

The integrated latest DP 1.4 DSC protocol also supports 5K/60 Hz resolution, which can be appreciated by professional graphic designers, data analysts, film editors or high-definition video lovers.

The dock can be purchased in two variants:

1. without the included USB-C charging adapter (product code C31TRIPLE4KDOCKPDPRO)
2. with the included 100W adapter (this variant)
Note: macOS operating system does not support Multi Stream Transport (MST) video transfer technology, which means that if connected to macOS, the same image will be projected on both connected monitors.

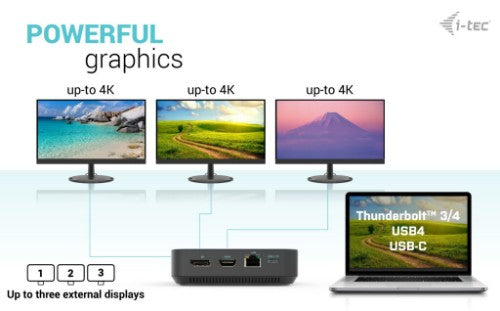

- Connect up to three external 4K/30Hz monitors
- Refresh rate up to 360Hz (when connected to a single 1080p monitor)
- Power delivery: up to 100W

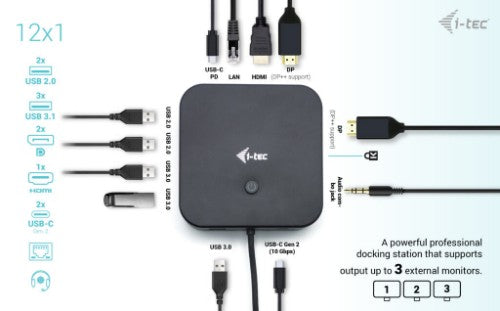

- 1x HDMI, 2x DisplayPort++
- 3x USB 3.1, 1x USB-C 3.2 Gen2 (10 Gbps) and 2x USB 2.0 allow you to easily connect your USB devices and peripherals. Gigabit Ethernet RJ-45 provides a reliable, robust and high-speed
- Internet connection with 10/100/1000 Mbps support
- Combination audio and microphone jack on the front panel
- Kensington lock provides anti-theft protection, especially in shared office environments or public areas
- Docking station power switch allows for maximum power savings

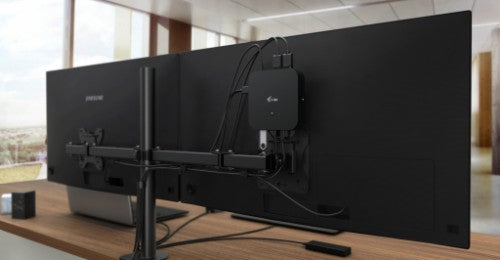

- Docking station supports a VESA mount for smart vertical installation behind a VESA-enabled monitor
- Supports Windows 10, macOS, Android, iPadOS, ChromeOS and Linux

The dock can be used without a power adapter connected. In this case, the video outputs, LAN (RJ-45), audio/mic and both USB 2.0 ports will always be functional. However, the USB 3.0 ports and the USB-C data port may not work when connecting devices with higher power requirements (e.g. SSDs, especially NVMe drives). In this case, the docking station may shut down. We recommend using the docking station with a power adapter connected to ensure that all ports are used and that maximum data transfer speeds are achieved. (The adapter is included in the package).

Note: If connected to an Android device, the dock will only work with the power adapter connected. (Adapter included).

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	2
Connectivity technology	Wired
USB Power Delivery	Yes
USB Power Delivery up to	100 W
DisplayPort version	1.4
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Number of displays supported	3
On/off switch	Yes
Product colour	Black
Card reader integrated	No
Cable lock slot	Yes
Data transfer rate	10 Gbit/s
Cable lock slot type	Kensington
Maximum refresh rate	144 Hz
Technical details
Product colour	Black
Cable lock slot	Yes
Data transfer rate	10 Gbit/s
Storage
Card reader integrated	No
Power
Power source type	AC
Input current	2.3 A
Compatible power plug types	UK
AC input voltage	100-240 V
AC input frequency	50-60 Hz
Output voltage	5/9/12/19/20 V
Output current	5 A
Power supply	100 W
USB cable length	1 m
Software
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Other operating systems supported	ChromeOS
Mobile operating systems supported	Android, iOS
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 100%
Weight & dimensions
Weight	340 g
Width	113 mm
Depth	113 mm
Height	31.2 mm
Design
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Product colour	Black
Cable lock slot	Yes
Cable lock slot type	Kensington
Packaging content
Manual	Yes
AC adapter included	Yes
