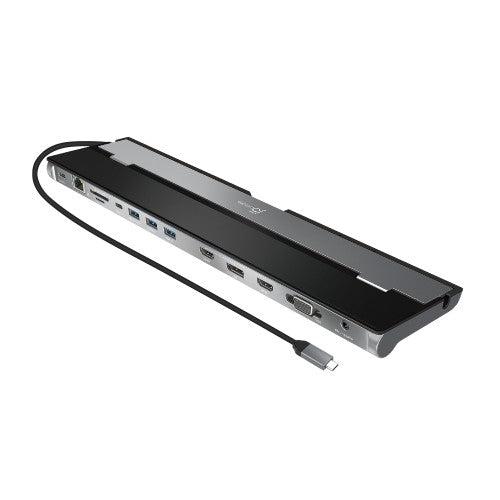

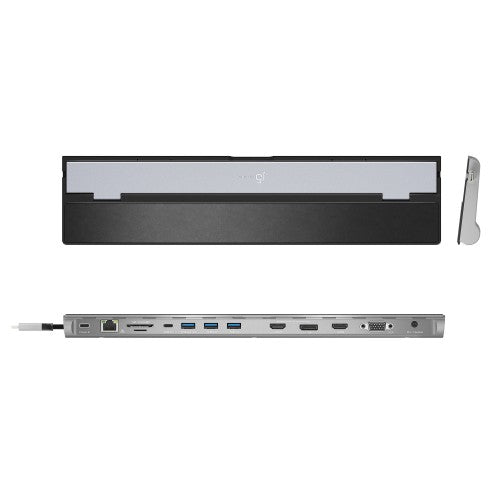

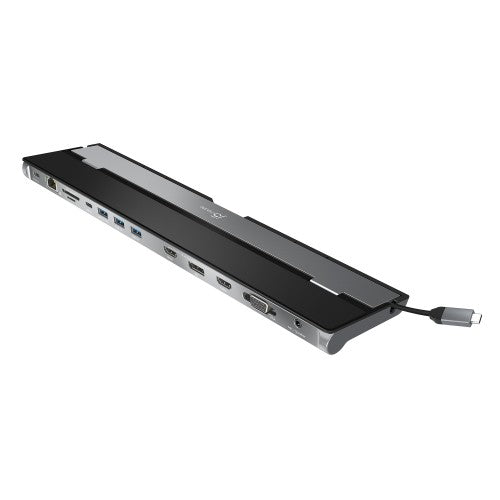

JCD543 USB-C Triple Display Docking Station, includes 2x HDMI ports and 5x USB ports, Silver and Black

Key Features

• USB-C™ power delivery 100W pass-through
• USB-C™ downstream port Gen 1 5G x1；Power delivery adapter in port x1
• USB™ Type-A downstream port Gen 1 5G x3
• DisplayPort™ Alt mode supported
• DisplayPort™/HDMI™ output 4K @ 30 Hz
• USB™ graphic HDMI™ resolution 4K @ 30 Hz; VGA Resolution 1920 x 1080 dual output
• RJ45 Gigabit Ethernet
• SD™/microSD™ card slots allow for external memory access
• Combo audio jack mic/speaker
• Cable length 1.5 ft/45 cm

Description

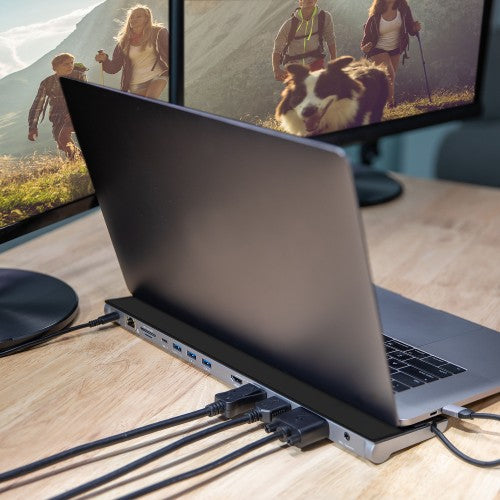

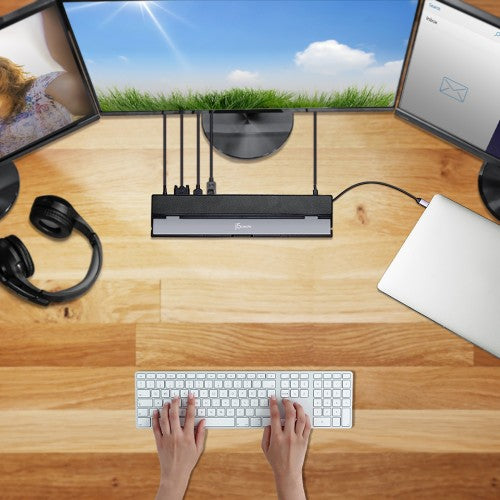

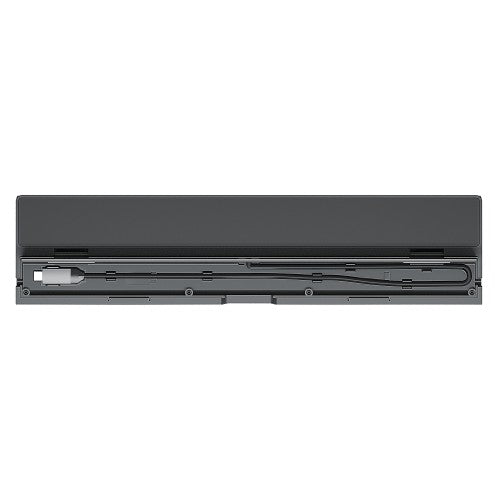

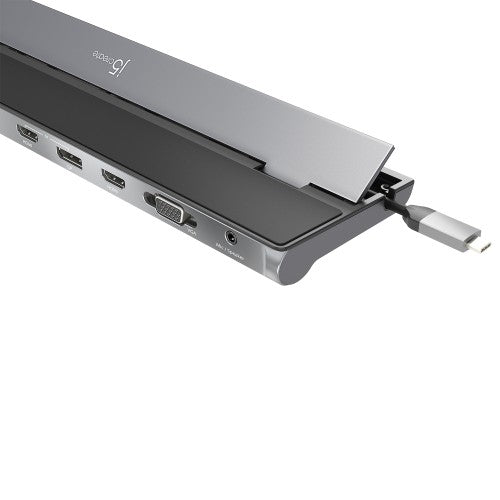

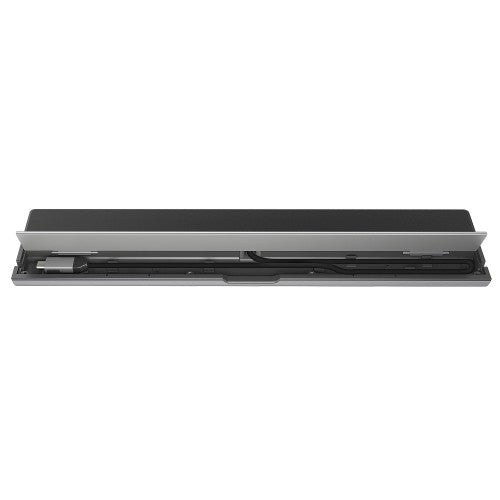

The USB-C™ Triple Display Docking Station provides extra connectivity from your computer. Extend up to three monitors through HDMI™, VGA, and DisplayPort™ or HDMI™. This docking station is designed to be used as a notebook stand, which assists with heat dissipation. With its flexible USB-C™ cord, it keeps in mind the location of the USB-C™ port on your device, ensuring an easy connection.

These multi-adapters allow you to add an additional USB™ 3.1/SD™/microSD™ computer peripheral, HDMI™/DisplayPort™/VGA monitor and Gigabit Ethernet through your USB™ port. One of the USB™ Type-A ports supports fast charging BC1.2 for a smartphone, tablet or iPad®. The USB-C™ port supports power delivery 3.0, allowing you to keep charging your notebook or smartphone while using the adapter.

Specifications

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	2
VGA (D-Sub) ports quantity	1
Microphone in	Yes
Headphone outputs	1
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
USB Type-C DisplayPort Alternate Mode	Yes
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Number of displays supported	3
Country of origin	Taiwan
Product colour	Black, Silver
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), SD
HD type	4K Ultra HD
Housing material	Aluminium
Maximum refresh rate	60 Hz
Hub interfaces	DisplayPort, HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, VGA
Technical details
Product colour	Black, Silver
Maximum operating temperature	48 °C
Cable length	0.45 m
Warranty period	2 year(s)
Storage
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), SD
Power
Input current	5 A
Power plug type	Type C
Power consumption (typical)	4.5 W
Output voltage	20 V
Output current	0.9 A
Software
Windows operating systems supported	Windows 10, Windows 11, Yes
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, MacOS, Yes
Operational conditions
Operating temperature (T-T)	0 - 48 °C
Storage temperature (T-T)	-10 - 65 °C
Operating relative humidity (H-H)	0 - 85%
Storage relative humidity (H-H)	0 - 85%
Weight & dimensions
Weight	355 g
Width	82.5 mm
Depth	350 mm
Height	23.4 mm
Package weight	433 g
Package width	88 mm
Package depth	358 mm
Package height	28 mm
Design
Windows operating systems supported	Windows 10, Windows 11, Yes
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, MacOS, Yes
Country of origin	Taiwan
Product colour	Black, Silver
Packaging data
Quantity per pack	1 pc(s)
Package weight	433 g
Package width	88 mm
Package depth	358 mm
Package height	28 mm
Packaging content
Quick start guide	Yes
Packaging content	1 x USB-C™ Triple Monitor Docking Station, 1 x Quick Installation Guide, 1 x 100W USB-C™ Power Adapter
Manual	Yes
Cables included	USB Type-C
AC adapter included	No
Quantity per pack	1 pc(s)
Other features
Maximum operating temperature	48 °C
Cable length	0.45 m
