Socket LGA1200, 2 x SO-DIMM DDR4 max. 64GB, 1 x 2.5" SSD/HDD, 2 x M.2, Gigabit LAN, 180 W

Key Features

• Slim PC socket LGA1200 for Intel 10th/11th generation
• Support PCI-Express-X16 single-slot cards
• 24/7 operation , Operating temperature: 0~50 °

Description

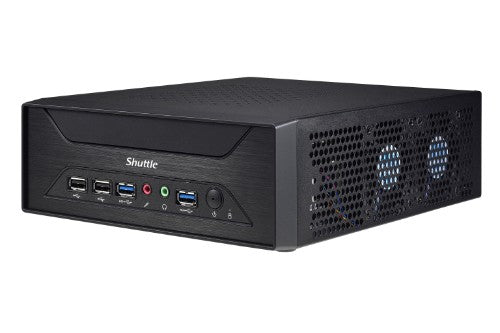

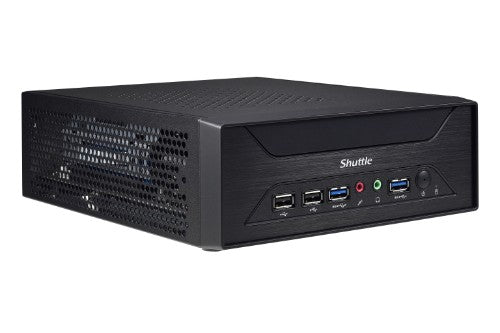

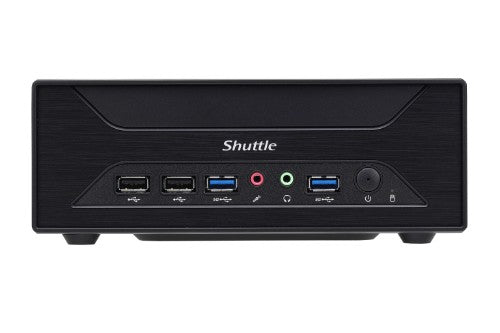

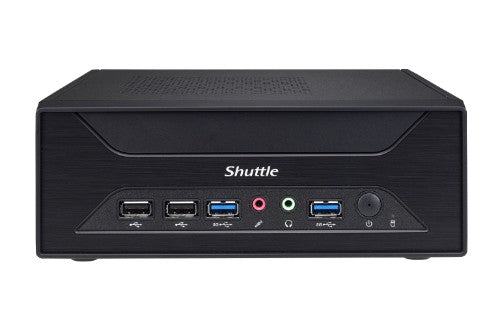

Flexible 3-litre PC with PCIe slot The Shuttle XPC slim Barebone XH510G is a 3-litre PC to house one single-slot PCI-Express expansion cards. Together with an LGA 1200 Intel Core desktop processor of the Intel Core Gen 10/11 range, this platform is perfectly suited for many professional applica-tions where performance, flexibility and a compact form factor matter. This includes video wall presentations, graphics workstations, media capturing, surveillance, POS, POI as well as network and industrial applications. Even mid-range gaming is possible.

Specifications

Motherboard
Processor socket	LGA 1200 (Socket H5)
Number of processors supported	1
Motherboard chipset	Intel H510
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor
Built-in processor	No
Processor socket	LGA 1200 (Socket H5)
Number of processors supported	1
Motherboard chipset	Intel H510
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Memory channels	Dual-channel
Supported memory types	DDR4-SDRAM
Supported memory clock speeds	2666,2933,3200 MHz
Maximum internal memory	64 GB
Non-ECC	Yes
Video
On-board graphics card	Yes
Graphics card family	Intel
Storage
Supported storage drive types	HDD & SSD
Storage drive sizes supported	2.5,M.2
Storage drive interface	M.2, Serial ATA III
Number of storage drives supported	2
NVMe	Yes
Graphics
On-board graphics card	Yes
Graphics card family	Intel
Audio
Audio output channels	7.1 channels
Built-in speaker(s)	No
Network
Ethernet LAN	Yes
Wi-Fi	No
LAN controller	Intel® I219-LM

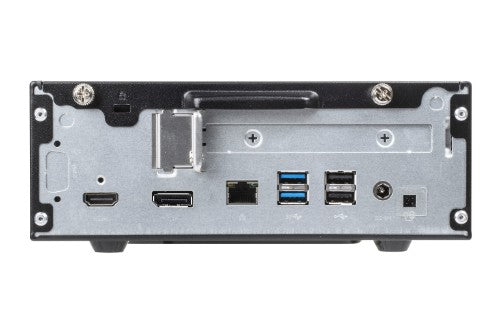

Ports & interfaces
DisplayPort version	1.4
DC-in jack	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
HDMI version	2.0a
DisplayPorts quantity	1
USB 2.0 ports quantity	4
Microphone in	Yes
Headphone outputs	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Expansion slots
PCI Express slots version	4.0
PCI Express x16 slots	1
Design
VESA mounting	Yes
Product type	PC barebone
Cable lock slot type	Kensington
Cable lock slot	Yes
On/off switch	Yes
LED indicators	HDD, Power
Cooling type	Active
Product colour	Black
Performance
Windows operating systems supported	Windows 10, Windows 11
Linux operating systems supported	Yes
Trusted Platform Module (TPM)	Yes
Processor socket	LGA 1200 (Socket H5)
Operating system installed	No
Number of processors supported	1
Motherboard chipset	Intel H510
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Audio output channels	7.1 channels
Harmonized System (HS) code	84733080
Software
Operating system installed	No
Colour
Product colour	Black
Technical details
Cable lock slot type	Kensington
Cable lock slot	Yes
Trusted Platform Module (TPM)	Yes
Quick start guide	Yes
Cooling type	Active
Packaging data
Power cord included	Yes
Drivers included	Yes
AC adapter included	Yes
Indication
LED indicators	HDD, Power
Management features
On/off switch	Yes
Logistics data
Country of origin	China
Harmonized System (HS) code	84733080
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
AC adapter output voltage	19.5 V
AC adapter output current	9.23 A
Power supply type	External AC adapter
Power supply	180 W
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	250 mm
Depth	200 mm
Height	78.5 mm
Weight	3.2 kg
Packaging content
Power cord included	Yes
Drivers included	Yes
AC adapter included	Yes
Quick start guide	Yes
