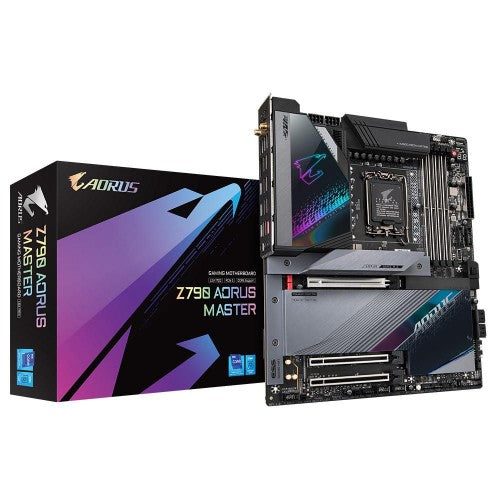

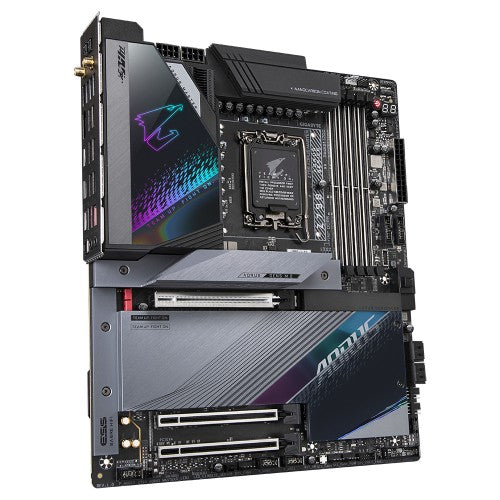

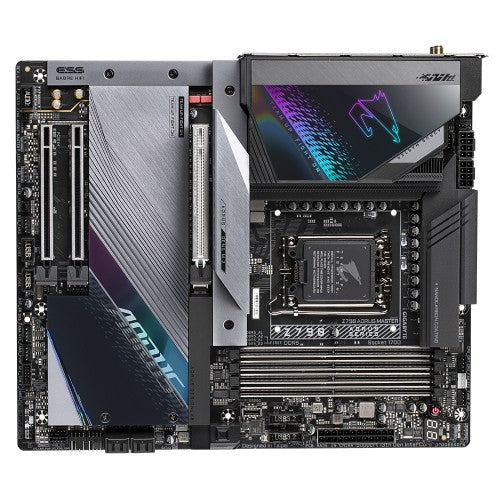

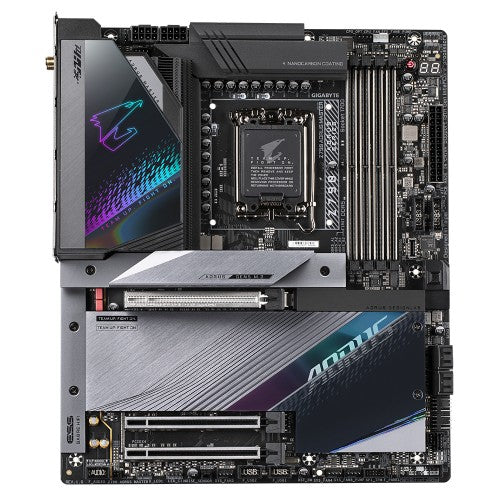

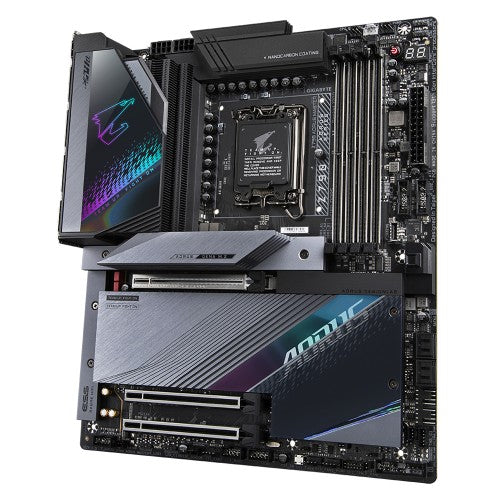

Z790 AORUS MASTER Motherboard - Supports Intel Core 13th CPUs, 20+1+2 Phases Digital VRM, up to 8000MHz DDR4 (OC), 1xPCIe 5.0+4xPCIe 4.0 M.2, Wi-Fi 6E, 10GbE LAN, USB 3.2 Gen 2x2

Key Features

• Intel Socket LGA 1700：Support 13th and 12th Gen Series Processors
• Unparalleled Performance：Direct 20+1+2 Phases Digital VRM Solution
• Dual Channel DDR5：4*SMD DIMMs with XMP 3.0 Memory Module Support
• Next Generation Storage：1*PCIe 5.0 x4 and 4*PCIe 4.0 x4 M.2 Connectors
• Fins-Array III & M.2 Thermal Guard III：To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
• EZ-Latch Plus：SMD PCIe 5.0 x16 Slot & M.2 Connectors with Quick Release & Screwless Design
• Hi-Fi Audio with DTS:X Ultra：ALC1220 CODEC and Rear ESS SABRE Hi-Fi 9118 DAC
• Fast Networks：Marvell AQtion 10GbE LAN & Intel Wi-Fi 6E 802.11ax with DCT
• Extended Connectivity：DP, USB-C 10Gb/s, Front and Dual Rear USB-C 20Gb/s
• Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Specifications

Internal I/O
Number of M.2 (M) slots	5
Thunderbolt headers	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Total number of SATA connectors	4
Front panel connector	Yes
12V power connector	Yes
Supported storage drive interfaces	M.2, PCI Express 4.0, PCI Express 5.0, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
TPM connector	Yes
Number of SATA III connectors	4
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel Z790
Supported processor sockets	LGA 1700
PC health monitoring	Fan, Noise, Temperature, Voltage, Water cooling
Parallel processing technology support	Crossfire
Motherboard form factor	Extended ATX
Component for	PC
Total number of SATA connectors	4
Maximum internal memory supported by processor	192 GB
Warranty period	3 year(s)
Audio
Audio output channels	7.1 channels
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Motherboard chipset family	Intel
Motherboard chipset	Intel Z790
RAID levels	0, 1, 5, 10
Supported processor sockets	LGA 1700
PC health monitoring	Fan, Noise, Temperature, Voltage, Water cooling
Audio output channels	7.1 channels
Motherboard form factor	Extended ATX
Component for	PC
Processor
Processor manufacturer	Intel
Maximum internal memory supported by processor	192 GB
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Supported processor sockets	LGA 1700
Processor socket	LGA 1700
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR5-SDRAM
Memory channels	Dual-channel
Supported memory clock speeds	8000,7950,7900,7800,4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Maximum internal memory	192 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	8000 MHz
ECC сompatibility	ECC & Non-ECC
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express 4.0, PCI Express 5.0, SATA III
RAID levels	0, 1, 5, 10
Number of storage drives supported	9
RAID support	Yes
Graphics
Parallel processing technology support	Crossfire
Maximum resolution	4096 x 2304 pixels
HDCP	Yes
DirectX version	12.0

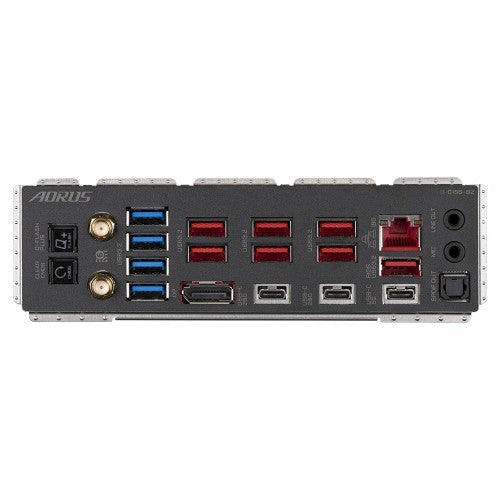

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	7
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
DisplayPort version	1.2
USB connector type	USB Type-A, USB Type-C
USB 2.0 ports quantity	0
WiFi-AP antenna jack	2
VGA (D-Sub) ports quantity	0
S/PDIF out port	Yes
Microphone in	Yes
Headphone outputs	2
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
DVI-D ports quantity	0
DisplayPorts quantity	1
USB 3.2 Gen 2x2 Type-C ports quantity	2
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
LAN controller	Marvell AQtion AQC113C
Ethernet interface type	10 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.3
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Killer Wi-Fi 6E AX1690
Features
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Motherboard chipset family	Intel
Motherboard chipset	Intel Z790
Supported processor sockets	LGA 1700
PC health monitoring	Fan, Noise, Temperature, Voltage, Water cooling
Audio output channels	7.1 channels
Motherboard form factor	Extended ATX
Component for	PC
Audio chip	Realtek ALC1220-VB
Product colour	Black
Expansion slots
Number of M.2 (M) slots	5
PCI Express x16 slots	3
BIOS
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	256 Mbit
ACPI version	5.0
Clear CMOS button	Yes
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Video
Maximum resolution	4096 x 2304 pixels
HDCP	Yes
DirectX version	12.0
Packaging data
Package width	345 mm
Package depth	294 mm
Package height	80 mm
Package weight	3.46 kg
Software
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Battery
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery weight	3 g
Number of battery cells	1
Lithium weight per battery	0.07 g
Battery type	CR2032
Logistics data
Products per shipping (inner) case	1 pc(s)
Country of origin	Taiwan
Weight & dimensions
Height	35 mm
Package width	345 mm
Package depth	294 mm
Package height	80 mm
Package weight	3.46 kg
Width	305 mm
Depth	260 mm
Packaging content
Cables included	SATA
Batteries included	Yes
Other features
Height	35 mm
Package width	345 mm
Package depth	294 mm
Package height	80 mm
Package weight	3.46 kg
