JCD401 USB4 Dual 4K Multi-Port Hub, Silver

Key Features

• Intel® USB4® controller ensures industry-leading quality and reliability
• Up to two 4K displays with flexible monitor connections
• 1 DisplayPort™ + 1 HDMI™
• 1 USB-C® + 1 DisplayPort™
• 1 USB-C® + 1 HDMI™"
• Multiple data and display protocols efficiently share bandwidth to offer optimal performance

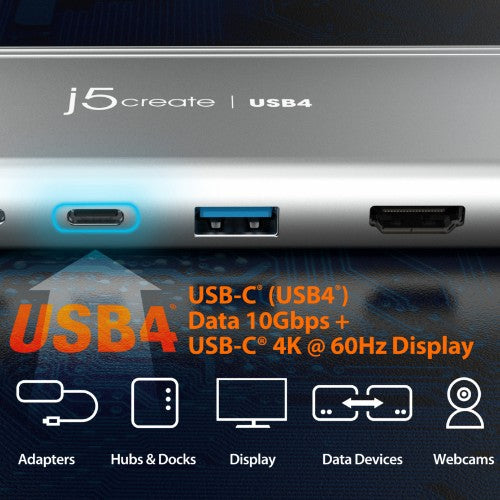

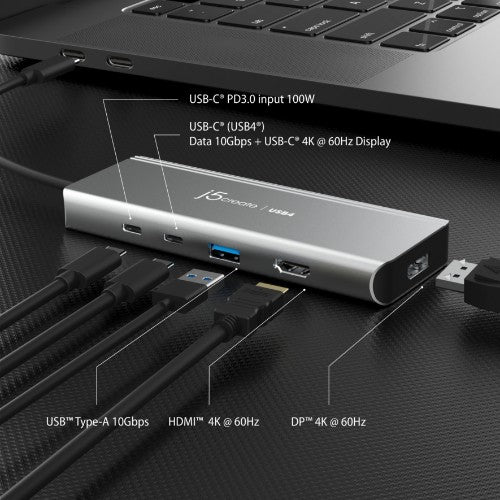

• One USB-C® downstream port supports up to 10Gbps data transmission in addition to its DisplayPort™ 1.4 support for 4K @ 60 Hz video output
• One SuperSpeed+ USB™ Type-A 10Gbps port to accommodate your legacy peripheral
• Power Delivery 3.0 offers up to 85W of pass-through charging with a USB-C® power adapter
• Wide compatibility with various operating systems and devices
• Plug-and-play, no driver installation required

Description

This high-performance USB4® multi-port hub is the first USB-C® hub to incorporate the latest USB4® controller from Intel®, offering compatibility with Thunderbolt™ and older USB™ specifications.

With up to 20Gbps of throughput, dynamic data, and display bandwidth allocation for efficient display data flow, you can easily create a dual-monitor setup. Enjoy up to 4K resolution using DisplayPort™, HDMI™, or USB-C® and access data faster without affecting system performance. Additionally, it has two USB™ SuperSpeed+ 10Gbps ports (1 USB-C® and 1 Type-A) for charging or connecting peripherals. It is also equipped with a USB-C® Power Delivery port to charge your laptop and power your connected devices with up to 85W pass-through power.

Specifications

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity	0
HDMI ports quantity	1
DisplayPorts quantity	1
Microphone in	No
Headphone outputs	0
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	85 W
USB Type-C DisplayPort Alternate Mode	Yes
USB4 ports quantity	1
Network
Ethernet LAN	No
Performance
Number of displays supported	2
Country of origin	Taiwan
Product colour	Silver
Card reader integrated	No
Compatibility	Thunderbolt™ 4 computers Thunderbolt™ 3 computers USB4® computers
Plug and Play	Yes
Data transfer rate	10 Gbit/s
HD type	4K Ultra HD
Housing material	Aluminium
Maximum refresh rate	60 Hz
Hub interfaces	DisplayPort, HDMI, Mini DisplayPort, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, mini DisplayPort
Technical details
Product colour	Silver
Compatibility	Thunderbolt™ 4 computers Thunderbolt™ 3 computers USB4® computers
Plug and Play	Yes
Data transfer rate	10 Gbit/s
Master (outer) case GTIN (EAN/UPC)	24712795086342
Warranty period	2 year(s)
Special features	Intel® USB4® controller ensures industry-leading quality and reliability, Up to two 4K displays with flexible monitor connections, Power Delivery 3.0 offers up to 85W of pass-through charging with a USB-C® power adapter
Products per master (outer) case	18 pc(s)
Master (outer) case width	226 mm
Master (outer) case gross weight	4.1 kg
Master (outer) case length	445 mm
Master (outer) case height	190 mm
Products per shipping (inner) case	6 pc(s)
Storage
Card reader integrated	No
Power
Power source type	USB
Power consumption (typical)	1.25 W
Output voltage	20 V
Output current	0.25 A
Power connector	USB Type-C
USB cable length	0.2 m
Software
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-17 - 68 °C
Operating relative humidity (H-H)	0 - 85%
Storage relative humidity (H-H)	0 - 85%
Weight & dimensions
Weight	109 g
Width	51 mm
Depth	200 mm
Height	135 mm
Package weight	177 g
Package width	193 mm
Package depth	125 mm
Package height	22.5 mm
Design
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Country of origin	Taiwan
Product colour	Silver
Packaging data
Quantity per pack	1 pc(s)
Package weight	177 g
Package width	193 mm
Package depth	125 mm
Package height	22.5 mm
Packaging content
Quick start guide	Yes
Manual	Yes
Cables included	USB Type-C
Quantity per pack	1 pc(s)
Logistics data
Shipping (inner) case width	16.5 cm
Shipping (inner) case length	21.2 cm
Shipping (inner) case height	13.7 cm
Shipping (inner) case net weight	1.2 kg
Products per master (outer) case	18 pc(s)
Master (outer) case width	226 mm
Master (outer) case gross weight	4.1 kg
Master (outer) case length	445 mm
Master (outer) case height	190 mm
Products per shipping (inner) case	6 pc(s)
Export Control Classification Number (ECCN)	EAR99
Other features
Special features	Intel® USB4® controller ensures industry-leading quality and reliability, Up to two 4K displays with flexible monitor connections, Power Delivery 3.0 offers up to 85W of pass-through charging with a USB-C® power adapter
