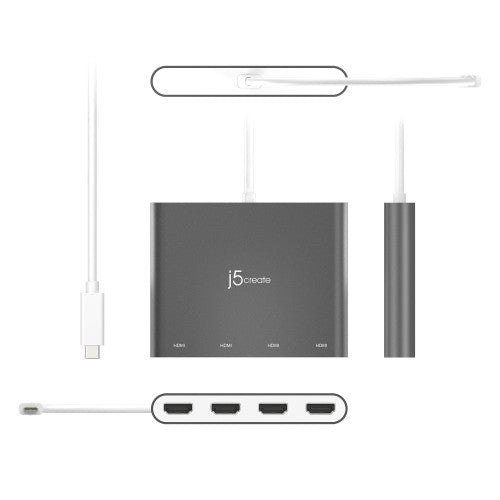

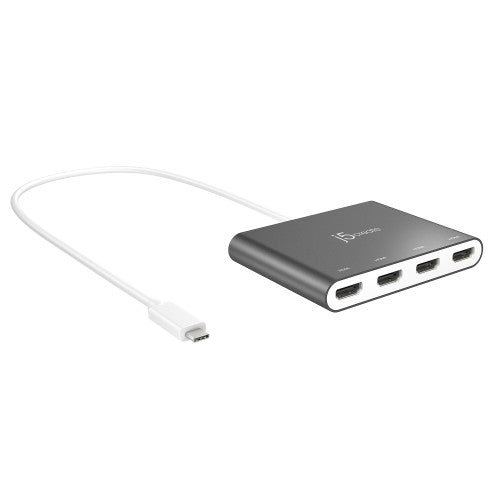

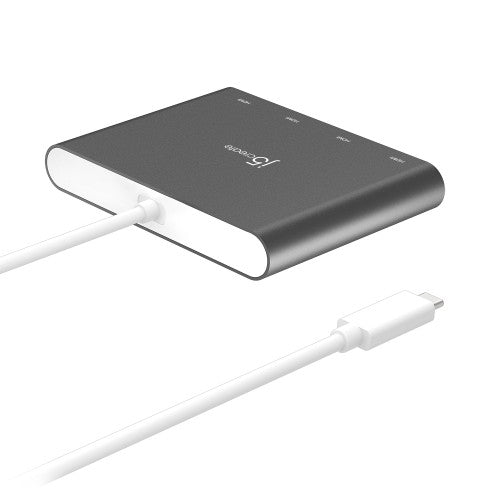

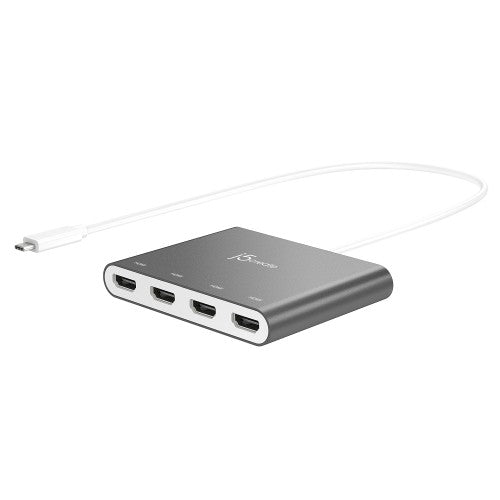

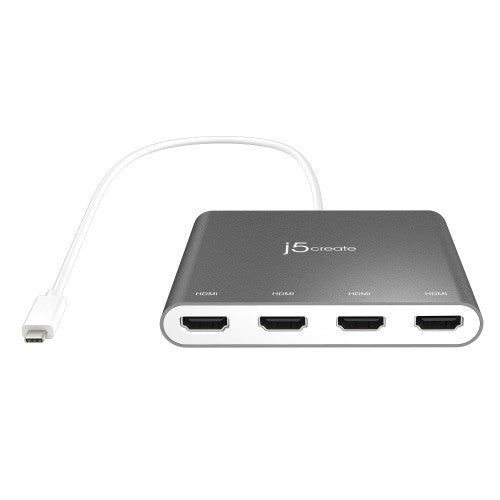

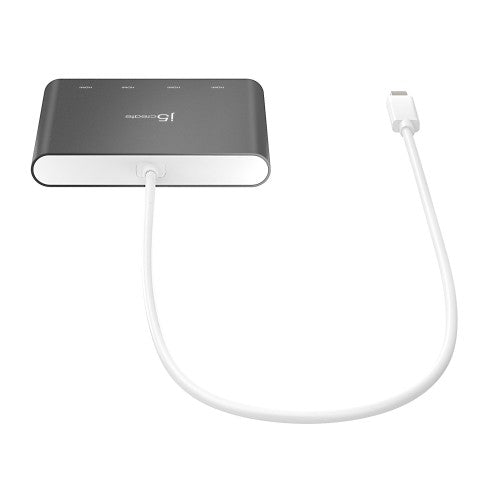

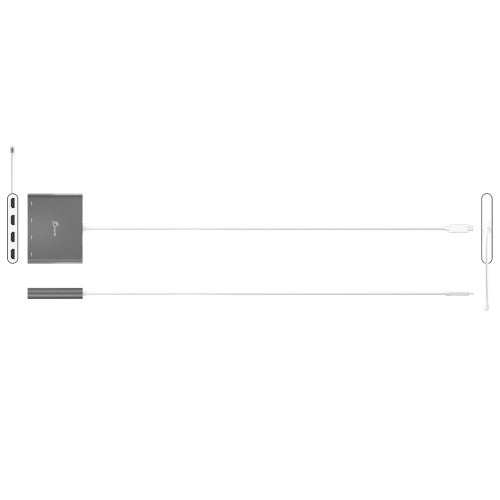

JCA366 USB-C to 4-Port HDMI Multi-Monitor Adapter, Silver

Key Features

• INCREASE PRODUCTIVITY WITH MULTIPLE DISPLAY MODES:
• Multitask with a larger landscape/desktop space. Move and view your large programs across four screens without overlapping windows. Ideal for viewing multiple windows at the same time to enhance productivity for standard business applications.
• FREE APPLICATION - QUICKLY ASSIGN MULTIPLE WINDOWS:
• The Multi-Monitor Assistant application assists with dragging, dropping, zooming in & out, cursor display cycle, cascading windows to the main display and windows expansion cycle on multiple monitors with simple moves (Currently available for Windows® only).
• 1080p HDMI™ RESOLUTION WITH STEREO AUDIO:
• 1920 x 1080 @ 60 Hz, with 1080p Video Playback; Display Rotation: 0°, 90°, 180° & 270°. HDMI™ ports support 48 kHz imbedded audio.
• MINIMIZE SYSTEM RESOURCES:
• Easily add additional displays through the USB-C® to HDMI™ connection without adding an expensive, internal video card that makes installation complicated.
• FAST INSTALLATION:
• Simply install the driver, plug-in the USB-C® and it’s ready to go.
• NO EXTERNAL POWER REQUIRED:
• USB™ powered by the computer, over SuperSpeed USB™ 3.0 / 3.1

Description

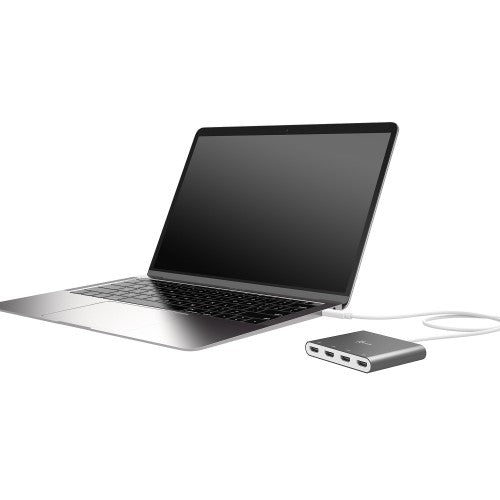

The USB-C® to 4-port HDMI™ Multi-Monitor Adapter functions as an external video card for your MacBook® or personal computer. It allows you to add four additional monitors/displays through your USB-C® port. This is the perfect alternative to a costly video card. With the JCA366, you can quickly install the driver with a simple USB-C® plug-in. Afterwards, connect your device to your monitors using HDMI™ cables and you have just created a new visual environment in seconds. With this multi-monitor adapter, you can extend your desktop across multiple displays, clone one screen onto another, and have individual applications displayed on each monitor. You can also enable additional features with the Multi-Monitor Assistant Application for your Windows® devices.

Specifications

Performance
USB connector form factor	Straight
Supported video modes	1080p
Supported graphics resolutions	1920 x 1080 (HD 1080)
USB connector type	USB Type-C
USB connector gender	Male
Data transfer rate (max)	5 Gbit/s
USB version	3.2 Gen 1 (3.1 Gen 1)
DVI output	No
HDMI output	Yes
DisplayPort output	No
Number of displays supported	4
Maximum resolution	1920 x 1080 pixels
Refresh rate at maximum resolution	60 Hz
Maximum resolution (HDMI)	1920 x 1080 pixels
Extended display mode	Yes
Current	0.9 A
HDMI ports quantity	4
Design
Product colour	Silver
Housing material	Aluminium
Integrated USB cable	Yes
USB cable length	0.5 m
Power
Power consumption (max)	4.5 W
Output voltage	5 V
System requirements
Windows operating systems supported	Windows 10
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey
Linux operating systems supported	No
Minimum processor family	Core i5, Core i7
Minimum RAM	4 GB
Mac compatibility	Yes
Weight & dimensions
Width	101.5 mm
Depth	16 mm
Height	79.5 mm
Weight	152.5 g
USB cable length	0.5 m
Package width	193 mm
Package depth	125 mm
Package height	22.5 mm
Package weight	217.5 g
Technical details
Products per master (outer) case	18 pc(s)
Master (outer) case width	226 mm
Master (outer) case gross weight	4.86 kg
Master (outer) case length	445 mm
Master (outer) case height	190 mm
Master (outer) case GTIN (EAN/UPC)	24712795083938
Warranty period	2 year(s)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 71 °C
Operating relative humidity (H-H)	0 - 85%
Storage relative humidity (H-H)	0 - 85%
Packaging data
Package width	193 mm
Package depth	125 mm
Package height	22.5 mm
Package weight	217.5 g
Packaging content
Quick installation guide	Yes
Manual	Yes
Packaging content	1 x JCA366 USB-C® to 4-Port HDMI™ Multi-Monitor Adapter, 1 x Quick Installation Guide
Logistics data
Country of origin	Taiwan
Products per master (outer) case	18 pc(s)
Master (outer) case width	226 mm
Master (outer) case gross weight	4.86 kg
Master (outer) case length	445 mm
Master (outer) case height	190 mm
Export Control Classification Number (ECCN)	EAR99
Master (outer) case GTIN (EAN/UPC)	24712795083938
