49" - 98", max. 113.4 kg, max. 960 x 650 mm, Black

Key Features

• Low profile 1.5” (38 mm) depth facilitates ADA compliance for typical AV design requirements
• Easy to reach 0.75” (19 mm) post-installation leveling screw and 10” (254 mm) ball end hex-key included
• Open wall plate allows for flexible positioning around power and data wall boxes
• Supports display mounting patterns up to 960 x 650 mm
• Re-designed rigid wall plate support up to 250 lbs (113.4 kg) and additional mounting slots for improved installation experience
• Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
• Easy access magnetic quick-store release pullcords
• Kickstand for easy access to power and signal connections
• Theft deterrent security option (not included)
• UL and TUV safety standards compliant

Description

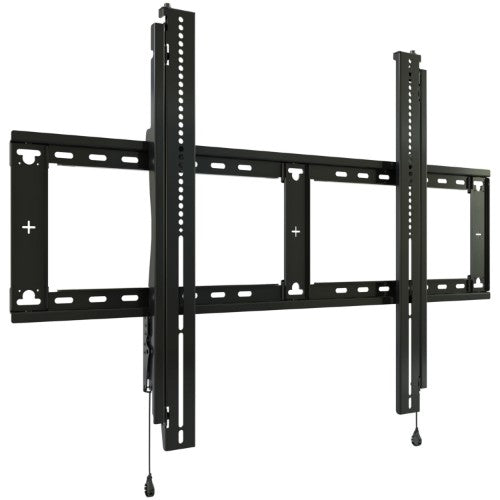

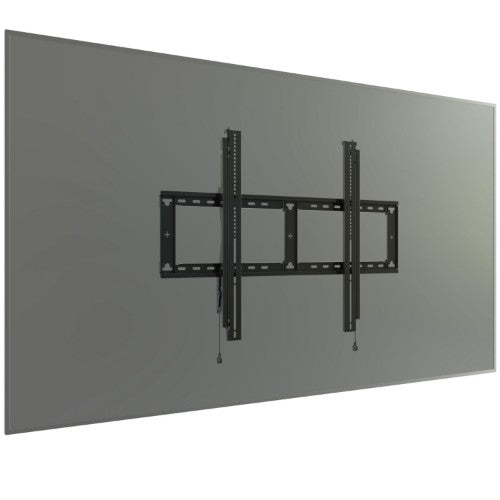

The Fit series RXF3 is an extra-large fixed display wall mount for 49” to 98” typical display sizes and supports mounting patterns up to 960 x 650 mm. This next-generation design features 0.75” (19 mm) post-installation leveling, robust wall plate design supporting up to 250 lbs (113.4 kg), 1.5” (38 mm) low-profile depth, and UL and TUV safety standard approvals.

Specifications

Mounting
Mounting type	Wall
Minimum screen size	124.5 cm (49")
Number of displays supported	1
Maximum VESA mount	960 x 650 mm
Maximum screen size	2.49 m (98")
Maximum weight capacity	113.4 kg
Ergonomics
Height adjustment	Yes
Height adjustment type	Manual
Technical details
Number of displays supported	1
Product colour	Black
Mounting type	Wall
Design
Certification	TUV, UL Listed
Product colour	Black
Certificates
Certification	TUV, UL Listed
Weight & dimensions
Width	965 mm
Height	687 mm
Depth (min)	3.8 cm
Depth (max)	3.9 cm
Packaging data
Package weight	7.9 kg
Quantity per pack	1 pair(s)
Other features
Mounting type	Wall
