43" - 86", max. 90.7 kg, max. 915 x 450 mm, -12° Tilt, Black

Key Features

• Low-profile 2” (51 mm) depth facilitates ADA compliance for typical AV design requirements
• Easy to reach 0.75” (19 mm) post-installation leveling screw and 10” (254 mm) ball end hex-key included
• Display can be tilted up to 12° to set the optimal viewing angle
• Open wall plate allows for flexible positioning around power and data wall boxes
• Supports display mounting patterns up to 915 x 450 mm
• Rigid wall plate supports up to 200 lbs (90.7 kg) and has additional mounting slots for improved installation experience
• Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
• Easy access magnetic quick-store release pullcords
• Kickstand for easy access to power and signal connections
• Theft deterrent security options (not included)
• UL and TUV safety standards approved

Description

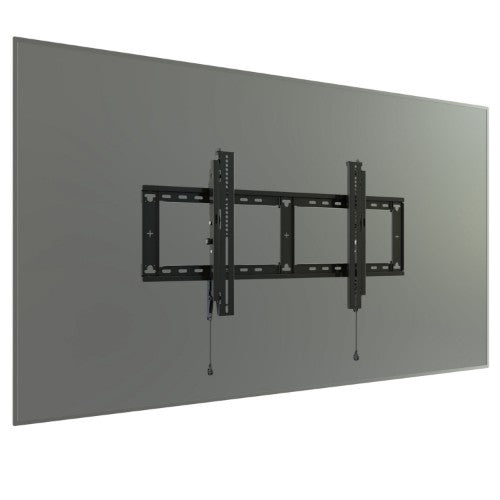

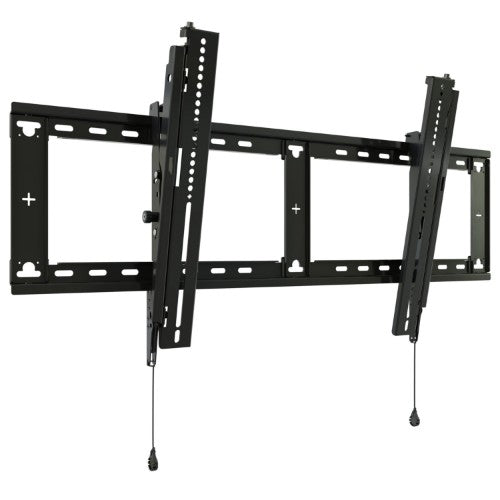

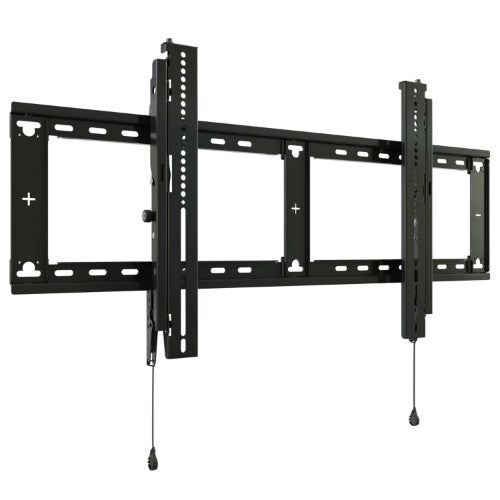

The Fit series RLT3 is a large tilt display wall mount for 43” to 86” typical display sizes and supports mounting patterns up to 915 x 450 mm. This next-generation design features 0.75” (19 mm) post-installation leveling, robust wall plate design supporting up to 200 lbs (90.7 kg), 2” (51 mm) low-profile depth, up to 12° tilt, and UL and TUV safety standard approvals.

Specifications

Mounting
Mounting type	Wall
Minimum screen size	109.2 cm (43")
Number of displays supported	1
Maximum VESA mount	915 x 450 mm
Maximum screen size	2.18 m (86")
Maximum weight capacity	90.7 kg
Ergonomics
Height adjustment	Yes
Tilt angle range	-12 - 0°
Height adjustment type	Manual
Tilt adjustment	Yes
Technical details
Number of displays supported	1
Product colour	Black
Mounting type	Wall
Design
Certification	TUV, UL Listed
Product colour	Black
Certificates
Certification	TUV, UL Listed
Weight & dimensions
Width	965 mm
Height	487 mm
Depth (min)	5.1 cm
Depth (max)	5.1 cm
Packaging data
Package weight	8.2 kg
Quantity per pack	1 pair(s)
Other features
Mounting type	Wall
