Sale price
£328.90
Regular price
£627.04
Spread the cost over 3, 6 or 12 months with orders over £50.
Free next working day delivery!
Description

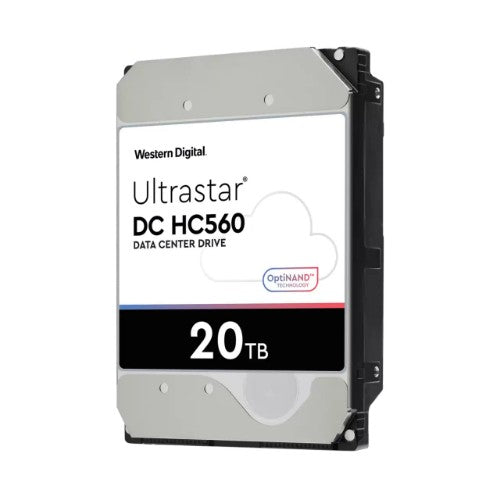

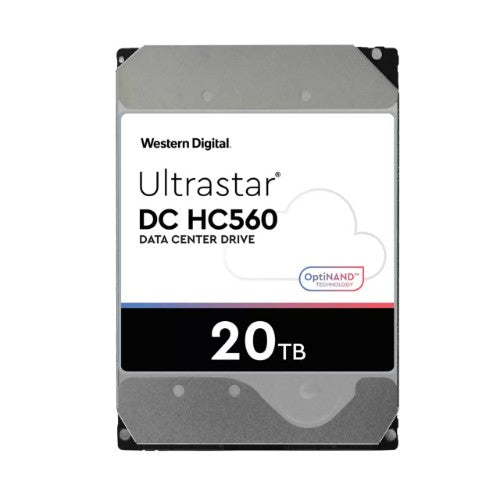

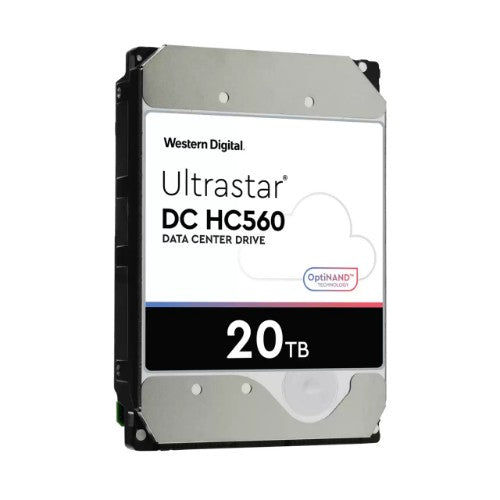

20 TB, SE, SATA, 3.5 Inch, 512MB, 6 GB/s, 101.6 x 26.162 x 147 mm, 690 g
An innovative storage architecture to help our customers meet their need for exponential data growth.
Reimagining the HDD for Exponential Data Growth
Hyperscale cloud, CSPs, enterprises, smart video surveillance partners, NAS suppliers and more need storage solutions to meet the exponential growth in data creation. When it comes to cost-effective storage of data at scale, hard disk drives (HDDs) continue to play a central role. HDDs deliver the capacity, performance and reliability needed to store vast amounts of data today and well into the future. Investments in HDD technology remain critical to supporting worldwide data growth.
Western Digital has developed flash-enhanced drives with OptiNAND™ technology by vertically integrating our leading NAND flash with our world-class HDDs. Western Digital HDDs have been leaders in areal density with industry first technologies of energy-assisted magnetic recording technology (EAMR), triple-stage actuator (TSA), HelioSeal®, and now OptiNAND technology. Higher areal density means higher capacities to meet storage challenges.
20TB1 HDDs with OptiNAND Technology
OptiNAND integrates an iNAND® Universal Flash Storage (UFS) Embedded Flash Drive (EFD) with traditional spinning disk media, and incorporates innovative changes to the firmware algorithm and system-on-a-chip (SoC). OptiNAND is not a hybrid technology. The drive works smarter, with enhanced firmware algorithms taking advantage of expanded metadata that has been offloaded to the iNAND, enabling more tracks per inch (TPI) with resulting increased areal density.
The Ultrastar DC HC560, with the first implementation of OptiNAND technology’s capacity-enabling features, delivers an unbeaten 20TB capacity in a nine-disk platform (2.2TB/platter) with CMR recording format
Description
20TB capacity with a reimagined HDDAn innovative storage architecture to help our customers meet their need for exponential data growth.
Reimagining the HDD for Exponential Data Growth
Hyperscale cloud, CSPs, enterprises, smart video surveillance partners, NAS suppliers and more need storage solutions to meet the exponential growth in data creation. When it comes to cost-effective storage of data at scale, hard disk drives (HDDs) continue to play a central role. HDDs deliver the capacity, performance and reliability needed to store vast amounts of data today and well into the future. Investments in HDD technology remain critical to supporting worldwide data growth.
Western Digital has developed flash-enhanced drives with OptiNAND™ technology by vertically integrating our leading NAND flash with our world-class HDDs. Western Digital HDDs have been leaders in areal density with industry first technologies of energy-assisted magnetic recording technology (EAMR), triple-stage actuator (TSA), HelioSeal®, and now OptiNAND technology. Higher areal density means higher capacities to meet storage challenges.
20TB1 HDDs with OptiNAND Technology
OptiNAND integrates an iNAND® Universal Flash Storage (UFS) Embedded Flash Drive (EFD) with traditional spinning disk media, and incorporates innovative changes to the firmware algorithm and system-on-a-chip (SoC). OptiNAND is not a hybrid technology. The drive works smarter, with enhanced firmware algorithms taking advantage of expanded metadata that has been offloaded to the iNAND, enabling more tracks per inch (TPI) with resulting increased areal density.
The Ultrastar DC HC560, with the first implementation of OptiNAND technology’s capacity-enabling features, delivers an unbeaten 20TB capacity in a nine-disk platform (2.2TB/platter) with CMR recording format
Specifications
| Software | |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Hard drive | |
| Component for | Server/workstation |
| HDD sustained transfer rate | 257 MiB/s |
| HDD interface transfer rate | 6 Gbit/s |
| Workload rate limit | 550 TB/year |
| Average latency | 4.16 ms |
| Mean time between failures (MTBF) | 2.5 h |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| HDD capacity | 20 TB |
| Features | |
| Type | HDD |
| Component for | Server/workstation |
| HDD sustained transfer rate | 257 MiB/s |
| HDD interface transfer rate | 6 Gbit/s |
| Workload rate limit | 550 TB/year |
| Interface | Serial ATA |
| Average latency | 4.16 ms |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mean time between failures (MTBF) | 2.5 h |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| HDD capacity | 20 TB |
| Storage drive buffer size | 512 MB |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^15 bits read |
| 24/7 operation | Yes |
| Power | |
| Operating voltage | 5 / 12 V |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating vibration | 0.7 G |
| Operating shock | 50 G |
| Non-operating vibration | 1.04 G |
| Non-operating shock | 250 G |
| Technical details | |
| Harmonized System (HS) code | 84717050 |
| Interface | Serial ATA |
| Mean time between failures (MTBF) | 2.5 h |
| Weight & dimensions | |
| Width | 101.6 mm |
| Weight | 690 g |
| Height | 147 mm |
| Depth | 26.2 mm |
| Logistics data | |
| Harmonized System (HS) code | 84717050 |
| Other features | |
| Interface | Serial ATA |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
