Thunderbolt Dock 120W G4

Key Features

• Feel safe and secure from the moment you log in. The HP Thunderbolt G4 Dock with HP Sure Start^[3] prevents hackers from using the dock to attack the network and the attached notebook. Everything connected to this dock is protected and meets full NIST 800-193 requirements.
• Focus on your work and not your compatibility^[1] with a dock that works seamlessly with most notebooks and operating systems. Whether you use Windows, Mac, or Chrome OS—rigorous testing and certifications ensure that one USB-C® cable^[4] connects your device and peripherals without issue.
• Multitask, create, and collaborate faster with a dock that supports up to four 4K displays through superfast Thunderbolt™ 4 technology^[2] and has double the ethernet speed for faster downloads^[5]. This dock also delivers up to 100W of power—enough to charge most notebooks.
• Manage your mixed fleet more efficiently with wired Intel® vPro™ support that allows authorized administrators to remotely access and manage vPro™ enabled notebooks using wired connections to make updates. IT Managers can also plan dock firmware updates anytime, even after the user disconnects through a one click installer^[6].

Reasons To Buy

The Power To Be Productive.

Multitask, create, and collaborate faster with a dock that supports up to four 4K displays through superfast Thunderbolt™ 4 technology^[2] and has double the ethernet speed for faster downloads^[5]. This dock also delivers up to 100W of power—enough to charge most notebooks.

The Dock that Protects your Connected Devices.

Feel safe and secure from the moment you log in. The HP Thunderbolt G4 Dock with HP Sure Start^[3] prevents hackers from using the dock to attack the network and the attached notebook. Everything connected to this dock is protected and meets full NIST 800-193 requirements.

Expanded Compatibility. Easy Connectivity.

Focus on your work and not your compatibility^[1] with a dock that works seamlessly with most notebooks and operating systems. Whether you use Windows, Mac, or Chrome OS—rigorous testing and certifications ensure that one USB-C® cable^[4] connects your device and peripherals without issue.

Electronic Asset Management for Your Docks

Empower your IT to manage and track your docks by product name, serial number, and MAC Address from anywhere with the time-saving, easy-to-use Electronic Tag (eTag) asset management tool^[6].

Thoughtful Product Packaging

HP is committed to reducing plastic in landfills by using recyclable, fiber-based, and sustainably sourced packaging^[7] that meets recycling requirements, so it can stay out of the landfill^[8] when customers are finished with it.

We Test So You Can Rest

Rigorous testing^[9] helps assure dock compatibility across select HP notebooks and select Apple®, Dell, and Lenovo notebooks with USB-C® power ports^[9].

1-year Limited Warranty

Get added peace of mind with a 1-year limited warranty that includes technical support, diagnostic services, and hardware replacement.

Modern Device Manageability

With Intel® vPro™ Active Management Technology, authorized administrators can remotely access notebooks using wired connections, even if turned off, to make updates.

More Ports. More Flexibility.

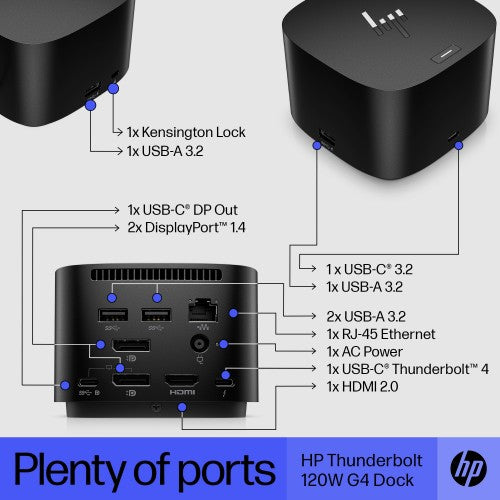

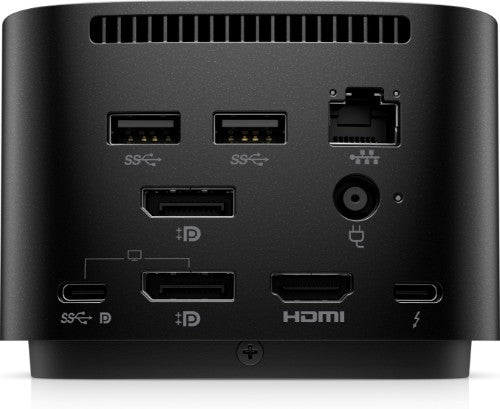

More ports means more capabilities. With a TB4™, HDMI, two USB-C®, two DisplayPorts™, four USB-A 3.2 ports and an RJ45 port, you can connect multiple devices like a keyboard and mouse^[10].

Description

The Dock That Does It All
Boost your security, productivity, and connectivity with this Thunderbolt™ 4 dock. It protects your network and devices from the moment you log in, supports multi-OS compatibility^[1], and can support up to four 4K displays^[2]. Ideal for ITDMs and hybrid workers, this dock also makes home or office device management easy.

Specifications

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Host interface	Thunderbolt 4
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0
DisplayPorts quantity	2
Microphone in	No
Headphone outputs	0
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
DisplayPort version	1.4
Network
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Performance
Country of origin	China, Taiwan
Product colour	Black
Card reader integrated	No
Cable lock slot	Yes
Cable lock slot type	Kensington
Technical details
Product colour	Black
Cable lock slot	Yes
Harmonized System (HS) code	84733020
General Product Safety Regulation (GPSR) URL	https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true
HP GTIN (EAN/UPC)	196068757403, 196068757434
HP GTIN (EAN/UPC) with options	(ABB) 196068757403; (ABU) 196068757434
Storage
Card reader integrated	No
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Output voltage	19.5 V
Output current	6.15 A
Software
Windows operating systems supported	Windows 10, Windows 11
Mac operating systems supported	Yes

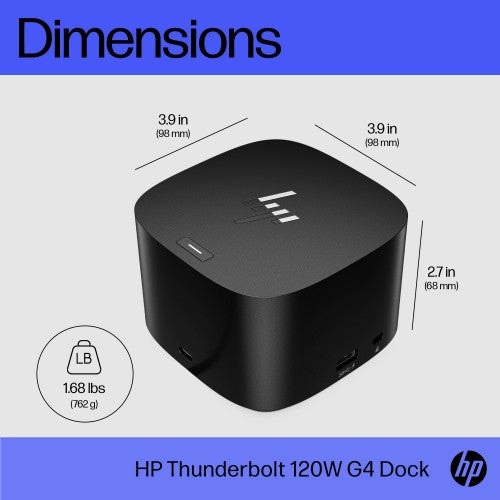

Weight & dimensions
Weight	760 g
Width	98 mm
Depth	98 mm
Height	68 mm
Package weight	760 g
Package width	275 mm
Package depth	143 mm
Package height	148.5 mm
Design
Windows operating systems supported	Windows 10, Windows 11
Mac operating systems supported	Yes
Country of origin	China, Taiwan
Product colour	Black
Cable lock slot	Yes
Cable lock slot type	Kensington
Packaging data
Package weight	760 g
Package width	275 mm
Package depth	143 mm
Package height	148.5 mm
Brand-specific features
HP GTIN (EAN/UPC)	196068757403, 196068757434
HP GTIN (EAN/UPC) with options	(ABB) 196068757403; (ABU) 196068757434
Logistics data
Harmonized System (HS) code	84733020
