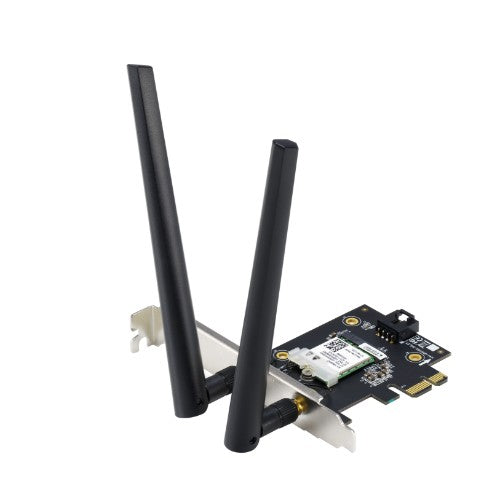

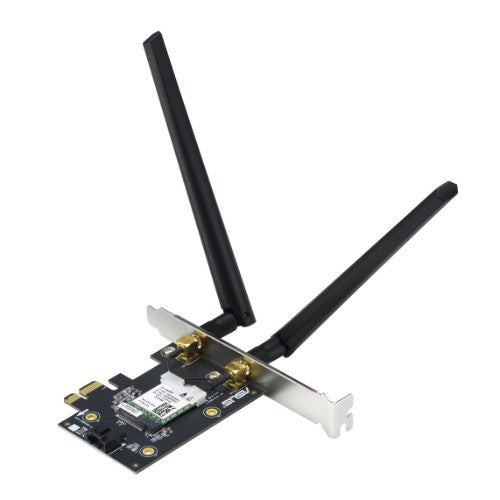

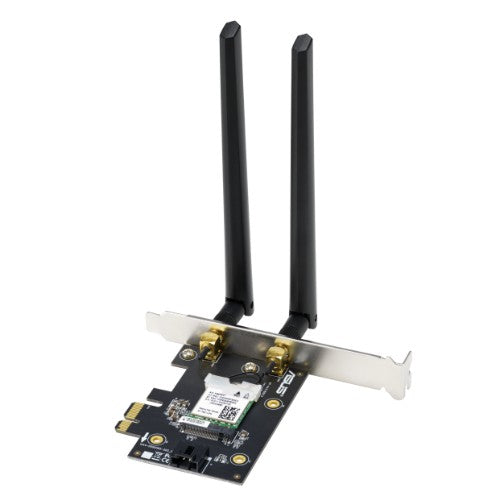

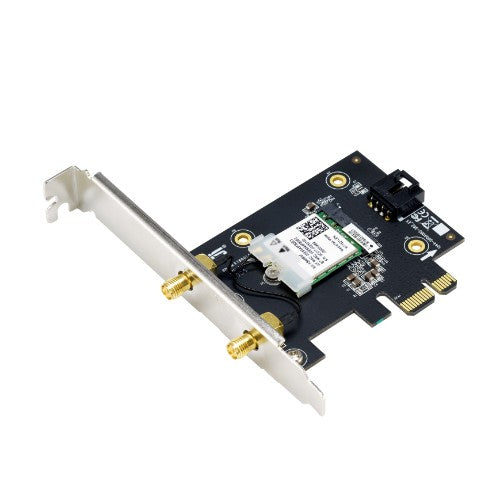

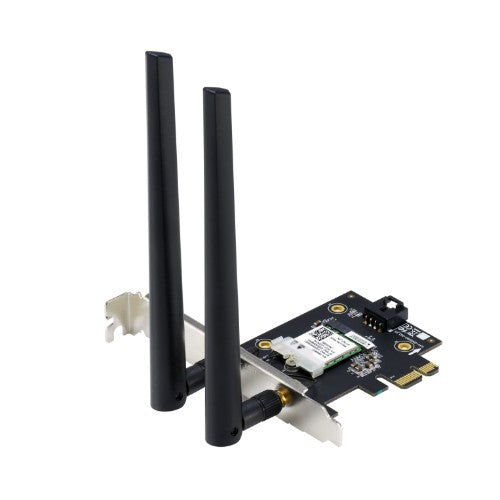

AX1800 Dual Band PCI-E WiFi 6 (802.11ax). Bluetooth 5.2, WPA3 network security, OFDMA and MU-MIMO

Key Features

• Next-Gen WiFi Standard – WiFi 6 (802.11ax) standard for better efficiency and throughput.
• Ultrafast WiFi Speed -1800 Mbps WiFi speed to handle even the busiest network with ease.
• 802.11ax technology -With OFDMA and MU-MIMO, WiFi 6 enables more efficient, stable, and faster transmission even when multiple devices are transmitting data at the same time.
• Bluetooth 5.2 for faster, further coverage - Bluetooth 5.2 not only allows to transfer data up to twice as fast as before, and with 4X the range, it also lengthens the battery, and improves the audio quality.
• The Latest WPA3 Network Security —providing your PC with an extra layer of protection against external attacks to give you added peace of mind.

Description

1.5X Faster WiFi, Even in Crowded Networks With WiFi 6 (802.11ax) technology, ASUS PCE-AX1800 delivers wireless speeds that are up to 1.5X faster than WiFi 5 (802.11ac) devices. A revolutionary combination of OFDMA and MU-MIMO technologies ensures the most efficient WiFi connection for your PC. PCE-AX1800 only supports PCI-Express x1 standard, please install the adapter in PCI-e x1 slot. Still Fast, Even In Crowded Network ASUS PCE-AX1800 pairs trusted MU-MIMO connectivity and innovative OFDMA technology to efficiently allocate bandwidth and communicate with multiple devices simultaneously. The upshot is smoother WiFi connections and the fastest attainable speeds for all devices*. *Disclaimer: MU-MIMO supported router and client required Instant Bluetooth Upgrade – Faster Speed and better audio quality Slot ASUS PCE-AX1800 into your PC for an instant upgrade to the latest Bluetooth 5.2 technology. Bluetooth 5.2 not only allows to transfer data up to twice as fast as before, and with 4X the range, it also lengthens the battery, and improves the audio quality. The Latest WPA3 Network Security ASUS PCE-AX1800 comes with the latest WPA3 Wi-Fi security standard, providing your PC with an extra layer of protection against external attacks to give you added peace of mind.

Specifications

Ports & interfaces
Internal	Yes
Interface	WLAN / Bluetooth
Host interface	PCI Express
Connectivity technology	Wireless
Bandwidth
Maximum data transfer rate	1775 Mbit/s
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
Antenna
Antenna	Yes
Network
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
Bluetooth version	5.2
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	1775 Mbit/s
Bluetooth	Yes
Design
Antenna	Yes
Internal	Yes
Component for	PC
Antenna design	External
Software
Windows operating systems supported	Windows 10 x64
System requirements
Windows operating systems supported	Windows 10 x64
Weight & dimensions
Width	120 mm
Depth	88 mm
Height	22 mm
Weight	49.4 g
Package width	180 mm
Package depth	138 mm
Package height	50 mm
Package weight	250 g
Packaging data
Package width	180 mm
Package depth	138 mm
Package height	50 mm
Package weight	250 g
Performance
Windows operating systems supported	Windows 10 x64
Technical details
Harmonized System (HS) code	85176990
Other features
Bluetooth version	5.2
Bluetooth	Yes
Harmonized System (HS) code	85176990
