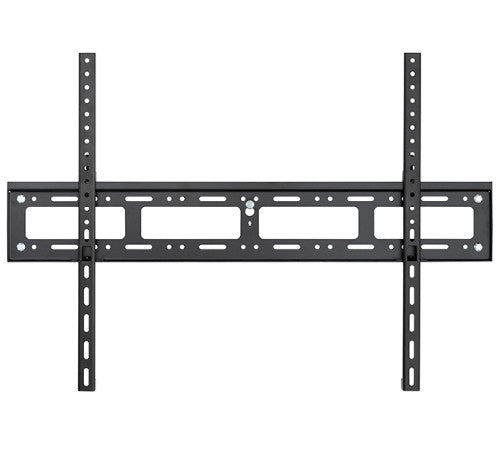

XL Flat Screen Wall Mount For Screens Up To 86”

Key Features

• Central keyhole for easy installation
• Low profile design mounts screen close to the wall
• Lateral adjustment of screen once mounted
• Levelling screws allow adjustment of screen height

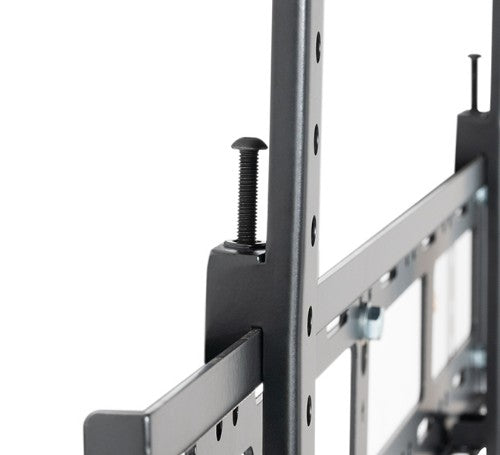

• Safety screws allow adjustment of screen height

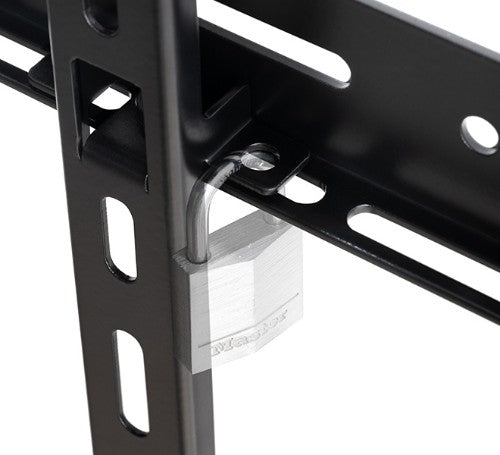

• Padlock tabs on arms for additional security (padlock not included)
• Simple ‘hook-on’ installation with all mounting hardware included

Description

Designed for extra large sized screens, the XRWALLFXL supports weights up to 100kg and features a low-profile design that mounts screens just 30mm from the wall. The universal interface accommodates VESA mounting patterns up to 800 x 600 and comes with adjustment screws which allow the screen to be levelled once mounted.

Specifications

Mounting
Mounting type	Wall
Minimum screen size	127 cm (50")
Number of displays supported	1
Minimum VESA mount	200 x 100 mm
Maximum VESA mount	800 x 600 mm
Maximum screen size	2.18 m (86")
Maximum weight capacity	100 kg
Ergonomics
Height adjustment	Yes
Distance to the wall (max)	3 cm
Technical details
Number of displays supported	1
Distance to the wall (max)	3 cm
Product colour	Black
Mounting type	Wall
Master (outer) case net weight	16.3 kg
Quantity per pack	1 pc(s)
Design
Accepts padlock	Yes
Product colour	Black
Packaging content
Mounting kit	Yes
Weight & dimensions
Width	900 mm
Height	628 mm
Packaging data
Mounting kit	Yes
Logistics data
Products per master (outer) case	1 pc(s)
Master (outer) case net weight	16.3 kg
Harmonized System (HS) code	83024200
Other features
Mounting type	Wall
