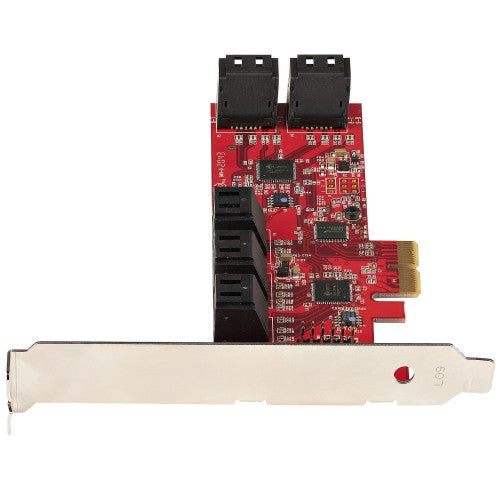

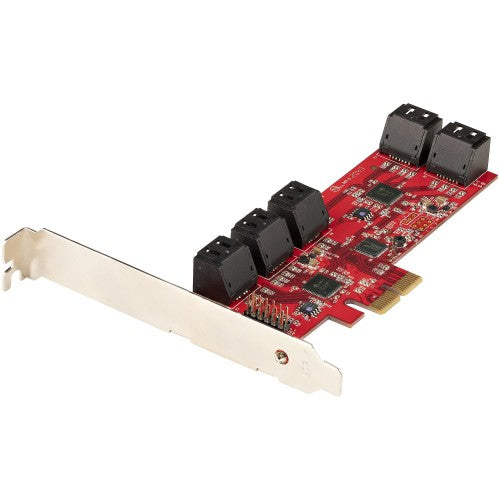

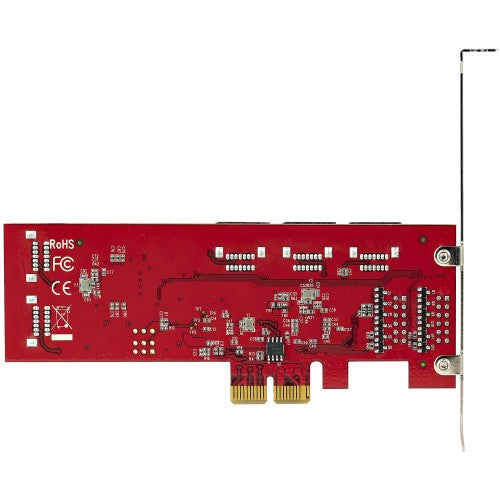

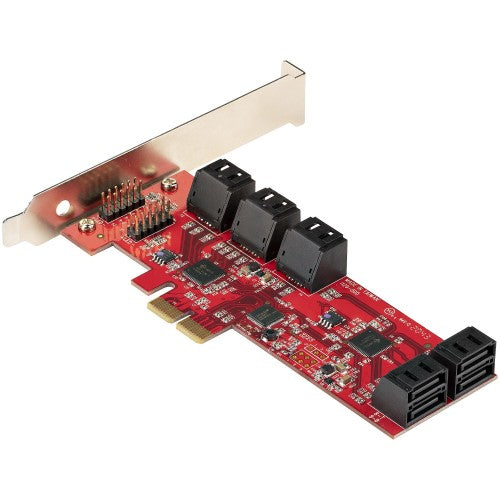

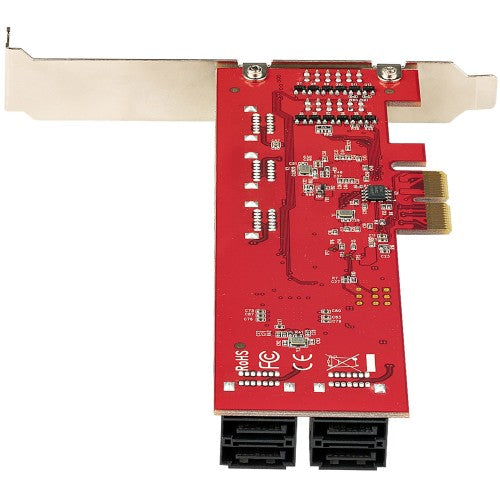

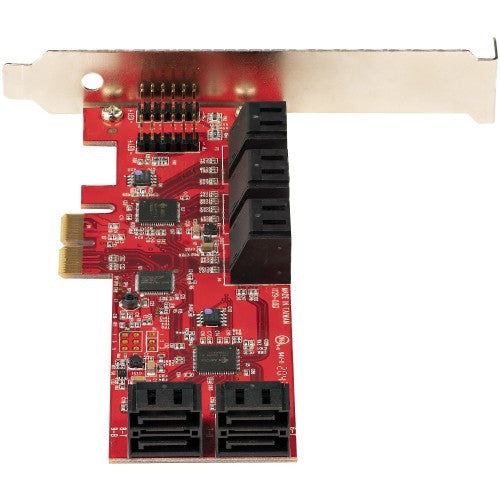

StarTech.com SATA PCIe Card - 10 Port PCIe SATA Expansion Card - 6Gbps - Low/Full Profile - Stacked SATA Connectors - ASM1062 Non-Raid - PCI Express to SATA Converter/Adapter (10P6G-PCIE-SATA-CARD)

Description

SATA III (6Gbps) | PCI Express 2.0 | PCIe x2 Slot | 10x SATA Connectors | 2-Year Warranty

This 10-port SATA III (6Gbps) controller enables you to add 10 SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x2 card slot. The card supports SATA III and PCI-Express 2.0 Specifications.

ASM1062 to Deliver 10-Port SATA 6Gbps Performance

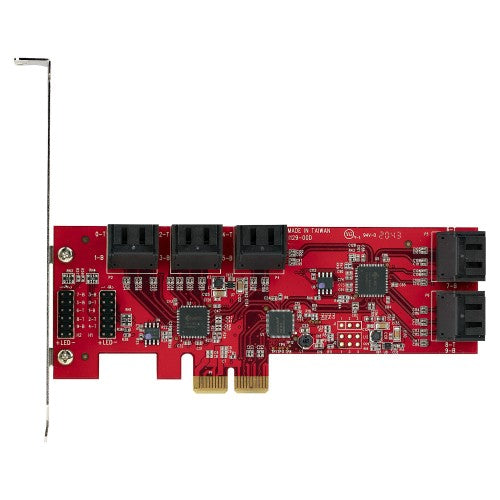

Featuring the ASM1062 controller, this SATA card enables the connection of 10 high-performance SATA 6Gbps drives with a combined total throughput of up to 8Gbps. The SATA drives are connected via ten individual SATA ports located on the card (SATA cables sold separately).

Wide Compatibility

The controller card is widely supported across all popular operating system platforms including Windows (7,8,10, 11), macOS (10.10 and above) and Linux (2.6.32 and above). The card also supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately).

To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with support for PCIe 2.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1) at lower performance.

Hassle-Free Installation

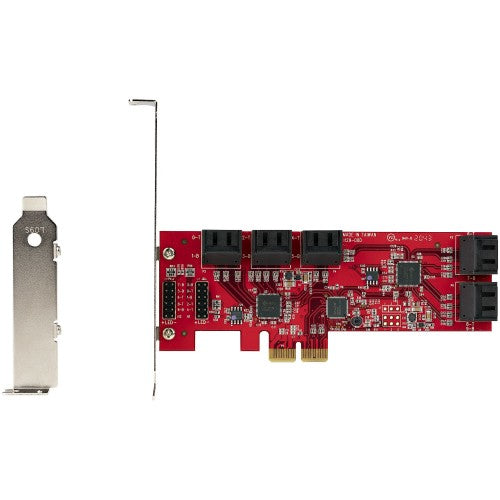

The SATA controller card features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft), RAID Assistant (MacOS) and mdraid/mdadm (Linux), for hassle-free setup, partitioning and software RAID array building.

10P6G-PCIE-SATA-CARD is backed by a StarTech.com 2-year warranty and free lifetime 24/5 North American based, multi-lingual support.

The StarTech.com Advantage

Specifications

Ports & interfaces
Internal	Yes
Port multiplier	Yes
Output interface	SATA
Internal SATA ports quantity	10
Host interface	PCIe
Expansion card standard	PCIe 2.0
Technical details
Chipset	ASMedia - ASM1062
Data transfer rate (max)	6 Gbit/s
Compliance certificates	CE, RoHS
Performance
Port multiplier	Yes
Chipset	ASMedia - ASM1062
Data transfer rate (max)	6 Gbit/s
Product colour	Red
TRIM support	Yes
S.M.A.R.T. support	Yes
Harmonized System (HS) code	84733020
Colour
Product colour	Red
Design
Internal	Yes
Product colour	Red
Features
Chipset	ASMedia - ASM1062
Data transfer rate (max)	6 Gbit/s
TRIM support	Yes
S.M.A.R.T. support	Yes
Harmonized System (HS) code	84733020
Operational conditions
Operating temperature (T-T)	0 - 85 °C
Storage temperature (T-T)	-25 - 85 °C
Operating relative humidity (H-H)	20 - 80%
System requirements
Windows operating systems supported	Windows 7 Ultimate x64, Windows 10, Windows 7 x64, Windows 10 Education, Windows 8, Windows 10 Education x64, Windows 7, Windows 8 Enterprise, Windows 10 Enterprise, Windows 7 Enterprise, Windows 8 Enterprise x64, Windows 10 Enterprise x64, Windows 7 Enterprise x64, Windows 8 Pro, Windows 10 Home, Windows 7 Home Basic, Windows 8 Pro x64, Windows 10 Home x64, Windows 7 Home Basic x64, Windows 8 x64, Windows 10 IOT Core, Windows 7 Home Premium, Windows 8.1, Windows 10 IoT Enterprise, Windows 7 Home Premium x64, Windows 8.1 Enterprise, Windows 10 Pro, Windows 7 Professional, Windows 8.1 Enterprise x64, Windows 10 Pro x64, Windows 7 Professional x64, Windows 8.1 Pro, Windows 10 x64, Windows 7 Starter, Windows 8.1 Pro x64, Windows 11, Windows 7 Starter x64, Windows 8.1 x64, Windows 11 x64, Windows 7 Ultimate
Mac operating systems supported	Mac OS X 10.13 High Sierra, Mac OS X 11.0 Big Sur, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.10 Yosemite, Mac OS X 10.15.3 Catalina, Mac OS X 10.11 El Capitan, Mac OS X 13.0 Ventura
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2019, Windows Server 2012 R2, Windows Server 2016
Weight & dimensions
Width	54 mm
Depth	139 mm
Height	16 mm
Weight	75 g
Package width	142 mm
Package depth	175 mm
Package height	30 mm
Package weight	120 g
Packaging data
Mounting brackets included	Yes
Package width	142 mm
Package depth	175 mm
Package height	30 mm
Package weight	120 g
Quick installation guide	Yes
Logistics data
Products per master (outer) case	60 pc(s)
Master (outer) case width	500 mm
Master (outer) case length	370 mm
Master (outer) case height	310 mm
Harmonized System (HS) code	84733020
Packaging content
Mounting brackets included	Yes
Quick installation guide	Yes
Other features
Chipset	ASMedia - ASM1062
