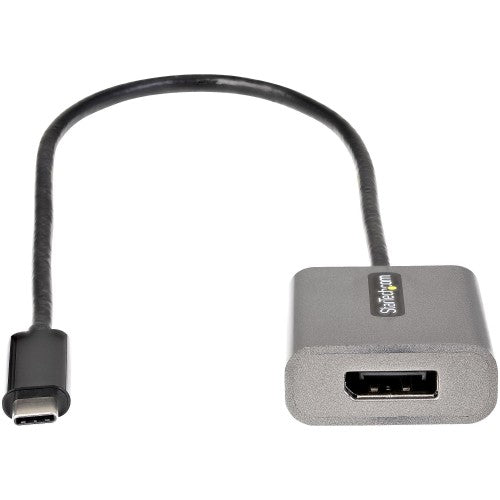

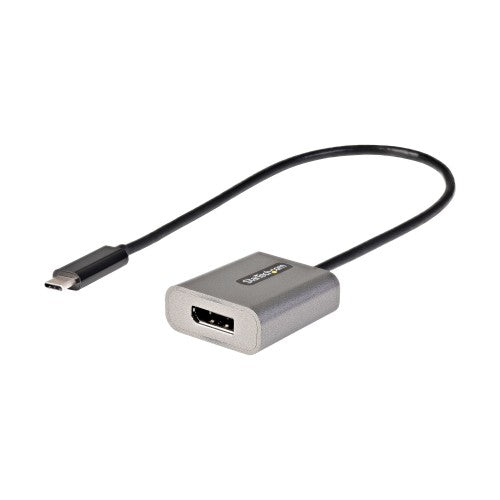

StarTech.com USB C to DisplayPort Adapter - 8K/4K 60Hz USB-C to DisplayPort 1.4 Adapter Dongle - USB Type-C to DP Monitor Video Converter - Works w/Thunderbolt 3 - w/12" Long Attached Cable (CDP2DPEC)

Key Features

• HIGH PERFORMANCE: USB C to DisplayPort 1.4 adapter connects a single DP display supporting up to 8K 60Hz with DSC (8K 30Hz without DSC) & 4K 60Hz UHD (3840x2160) / DP Alt Mode / HBR3 / 32.4Gbps / 2ch Audio / HDCP 2.2/1.4 / Backward compatible w/ 1080p
• EXTRA LONG CABLE: USB-C to DisplayPort display adapter with 12"" (30cm) attached cable for extended reach to reduce port/connector strain on 2-in-1 devices like Surface Pro 7, iPad Pro & laptops on risers stands / Compact, portable design
• DEVICE COMPATIBILITY: Works w/ Dell XPS, Precision, Latitude, Lenovo ThinkPad X1 Carbon, Extreme, Surface Laptop 3, Pro 7, MacBook Pro/Air (Intel Processor & M1 Chip), HP EliteBook, Chromebook / Requires Intel 11th Gen w/DSC (or later) for DP 1.4 8K 60Hz
• DISPLAY COMPATIBILITY: USBC to DP external video adapter/converter has been tested for peak performance at 8K/4K 60Hz on a range of DP monitors incl. brands like Dell UltraSharp, Samsung, Asus ProArt, Acer & LG / Supports ultrawide displays (3440x1440)

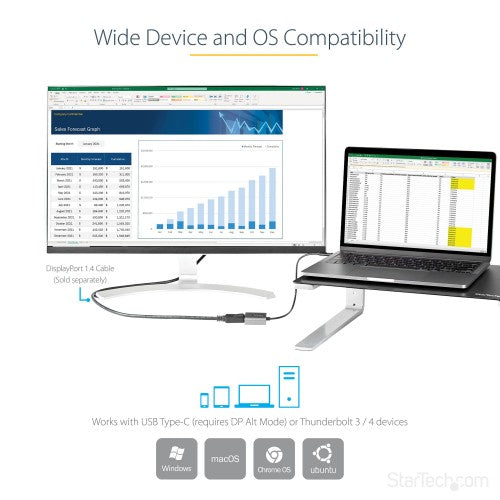

• EASY TO USE: USB-C to DP adapter dongle supports driverless setup and is OS independent; Works w/any USB Type-C (DisplayPort over USB-C) or Thunderbolt 3 (TB3) device / Recommend using a StarTech.com DisplayPort 1.4 cable (DP14MM2M) to support DSC 8K 60Hz

Description

Extended Cable | DP 1.4 | HBR3 | Thunderbolt 3 Compatible

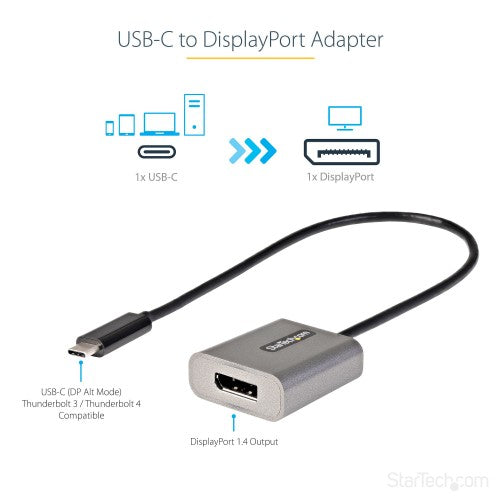

This USB-C™ to DisplayPort™ adapter enables you to output DP video and audio from the USB Type-C™ port on your laptop, tablet, smartphone or other USB C device.

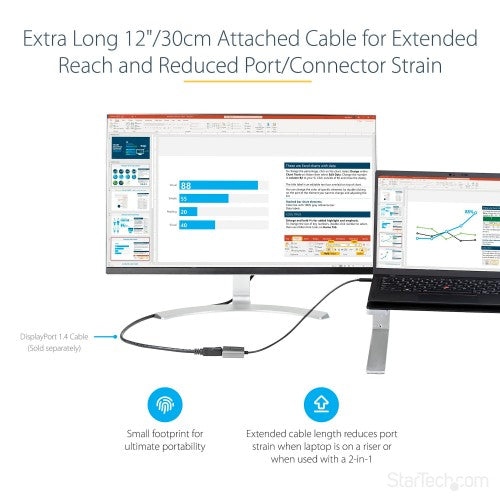

Extended Cable Length

This USB C adapter is equipped with an extra-long 12" (30cm) attached cable, providing an extended reach to reduce port and connector strain on 2-in-1 devices or laptops on risers stands.

Ultra HD 4K & 8K Resolution

The adapter lets you harness the video capabilities that are built into your computer's USB Type-C connection, to deliver the astonishing quality of UHD to your 4K 60Hz display. This makes it easier for you to multitask while working on the most resource-demanding applications imaginable.

With this adapter, you can also achieve an output resolution of up to 7680x4320 at 60Hz (with a laptop supporting DP 1.4 and DSC) or 7680x4320 at 30Hz (without DSC), which is perfect for performing high-resolution tasks such as viewing 8K video. Plus, the DP 1.4 adapter is backward compatible with 1080p displays, which makes it a great accessory for home, office or other workspace applications while future-proofing for 8K implementation.

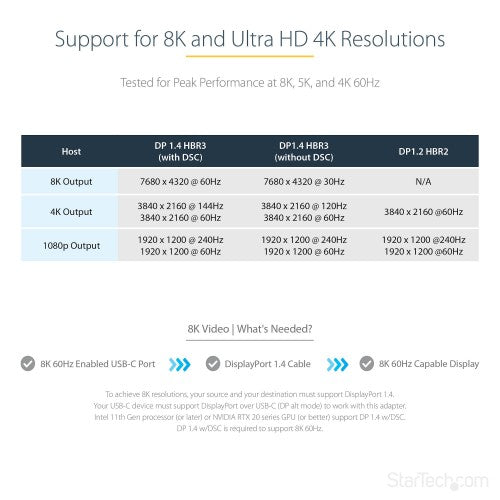

Host

DP 1.4 HBR3 (with DSC)

DP 1.4 HBR3 (without DSC)

DP 1.2 HBR2

8K Output

7680x4320 @ 60Hz

7680x4320 @ 30Hz

N/A

4K Output

3840x2160 @ 60Hz

3840x2160 @ 60Hz

3480x2160 @ 60Hz

1080p Output

1920x1200 @ 60Hz

1920x1200 @ 60Hz

1920x1200 @ 60Hz

Ultimate Portability

This USB Type-C video adapter is highly portable with a small footprint and lightweight design that's easy to tuck into your laptop bag while commuting between your home, office or traveling for business.

The CDP2DPEC is backed by a 3-year StarTech.com warranty and free lifetime technical support.

Notes:

• To achieve 8K resolutions, your source and your destination must support DisplayPort 1.4
• Your USB-C device must support DisplayPort over USB-C (DP alt mode) to work with this adapter

The StarTech.com Advantage

Specifications

Performance
USB connector form factor	Straight
Chipset	VL103
USB connector type	USB Type-C
USB connector gender	Male
Data transfer rate (max)	32.4 Gbit/s
DVI output	No
HDMI output	No
DisplayPort output	Yes
Number of displays supported	1
HDCP	Yes
DisplayPort version	1.4
Maximum resolution	7680 x 4320 pixels
Refresh rate at maximum resolution	60 Hz
Audio output channels	2.0 channels
DisplayPorts quantity	1
Design
Product colour	Black, Grey
Housing material	Plastic
Integrated USB cable	Yes
USB cable length	0.3 m

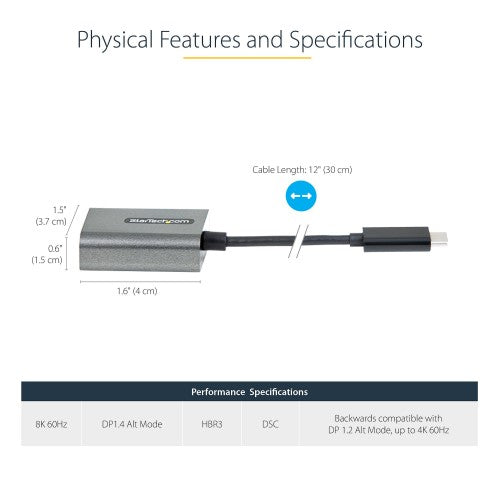

Weight & dimensions
Width	38 mm
Depth	390 mm
Height	15 mm
Weight	26 g
USB cable length	0.3 m
Package width	125 mm
Package depth	225 mm
Package height	16 mm
Package weight	32 g
Technical details
Products per master (outer) case	200 pc(s)
Master (outer) case width	330 mm
Master (outer) case length	500 mm
Master (outer) case height	220 mm
Harmonized System (HS) code	84733020
Compliance certificates	CE, RoHS
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 85%
Packaging data
Package width	125 mm
Package depth	225 mm
Package height	16 mm
Package weight	32 g
Logistics data
Products per master (outer) case	200 pc(s)
Master (outer) case width	330 mm
Master (outer) case length	500 mm
Master (outer) case height	220 mm
Harmonized System (HS) code	84733020
