StarTech.com USB C Multiport Adapter - USB-C to 4K 60Hz HDMI 2.0, 100W Power Delivery Pass-Through Charging, 3-Port USB 3.0 Hub, Audio - USB-C Mini Dock - Portable USB Type-C Travel Dock (DKT30ICHPD)

Key Features

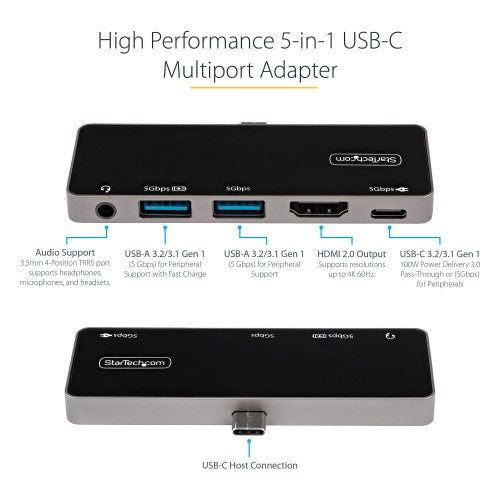

• 5-IN-1 FUNCTIONALITY: USB-C multiport adapter (USB 3.1/3.2 Gen 1 5Gbps) with DP 1.4 Alt Mode supports up to 4K 60Hz HDMI 2.0 (HDR) video, 2-Port USB-A Hub (1x BC1.2 fast charge), TRRS audio for headset/mic, and 1x USB-C (Data + Power Delivery 3.0)

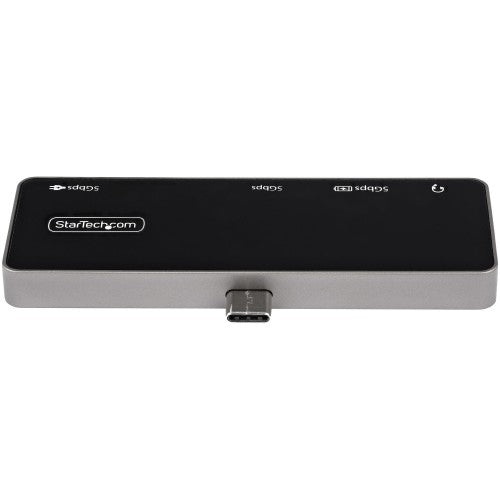

• CABLE-FREE USB-C HOST CONNECTION: USB C multiport adapter features a built-in, center positioned USB-C connector for a flush cableless connection to iPad Pro, Surface Pro 7, Google Pixelbook, and other USB-C tablets, Chromebooks and laptops
• RELIABLE PERFORMANCE: USB bus powered or via external USB-C power adapter; 100W Power Delivery 3.0 pass through with 8W reserved for adapter to avoid video flickering, device dropouts or overdrawing power common in other hubs; up to 92W for laptop charging

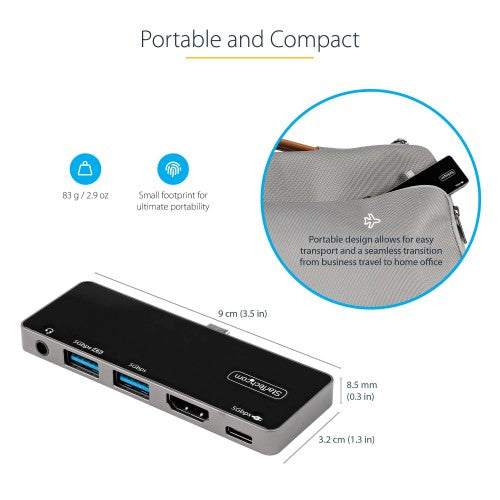

• PORTABLE & COMPACT: Portable docking station design allows for easy transport either separately in laptop bag or left connected to laptop for convenient on-the-go use, business travel or work from home
• WIDE OPERATING SYSTEM COMPATIBILITY: With automatic driver installation for easy installation, this universal USB Type-C multiport adapter supports all major operating systems such as Windows, macOS, iPadOS, ChromeOS

Description

USB-C™ Multiport Adapter | Mac & Windows® | 4K 60Hz | DP1.4 Alt-Mode | HDMI 2.0 | Thunderbolt™ 3 Compatible

This USB-C multiport adapter with DP 1.4 compatibility turns your iPad Pro, Surface Pro 7, Google Pixelbook and other USB-C™ tablets and laptops into a workstation, anywhere you go. The USB Type-C multiport adapter provides 4K 60Hz HDMI (HDR10) video output, a USB Type-C™ port (data/power), two USB 3.2 Gen 1 Type-A (5Gbps) ports, and a TRRS 4-channel audio port for headset and mic, all through a single connection to your laptop's USB-C or Thunderbolt 3™ port.

It offers advanced charging through USB 100W Power Delivery 3.0 and eliminates the need for an attached cable with a direct/flush USB-C connection

Enhance Productivity

The portable docking station features DP 1.4 support from the host side and supports a single HDMI monitor resolution up to 4K 60Hz (4096 x 2160p), when connected to devices that support DP 1.4, to create a powerful workstation.

DP Alt Mode Required

Maximum Resolution

DP 1.2 Alternate Mode

Up to 4K 30Hz

DP 1.4 Alternate Mode

Up to 4K 60Hz

Connect Your Devices

The USB-C to USB 3.2 Gen 1 hub gives you two USB-A ports (one BC 1.2 charging port) and a USB-C port (shared for power or data) to connect your USB devices.

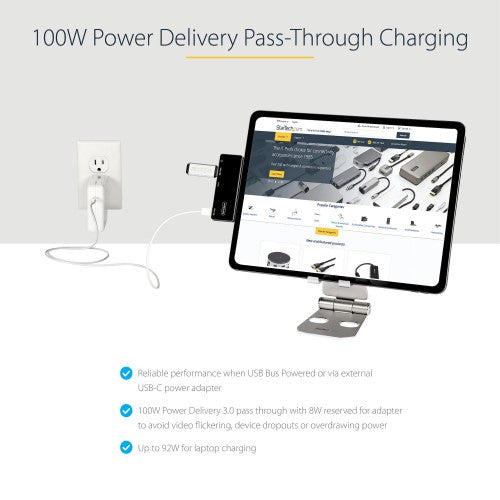

Charge Your Laptop and Peripherals

With support for USB Power Delivery 3.0 (up to 100W), the USB Type-C multiport adapter lets you power and charge your laptop, and power your peripherals when connected to a USB-C power adapter. The multiport adapter itself reserves 8W leaving up to 92W of power for charging. PD 3.0 features Fast Role Swap to prevent USB data disruption when you switch power sources (USB-C power adapter to bus power).

The DKT30ICHPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Note: To ensure full adapter functionality, your laptop's USB-C port must support USB Power Delivery.

The StarTech.com Advantage

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Headphone connectivity	3.5 mm
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
HDMI ports quantity	1
HDMI version	2.0
Headphone outputs	1
Connectivity technology	Wired
USB Power Delivery	Yes
USB Power Delivery up to	100 W
Network
Ethernet LAN	No
Performance
Maximum digital resolution	3840 x 2160 pixels
Number of displays supported	1
Product colour	Black, Silver
Card reader integrated	No
Data transfer rate	5 Gbit/s
HD type	4K Ultra HD
Maximum refresh rate	60 Hz
Technical details
Product colour	Black, Silver
Data transfer rate	5 Gbit/s
Harmonized System (HS) code	84733020
Compliance certificates	CE, RoHS
User guide	Yes
Products per master (outer) case	30 pc(s)
Master (outer) case width	450 mm
Master (outer) case length	340 mm
Master (outer) case height	200 mm
Storage
Card reader integrated	No
Power
Power consumption (typical)	8 W
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura
Other operating systems supported	ChromeOS
Mobile operating systems supported	Android, iPadOS
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 85%
Weight & dimensions
Weight	83 g
Width	90 mm
Depth	32 mm
Height	8.5 mm
Package weight	110 g
Package width	142 mm
Package depth	170 mm
Package height	30 mm
Design
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura
Product colour	Black, Silver
Packaging data
Quantity per pack	1 pc(s)
Package weight	110 g
Package width	142 mm
Package depth	170 mm
Package height	30 mm
Packaging content
User guide	Yes
Quantity per pack	1 pc(s)
Logistics data
Products per master (outer) case	30 pc(s)
Master (outer) case width	450 mm
Master (outer) case length	340 mm
Master (outer) case height	200 mm
Harmonized System (HS) code	84733020
Other features
Chipset	VIA Labs - VL102, VIA Labs - VL817, Parade - PS186
