£52.53
Spread the cost over 3, 6 or 12 months with orders over £50.
Spend £97.47 more for free next working day delivery (currently £5.99)
Description
Thunderbolt 4, 2 x USB Type-C, DisplayPort, 2 x Mini-DisplayPort, 40 Gb/s

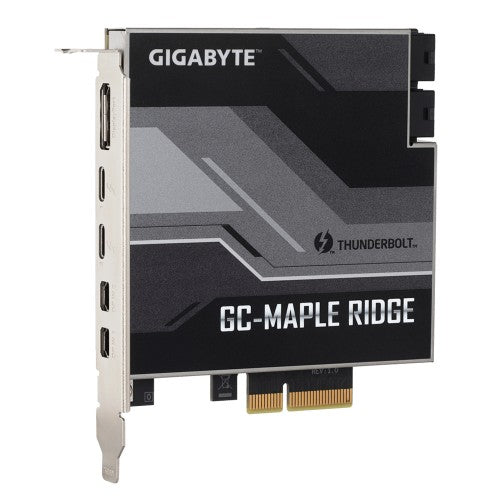

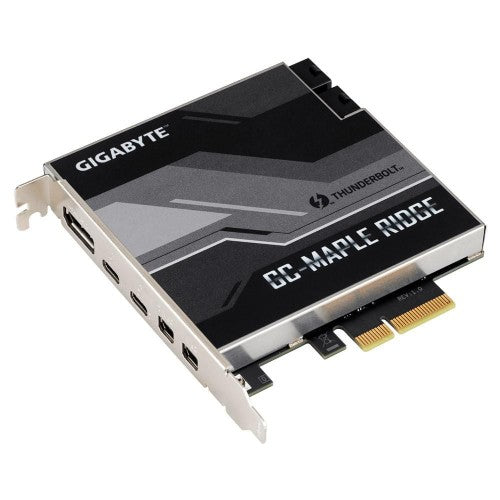

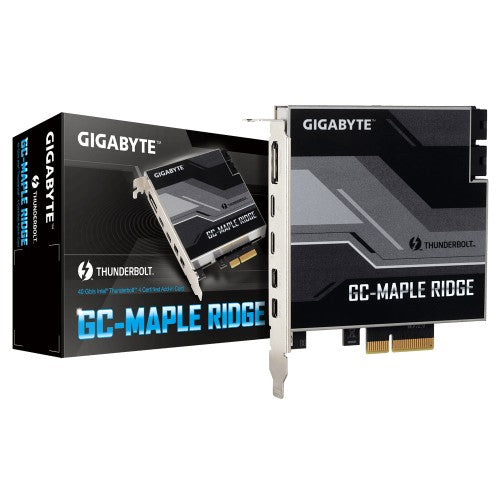

The GC-MAPLE RIDGE offers an easy way to upgrade GIGABYTE Thunderbolt ready motherboards with the new and faster Thunderbolt 4 connectivity without having to upgrade to a whole new system.
Dual Thunderbolt 4 – The fastest 40Gb/s single-wire connection
Delivers speeds of up to 40Gb/s-- that's 2 times faster than Thunderbolt 2 and 8 times faster than USB3. Thunderbolt 4 provides the fastest connection to any dock, display and device. A single port can daisy-chain up to 5 Thunderbolt devices without an additional hub or switch.
Daisy-chain Multiple Devices
Support for DisplayPort 1.4 makes Thunderbolt 4 a must have for any enthusiast. GIGABYTE GC-MAPLE RIDGE support two displays in 4K resolution at 60 FPS. In addition, Thunderbolt 4 over USB Type-C has revolutionary industry-first features such as Power Delivery 3.0, and the ability to daisy-chain up to 10 devices thanks to the dual USB Type-C ports.
Certified Motherboards with GC-MAPLE RIDGE
The GC-MAPLE RIDGE is compatible with GIGABYTE motherboards that featured a Thunderbolt header, refer the list as below.
Key Features
- Intel Thunderbolt 4 Certified add-in card
- Intel JHL8540 Thunderbolt 4 controller
- Dual Thunderbolt 4 Ports (USB Type-C)
- Max Bandwidth 40 Gb/s
- DisplayPort 1.4 Capable with 4K Video Throughout
- Daisy-chain up to 10 Devices (5 devices per port)
- Support PD3.0 standard (up to 97W)
Description
40 Gb/s Intel Thunderbolt 4 Certified Add-in CardThe GC-MAPLE RIDGE offers an easy way to upgrade GIGABYTE Thunderbolt ready motherboards with the new and faster Thunderbolt 4 connectivity without having to upgrade to a whole new system.
Dual Thunderbolt 4 – The fastest 40Gb/s single-wire connection
Delivers speeds of up to 40Gb/s-- that's 2 times faster than Thunderbolt 2 and 8 times faster than USB3. Thunderbolt 4 provides the fastest connection to any dock, display and device. A single port can daisy-chain up to 5 Thunderbolt devices without an additional hub or switch.
Daisy-chain Multiple Devices
Support for DisplayPort 1.4 makes Thunderbolt 4 a must have for any enthusiast. GIGABYTE GC-MAPLE RIDGE support two displays in 4K resolution at 60 FPS. In addition, Thunderbolt 4 over USB Type-C has revolutionary industry-first features such as Power Delivery 3.0, and the ability to daisy-chain up to 10 devices thanks to the dual USB Type-C ports.
Certified Motherboards with GC-MAPLE RIDGE
The GC-MAPLE RIDGE is compatible with GIGABYTE motherboards that featured a Thunderbolt header, refer the list as below.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Output interface | DisplayPort, Mini DisplayPort, Thunderbolt 4, USB 3.2 Gen 2 (3.1 Gen 2) |
| Host interface | PCIe |
| Technical details | |
| Data transfer rate (max) | 40 Gbit/s |
| Performance | |
| Data transfer rate (max) | 40 Gbit/s |
| Product colour | Black, Grey |
| Harmonized System (HS) code | 84733020 |
| Colour | |
| Product colour | Black, Grey |
| Design | |
| Internal | Yes |
| Product colour | Black, Grey |
| Features | |
| Data transfer rate (max) | 40 Gbit/s |
| Harmonized System (HS) code | 84733020 |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
