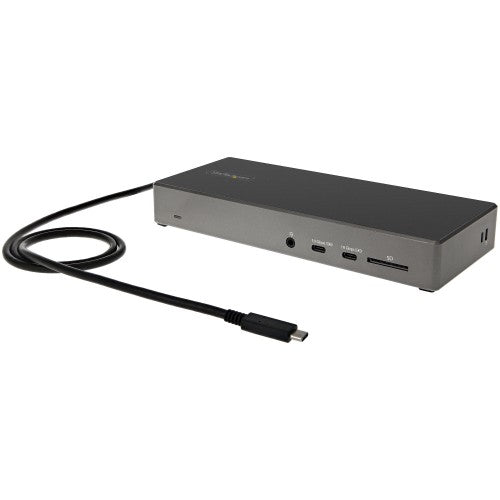

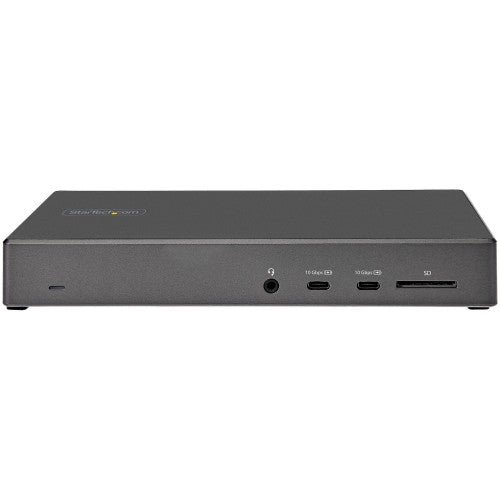

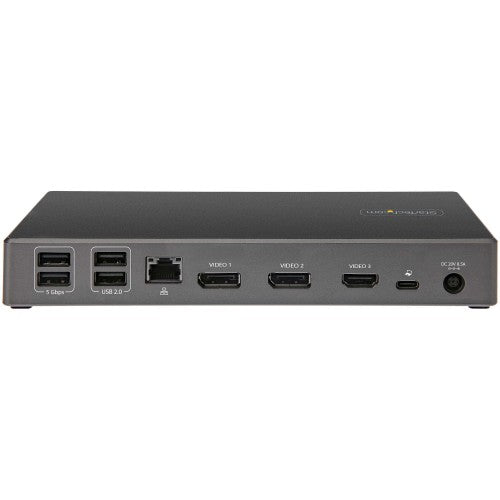

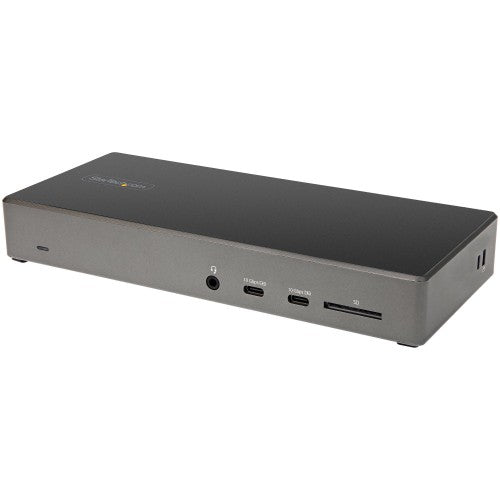

StarTech.com USB C Dock - Triple 4K Monitor USB Type-C Docking Station - 100W Power Delivery - DP 1.4 Alt Mode & DSC, 2x DisplayPort 1.4/HDMI 2.0 - 6xUSB (2x 10Gbps) - Windows/Chrome (DK31C2DHSPDUE)

Description

USB Type-C Docking Station| Triple 4K with DP 1.4 & HDMI 2.0 | 100W PD | 6x Downstream USB Ports

This USB-C Gen 2 10Gbps docking station turns your USB-C ® or Thunderbolt™ 3 Windows laptop or Chromebook into a powerful workstation. A USB 3.2 Gen 2 Type-C dock features everything you need, from triple video outputs up to 4K 60Hz to 10Gbps USB-C & USB-A downstream peripheral ports to 100W Power Delivery.

HDMI & DisplayPort for Multiple Monitor Outputs

This USB-C Gen 2 docking station with DP 1.4 and HDMI 2.0 HBR3 support, is a perfect choice for dual or triple monitor setup, supporting up to triple 4K 30Hz nearly uncompressed video resolution output , with two DisplayPort and one HDMI outputs. Maximum dual and triple 4K display performance is supported on USB-C 11th Gen Intel-based (DP 1.4 HBR3 with DSC support) Windows Thunderbolt 3 or USB-C laptops, but backwards compatibility to older laptop generations and lower resolution monitor requirements.

DP 1.4 HBR3 with DSC Enabled

DP 1.4 HBR3 (without DSC)

DP 1.2 HBR2

Triple Display

Up to 4096 x 2160 @ 30Hz

Up to 1920 x 1080 @ 60Hz

Up to 1600 x 900 @ 60Hz

Dual Display

Up to 4096 x 2160 @ 60Hz*

*HDMI port + DP port or 2 DP ports

Up to 2560 x 1440 @ 60Hz

Up to 1920 x 1080 @ 60Hz

Single Display

Up to 4096 x 2160 @ 60Hz

Up to 3840 x 2160 @ 60Hz

Up to 3840 x 2160 @ 30Hz

Power & Charge with 100W Power Delivery

Power and charge USB-C/Thunderbolt 3 workstation laptops & ultrabooks with 100 watt power delivery, to keep high performance laptops sufficiently charged during heavy productivity usage.

Charge smartphones and other devices with USB-C downstream charging ports featuring BC 1.2 charging specification. Fast-charge ports support always-on charging so devices will charge whether or not a host laptop is connected.

Integrated 6-Port USB Hub & SD Card Reader

This USB-C Gen 2 docking station features 6 downstream USB ports in total to connect USB peripherals and an SD 3.0 UHS-I card reader for media storage.

• 2x USB-C 3.2 Gen 2 - 10 Gbps (BC 1.2 Fast-Charge + Aways-On)
• 2x USB-A 3.2 Gen 1 - 5 Gbps
• 2x USB-A 2.0 - 480 Mbps
• SD 3.0 UHS-I Card Reader

Also included, is a gigabit Ethernet port with PXE Boot, as well as 4-position TRRS stereo audio for a headset and mic.

Additional Security Features

This USB-C docking station comes with plenty of security features two K-slots for a Kensington style laptop lock.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

•

Advanced Windows Layout Utility : To setup and save custom windows layouts.

•

Mac Address Pass-Through Utility : To improve network security.

•

USB Event Monitoring Utility : To track and log connected USB devices

•

Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

The StarTech.com Advantage

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Headphone connectivity	3.5 mm
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0
DisplayPorts quantity	2
Headphone outputs	1
DC-in jack	Yes
Connectivity technology	Wired
USB Power Delivery	Yes
USB Power Delivery up to	100 W
DisplayPort version	1.4
Network
Networking standards	IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Performance
Maximum digital resolution	3840 x 2160 pixels
Number of displays supported	3
Product colour	Black, Grey
Card reader integrated	Yes
Cable lock slot	Yes
LED indicators	Yes
Data transfer rate	10 Gbit/s
Compatible memory cards	MMC, SD
Certification	CE, FCC, RoHS
HD type	4K Ultra HD
Maximum refresh rate	60 Hz
Technical details
Product colour	Black, Grey
Cable lock slot	Yes
Data transfer rate	10 Gbit/s
Harmonized System (HS) code	84733020
Products per master (outer) case	4 pc(s)
Master (outer) case width	390 mm
Master (outer) case length	282 mm
Master (outer) case height	195 mm
Storage
Card reader integrated	Yes
Compatible memory cards	MMC, SD
Power
Power plug type	Type M
Compatible power plug types	EU, UK
AC input voltage	100 - 240 V
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Other operating systems supported	ChromeOS
Mobile operating systems supported	Android 10, Android 9.0, iPadOS
Indication
LED indicators	Yes
Weight & dimensions
Weight	300 g
Width	210 mm
Depth	90 mm
Height	30 mm
Package weight	1.4 kg
Package width	270 mm
Package depth	150 mm
Package height	94 mm
Design
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Product colour	Black, Grey
Cable lock slot	Yes
LED indicators	Yes
Certification	CE, FCC, RoHS
Packaging data
Package weight	1.4 kg
Package width	270 mm
Package depth	150 mm
Package height	94 mm
Packaging content
Quick start guide	Yes
Cables included	USB Type-C to USB Type-C
AC adapter included	Yes
Certificates
Certification	CE, FCC, RoHS
Logistics data
Products per master (outer) case	4 pc(s)
Master (outer) case width	390 mm
Master (outer) case length	282 mm
Master (outer) case height	195 mm
Harmonized System (HS) code	84733020
Other features
Chipset	Cypress - CYPD4236, Synaptics - VMM5320BJG-R
