4x RJ-45, PCIe 2.0 x4, 1GBASE-T, Wake-on-LAN

Key Features

• Energy Efficient Ethernet compliant with IEEE Std 802.3az-2010
• IEEE 802.3ap Clause 73 auto-negotiation
• Quad 10/100/1000BASE-T full-duplex/half-duplex MACs
• Virtualization support with VMware NetQueue and Microsoft VMQ
• Wake-on-LAN support
• Energy Efficient Ethernet (EEE)

Description

Designed for today's enterprise and data center environments, Broadcom's NetXtreme® 1G Ethernet Adapters are the ideal solution for multicore servers, delivering full line-rate throughput across all ports.

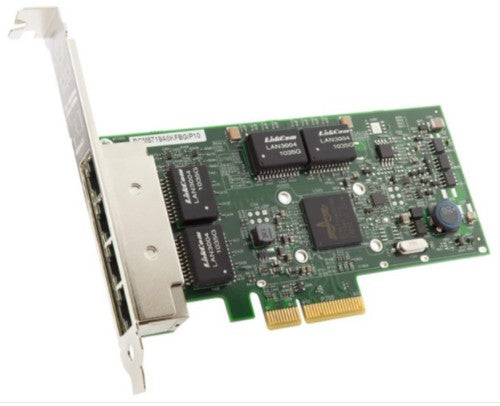

The BCM5719 PCIe NIC is a 13th-generation 10/100/1000BASE-T and 10/100/1000BASE-X Ethernet LAN controller solution for high-performance server and networking applications. The host interface supports a separate PCI Express function for each LAN interface. The BCM5719 includes I/O Virtualization (IOV) features such as 17 receive and 16 transmit queues, and 17 MSI-X vectors with flexible vector-to-queue association. These IOV features enable the BCM5719 to support VMWare® NetQueue and Microsoft® VMQ technologies.

The BCM5719 includes a comprehensive set of hardware features that the system may use to implement IEEE 1588 or IEEE 802.1AS-based time synchronization. These hardware features include a high-precision clock, timestamp registers for receive/transmit packets, and programmable trigger inputs and watchdog outputs.

Specifications

Ports & interfaces
Internal	Yes
PCI version	2.0
Ethernet LAN (RJ-45) ports	4
Interface	Ethernet
Host interface	PCI Express
Connectivity technology	Wired
Bandwidth
Full duplex	Yes
Maximum data transfer rate	1000 Mbit/s
Technical details
Wake-on-LAN ready	Yes
Harmonized System (HS) code	85176990
Compliance certificates	CE, RoHS
Network
Ethernet interface type	Gigabit Ethernet
Jumbo frames	1500
Ethernet LAN	Yes
Cabling technology	10/100/1000BaseT(X)
Networking standards	IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Wake-on-LAN ready	Yes
Jumbo frames support	Yes
Full duplex	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Design
Internal	Yes
Component for	Server
Software
Other operating systems supported	Novell Open Enterprise Server 11, VMware vSphere 5.0+
System requirements
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2, Windows Server 2012
Other operating systems supported	Novell Open Enterprise Server 11, VMware vSphere 5.0+
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Performance
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2, Windows Server 2012
Wake-on-LAN ready	Yes
Other operating systems supported	Novell Open Enterprise Server 11, VMware vSphere 5.0+
Logistics data
Harmonized System (HS) code	85176990
Other features
Jumbo frames	1500
Harmonized System (HS) code	85176990
