LGA1200, 4x DDR4, 2x DP, HDMI, M.2, PCIe x16, 1G LAN, USB, PS/2, mATX, 244x244 mm

Key Features

• Intel LGA 1200 socket: Ready for 11th Gen Intel Core processors
• ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
• Supports SMBUS header that connects to a DASH LAN for remote IT management
• ASUS COM debug header for more efficient troubleshooting
• Event log for capturing and managing detailed system information
• Innovative moisture-resistant coating to protect the motherboard from harsh environments
• Commercial BIOS kit for faster and more efficient customization
• ASUS Control Center Express (ACCE) for easier IT endpoint management
• Ultrafast connectivity: PCIe 4.0, Intel 1 Gb Ethernet and front header for USB 3.2 Gen 1 Type-C

Reasons To Buy

Optimize IT endpoint management

Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely

Automate IT maintenance

Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility

Securely manage all of endpoints

Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices

Description

ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.

ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

ASUS Control Center Express
ASUS Control Center Express is a real-time IT monitoring and management tool designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks. The intuitive dashboard enables easy, real-time hardware and software management across your organization. Purchase of a Pro motherboard entitles you to a copy of Control Center Express – a US$60

Internationally Certified Business Motherboard
ASUS business motherboards are enterprise proven with leading quality that exceeds industry standards. Certified by multiple international safety and environmental organizations, ASUS business motherboards provide a safe, secure and sustainable solution, making them the ideal choice for your business.

PCIe 4.0 Slot
ASUS Intel 500 series business motherboards are designed specifically for 11th Generation Intel Core CPUs and offer PCIe 4.0 connectivity for the devices. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.

ASUS COM Debug Header
This 6-1 pin COM debug header allows for faster and more efficient motherboard troubleshooting. IT administrators can view error and debugging codes to get a better idea of initialization and recovery processes when connecting to a debug card*.
*Third-party debug card sold separately.

24/7 Reliability Test
Optimized for twenty-four seven operations, the motherboard is tested under temperature up to 45°C and relative humidity up to 80% to ensure it can handle diverse temperature and humidity range of different location.

Anti-moisture Coating
Protection against moisture and corrosion
An innovative moisture-resistant coating protects the motherboard in humid environments, such as factories, libraries, data centers and internet cafes. It also minimizes internal corrosion by preventing adhesion and migration of moisture, prolonging the life of the motherboard.

Anti-sulfur Resistors
Consider long-term reliability of commercial product, ASUS business motherboard is equipped with anti-sulfur resistors. The resistors provide excellent resistance to sulfuration by constructed in a high grade ceramic body (aluminum oxide). With anti-sulfur resistors, ASUS business motherboard can be operated under the harsh environments.

LANGuard
Pumped-up throughput. 2.5X higher surge tolerance.
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.

Overvoltage Protection
World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.

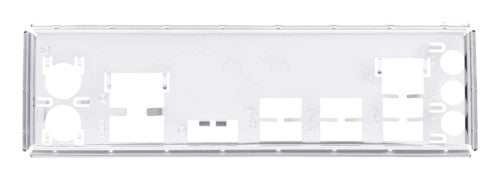

Stainless-Steel Back I/O
3X corrosion-resistance for greater durability
Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.

ESD Guards
Electrostatic discharge protection
ASUS ESD Guards prevent damage from electrostatic discharge, up to +/- 10kV for air discharge and +/-15kV for contact discharge, arranged in an active-protective-circuit design that prolongs the life of components.

Remote IT Management
The onboard SMBUS header connects to a DASH LAN card for remote IT management. DASH is a desktop and mobile architecture system hardware that allows the motherboard to be managed via the network.

ASUS Commercial BIOS Kit
ASUS understands how important a customized product impacts users' mind share, experience the brand new Commercial BIOS Kit for partial BIOS update solution!

Specifications

Internal I/O
Number of M.2 (M) slots	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Audio connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Number of SATA III connectors	6
Number of COM connectors	2
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
Chassis intrusion connector	Yes
ATX Power connector (24-pin)	Yes
Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel Q570
Parallel processing technology support	Not supported
HDMI version	1.4/2.0
Motherboard form factor	micro ATX
Component for	PC
Audio
Audio output channels	7.1 channels
Performance
Windows operating systems supported	Windows 10 x64
Motherboard chipset family	Intel
Motherboard chipset	Intel Q570
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Expansion card interfaces
Audio connector	Yes
Processor
Processor manufacturer	Intel
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Maximum number of SMP processors	1
Processor socket	LGA 1200 (Socket H5)
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
Supported memory clock speeds	2133,2400,2666,2800,2933,3200 MHz
Maximum internal memory	128 GB
Unbuffered memory	Yes
ECC сompatibility	Non-ECC
Storage controllers
Supported storage drive interfaces	M.2, SATA III
Graphics
Parallel processing technology support	Not supported
Maximum resolution	4096 x 2304 pixels

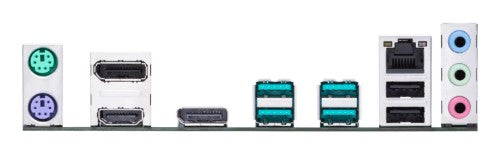

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
DisplayPort version	1.4
USB 2.0 ports quantity	2
PS/2 ports quantity	2
HDMI version	1.4/2.0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI-D ports quantity	0
DisplayPorts quantity	2
Network
Ethernet LAN	Yes
Wi-Fi	No
Wake-on-LAN ready	Yes
LAN controller	Intel® I219-V
Ethernet interface type	Gigabit Ethernet
Features
Windows operating systems supported	Windows 10 x64
Motherboard chipset family	Intel
Motherboard chipset	Intel Q570
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Audio chip	Realtek ALC897
Harmonized System (HS) code	84733020
Expansion slots
Number of M.2 (M) slots	2
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 slots	1
BIOS
Clear CMOS jumper	Yes
BIOS memory size	192 Mbit
Video
Maximum resolution	4096 x 2304 pixels
Software
Windows operating systems supported	Windows 10 x64
Logistics data
Harmonized System (HS) code	84733020
Weight & dimensions
Height	51 mm
Weight	634 g
Width	244 mm
Depth	244 mm

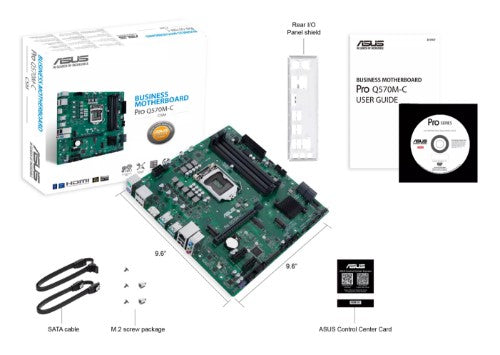

Packaging content
Cables included	SATA
Other features
Height	51 mm
Weight	634 g
