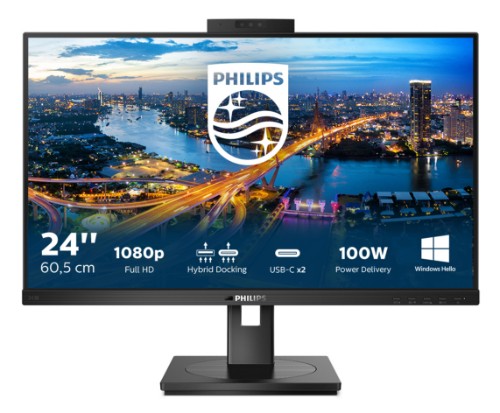

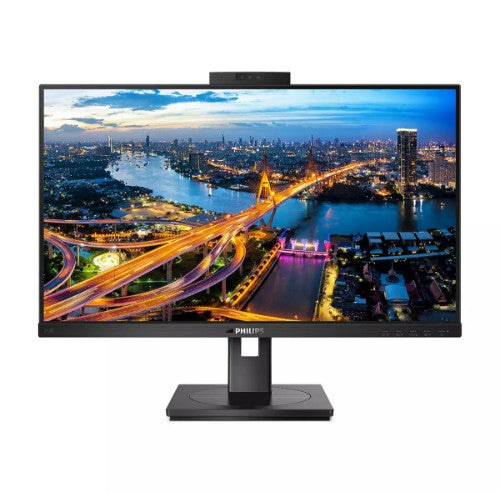

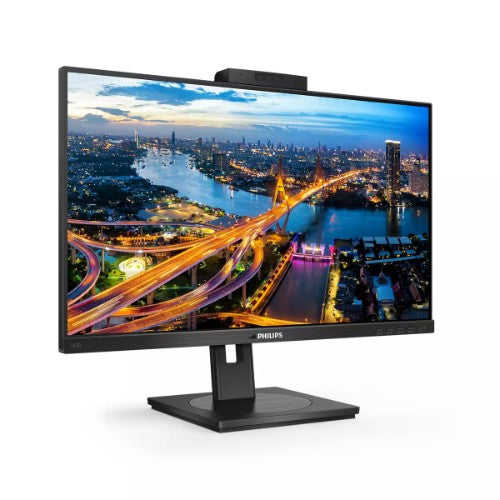

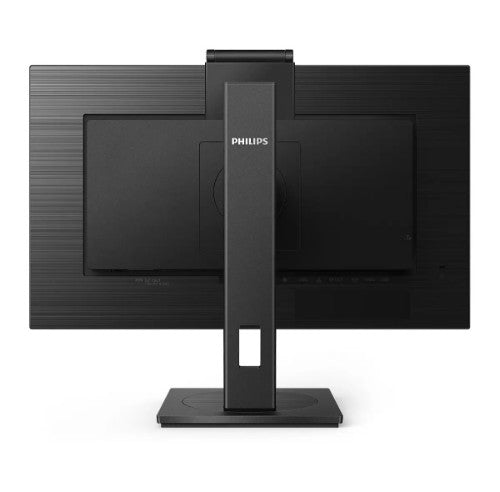

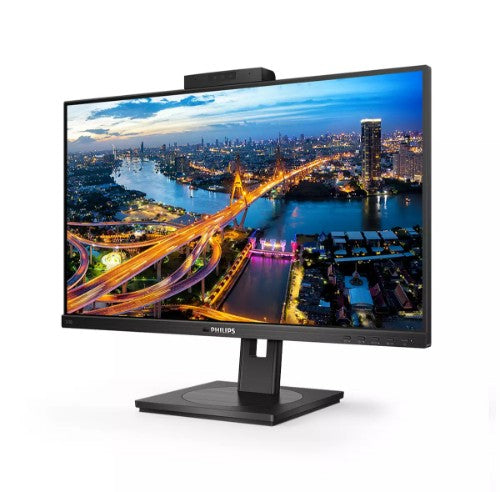

243B1JH LCD monitor with USB docking

Reasons To Buy

PowerSensor saves up to 80% energy costs

PowerSensor is a built-in 'people sensor' that transmits and receives harmless infrared signals to determine if user is present and automatically reduces monitor brightness when user steps away from the desk, cutting energy costs by up to 80 percent and prolonging monitor life

LightSensor for the perfect brightness with minimal power

LightSensor uses a smart sensor to adjust the picture brightness depending on the room light conditions for the perfect picture with minimal power usage.

IPS technology for full colors and wide viewing angles

IPS displays use an advanced technology which gives you extra wide viewing angles of 178/178 degree, making it possible to view the display from almost any angle - even in 90 degree Pivot mode! Unlike standard TN panels, IPS displays gives you remarkably crisp images with vivid colors, making it ideal not only for Photos, movies and web browsing, but also for professional applications which demand color accuracy and consistent brightness at all times.

LowBlue Mode for easy on-the-eyes productivity

Studies have shown that just as ultra-violet rays can cause eye damage, shortwave length blue light rays from LED displays can cause eye damage and affect vision over time. Developed for wellbeing, Philips LowBlue Mode setting uses a smart software technology to reduce harmful shortwave blue light.

DisplayPort-out for connecting additional displays

With DisplayPort-out you can connect multiple high resolution displays with just one cable from your first display to the PC. The ability to daisy chain multiple displays enables you to create a clean desktop without the hassle of too many wires all over.

USB-C enables laptop power charging directly from a monitor

This Philips display features a built-in USB type-C docking station with power delivery. With intelligent and flexible power management, you can power charge your compatible* laptop directly. Its slim, reversible USB-C connector allows for easy, one-cable docking. Simplify by connecting all your peripherals like keyboard, mouse and your RJ-45 Ethernet cable to the monitor's docking station. You can watch high resolution video and transfer data at a super-speed, while powering up and re-charging your notebook at the same time.

Secure sign-in with pop-up webcam

Philips' innovative and secure webcam pops up when you need it and securely tucks back into the monitor when you are not using it. The webcam is also equipped with advanced sensors for Windows Hello facial recognition, which conveniently logs you into your Windows devices in less than 2 seconds, 3 times faster than a password.

Description

This Philips monitor offers 100W power delivery and a simple laptop docking solution. One USB dual mesh cable with Type C and A connectors delivers video, Ethernet, power-charge and DisplayLink. Windows Hello webcam offers greater security.

Specifications

Display
HDCP	Yes
Display brightness (typical)	300 cd/m²
Screen shape	Flat
Dynamic contrast ratio marketing name	SmartContrast
Display number of colours	16.7 million colours
Native aspect ratio	16:9
Pixel density	93 ppi
DDC/CI	Yes
Maximum refresh rate	75 Hz
sRGB coverage (typical)	105%
Display surface	Matt
HD type	Full HD
Display technology	LCD
Contrast ratio (dynamic)	50000000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.2745 x 0.2745 mm
Horizontal scan range	30 - 85 kHz
Vertical scan range	48 - 75 Hz
Aspect ratio	16:9
Viewable size, horizontal	57.8 cm
Viewable size, vertical	29.6 cm
Digital horizontal frequency	30 - 85 kHz
Digital vertical frequency	48 - 75 Hz
Backlight type	W-LED
Display resolution	1920 x 1080 pixels
Response time	4 ms
Display diagonal	60.5 cm (23.8")
Contrast ratio (typical)	1000:1
Surface hardness	3H
NTSC coverage (typical)	88%
Touchscreen	No
Panel type	IPS
Display diagonal (metric)	60.5 cm
Display sRGB	Yes
Haze rate	25%
Anti-glare screen	Yes
Audio
Built-in speaker(s)	Yes
RMS rated power	3 W
Performance
Built-in speaker(s)	Yes
RMS rated power	3 W
Megapixel (approx.)	2 MP
Mean time between failures (MTBF)	70000 h
Built-in microphone	Yes
Built-in camera	Yes
AMD FreeSync	No
NVIDIA G-SYNC	No
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
Mac operating systems supported	Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur
Low Blue Light technology	Yes
Flicker-free technology	Yes
Component video sync	Separate sync
HBR3 support	Yes
EasyRead mode	Yes
Management features
On Screen Display (OSD)	Yes
Number of OSD languages	21
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian
Plug and Play	Yes
Network
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Ethernet LAN	Yes
Multimedia
Number of speakers	2
Built-in speaker(s)	Yes
RMS rated power	3 W
Megapixel (approx.)	2 MP
Built-in microphone	Yes
Built-in camera	Yes
Design
Heavy metals free	Hg (mercury)
Feet colour	Black
Certification	UKRAINIAN, CB, TUV/GS, TUV Ergo, SEMKO, CU-EAC, EAEU RoHS, CE Mark, FCC Class B, ICES-003, TUV Eye Comfort certified
Product colour	Black
Front bezel colour	Black
Mean time between failures (MTBF)	70000 h
Exterior finish type	Textured
Camera
Megapixel (approx.)	2 MP
Built-in camera	Yes

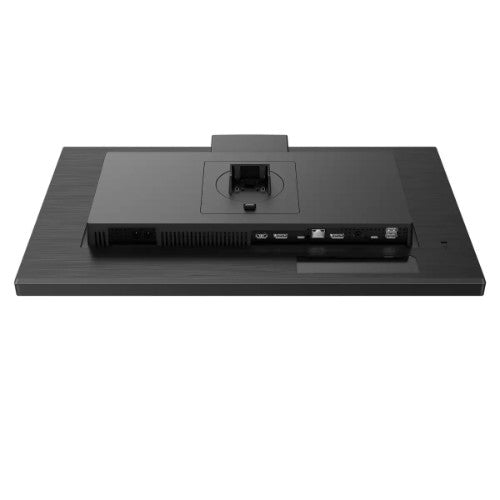

Ports & interfaces
Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-C
Number of upstream ports	1
USB Type-A downstream ports quantity	4
USB Type-C downstream ports quantity	1
Headphone out	No
DVI port	No
DC-in jack	Yes
VGA (D-Sub) ports quantity	0
HDMI ports quantity	1
DisplayPorts quantity	1
HDCP	Yes
Audio input	No
Audio output	Yes
HDMI	Yes
HDMI version	1.4
DisplayPort version	1.4
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	100 W
USB Type-C DisplayPort Alternate Mode	Yes
Number of USB Type-C upstream ports quantity	1
HDCP version	1.4
DisplayPort output	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
USB Power Delivery revision	3.0
Technical details
Height (without stand)	323 mm
Depth (without stand)	51 mm
Width (without stand)	540 mm
Feet colour	Black
Cable lock slot	Yes
Mean time between failures (MTBF)	70000 h
HDMI	Yes
Built-in microphone	Yes
Product colour	Black
Picture enhancement	SmartImage
Recyclable packaging material	100%
Regulatory Approvals	UKRAINIAN; CB; TUV/GS; TUV Ergo; CU-EAC; EAEU RoHS; CE Mark; FCC Class B; ICES-003; TUV Eye Comfort certified
Front bezel colour	Black
Sustainability certificates	ENERGY STAR, TCO
Doesn't contain	PVC/BFR, Mercury
Compliance certificates	RoHS
Power supply type	External
Light sensor	Yes
ECO mode	Yes
Weight (with stand)	4.88 kg
Surface hardness	3H
LowBlue mode	Yes
EasyRead mode	Yes
Touchscreen	No
Software
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
Mac operating systems supported	Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur
Bundled software	SmartControl
Ergonomics
VESA mounting	Yes
Cable lock slot	Yes
Panel mounting interface	100 x 100 mm
LED indicators	Operation, Stand-by

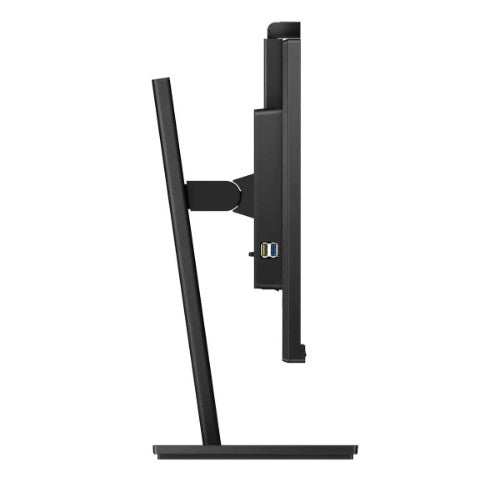

Swivel angle range	-180 - 180°
Tilt angle range	-5 - 30°
Pivot	Yes
On Screen Display (OSD)	Yes
Pivot angle	-90 - 90°
Number of OSD languages	21
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian
Plug and Play	Yes
Height adjustment	Yes
Cable lock slot type	Kensington
Tilt adjustment	Yes
Adjustable height (max)	15 cm
Power
Power supply type	External
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	14.2 W
Power consumption (off)	0.3 W
Power consumption (PowerSave)	13.5 W
AC adapter output voltage	19 V
Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	15 kWh
European Product Registry for Energy Labelling (EPREL) code	398405
Operational conditions
Non-operating altitude	0 - 12192 m
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Operating altitude	0 - 3658 m
Weight & dimensions
Height (without stand)	323 mm
Depth (without stand)	51 mm
Width (without stand)	540 mm
Width (with stand)	540 mm
Depth (with stand)	205 mm
Height (with stand)	501 mm
Weight (with stand)	4.88 kg
Weight (without stand)	3.27 kg
Package width	730 mm
Package depth	198 mm
Package height	465 mm
Package weight	7.56 kg
Packaging data
Package width	730 mm
Package depth	198 mm
Package height	465 mm
Package weight	7.56 kg
Stand included	Yes
Manual	Yes
Cables included	HDMI, DisplayPort, USB Type-C, DC, AC
Bundled software	SmartControl
Packaging content
Stand included	Yes
Manual	Yes
Cables included	HDMI, DisplayPort, USB Type-C, DC, AC
Bundled software	SmartControl
Sustainability
European Product Registry for Energy Labelling (EPREL) code	398405
Sustainability certificates	ENERGY STAR, TCO
Doesn't contain	PVC/BFR, Mercury
Indication
LED indicators	Operation, Stand-by
Other features
Light sensor	Yes
ECO mode	Yes
Heavy metals free	Hg (mercury)
Mean time between failures (MTBF)	70000 h
Certification	UKRAINIAN, CB, TUV/GS, TUV Ergo, SEMKO, CU-EAC, EAEU RoHS, CE Mark, FCC Class B, ICES-003, TUV Eye Comfort certified
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Picture enhancement	SmartImage
Recyclable packaging material	100%
Regulatory Approvals	UKRAINIAN; CB; TUV/GS; TUV Ergo; CU-EAC; EAEU RoHS; CE Mark; FCC Class B; ICES-003; TUV Eye Comfort certified
LowBlue mode	Yes
EasyRead mode	Yes
Exterior finish type	Textured
USB Power Delivery revision	3.0
HBR3 support	Yes
Compliance certificates	RoHS
Wake-on-LAN	Yes
Height (without stand)	323 mm
Depth (without stand)	51 mm
Width (without stand)	540 mm
HDMI	Yes
Surface hardness	3H
USB Power Delivery up to	100 W
USB Type-C DisplayPort Alternate Mode	Yes
Power supply type	External
Manual	Yes
Ethernet LAN	Yes
Touchscreen	No
USB Power Delivery (USB PD)	Yes
Front bezel colour	Black
Recycling data
Post-consumer recycled plastic	85%
Certificates
Certification	UKRAINIAN, CB, TUV/GS, TUV Ergo, SEMKO, CU-EAC, EAEU RoHS, CE Mark, FCC Class B, ICES-003, TUV Eye Comfort certified
Logistics data
Harmonized System (HS) code	85285210
