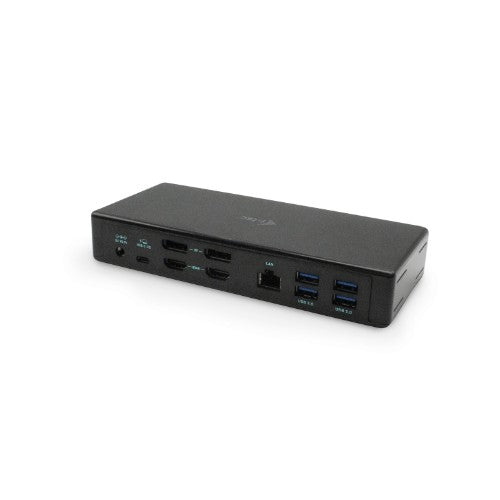

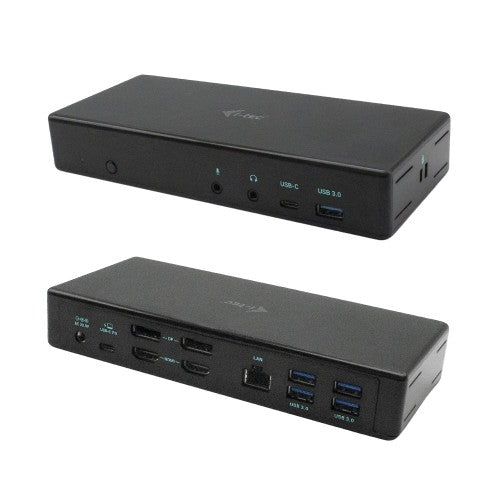

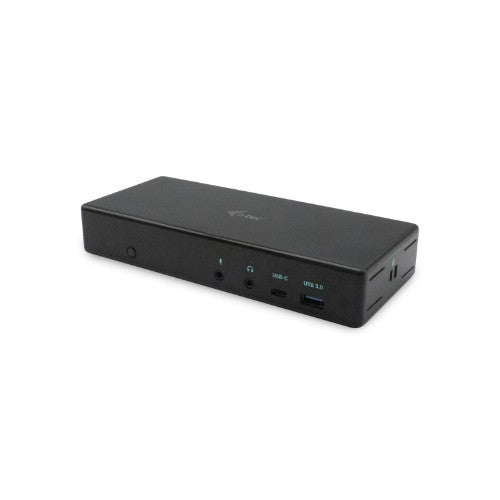

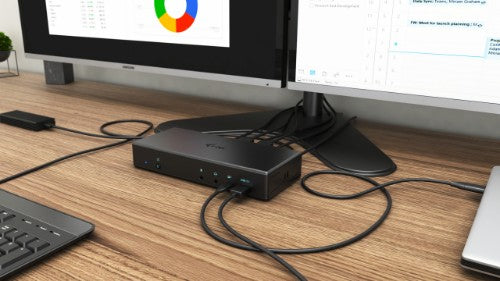

USB-C Quattro Display Docking Station with Power Delivery 85 W

Key Features

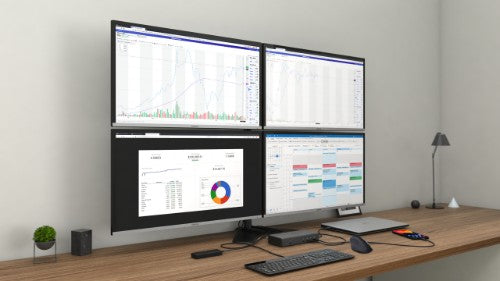

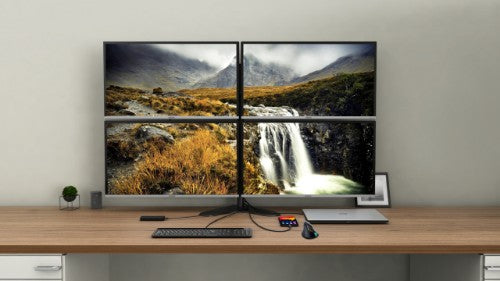

• Connect up to 4 external monitors
• Power delivery: up to 85 W
• Provides 2 DisplayPorts and 2 HDMI ports
• 5x USB 3.0 and 1x USB-C ports will allow you to easily connect your USB devices and peripherals
• Gigabit Ethernet RJ-45 provides reliable, robust and high-speed Internet connection supporting 10/100/1000 Mbps speeds
• 2x jack for audio and microphone
• Kensington lock protects against theft, particularly in shared offices or public spaces
• On/off switch for maximum energy savings

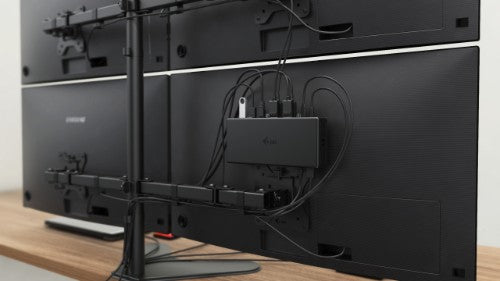

• The station features VESA support, allowing smart vertical installation on the back of a VESA compatible monitor
• Supports Windows 10, macOS, Android and Linux

Description

Professional USB-C docking station with support for up to four external monitors. The docking station is equipped with hybrid image processing: it is built on DisplayLink and USB-C video transmission technologies, allowing it to process images on four display devices at the same time.

The station is compatible with any laptop equipped with a USB-C port (with video transmission support) or Thunderbolt 3. 6x USB ports, reliable and quick connection to your company network thanks to an integrated LAN port and support for installation on the back of a monitor make the docking station an ideal partner for professionals. And of course, the station is capable of charging your laptop or tablet with up to 85 W.

* Note: macOS does not support Multi Stream Transport (MST) technology, meaning that when connected to a device running macOS, two of the four connected monitors will display the same image.

Specifications

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
Headphone connectivity	3.5 mm
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	2
DisplayPorts quantity	2
Microphone in	Yes
Headphone outputs	1
DC-in jack	Yes
Connectivity technology	Wired
USB Power Delivery	Yes
USB Power Delivery up to	85 W
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Maximum digital resolution	2560 x 1440 pixels
On/off switch	Yes
Product colour	Black
Card reader integrated	No
Cable lock slot	Yes
LED indicators	Yes
Cable lock slot type	Kensington
VESA mounting	Yes
Technical details
Product colour	Black
Cable lock slot	Yes
Harmonized System (HS) code	84733020
Storage
Card reader integrated	No
Power
Power source type	AC
Compatible power plug types	UK
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Output voltage	20 V
Output current	6.75 A
Power cable length	1.6 m
Software
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Other operating systems supported	Android
Indication
LED indicators	Yes
Weight & dimensions
Weight	290 g
Width	197 mm
Depth	85 mm
Height	34 mm
Package weight	1.17 kg
Package width	260 mm
Package depth	215 mm
Package height	48 mm
Design
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Product colour	Black
Cable lock slot	Yes
LED indicators	Yes
Cable lock slot type	Kensington
Packaging data
Package weight	1.17 kg
Package width	260 mm
Package depth	215 mm
Package height	48 mm

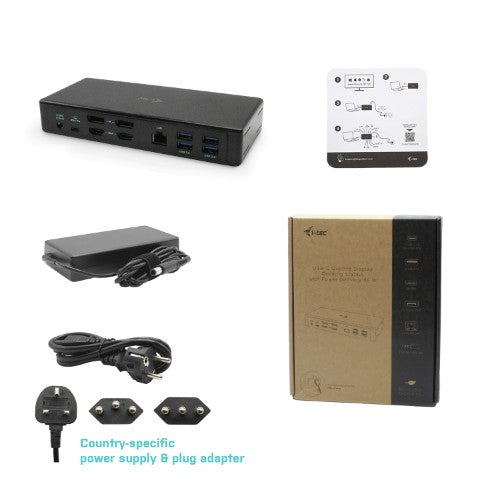

Packaging content
Manual	Yes
Cables included	USB Type-C
AC adapter included	Yes
Logistics data
Harmonized System (HS) code	84733020
