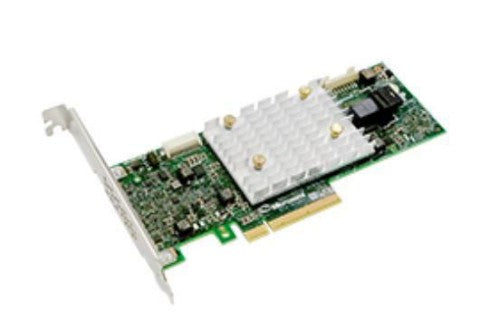

SmartRAID 3101E-4i - 12 Gbps PCIe Gen3 SAS/SATA SmartRAID

Key Features

• Accelerated storage with up to 2 GB of high-speed DRAM cache
• Significant power savings as compared to competing solutions
• RAID levels 0, 1, 10, 1 ADM, 10 ADM
• Consistent drivers, firmware and management tools for seamless integration

Description

Entry-level Adaptec SmartRAID 3100E RAID adapters are cost-effective hardware RAID solutions. They have been added to our trusted Smart Storage platform to support deployments that use fewer drives and can benefit from caching capabilities but do not need the full cache backup or advanced RAID levels of our full-featured RAID adapters.

Specifications

Ports & interfaces
Internal	Yes
Output interface	SAS, SATA
Internal SATA ports quantity	4
Host interface	PCIe
Internal mini-SAS HD ports	1
Expansion card form factor	Low-profile
Expansion card standard	PCIe 3.0
Technical details
Hot-Plug support	Yes
RAID levels	0, 1, 1 ADM, 10 ADM, 10
Native Command Queuing (NCQ)	Yes
Data transfer rate (max)	12 Gbit/s
Compliance certificates	RoHS
Performance
Hot-Plug support	Yes
RAID levels	0, 1, 1 ADM, 10 ADM, 10
Native Command Queuing (NCQ)	Yes
Data transfer rate (max)	12 Gbit/s
S.M.A.R.T. support	Yes
Harmonized System (HS) code	84733020
Certificates
Certification	CE, FCC, UL, C-tick, VCCI, KCC, CNS
Design
Mean time between failures (MTBF)	1370000 h
Hot-Plug support	Yes
Internal	Yes
Certification	CE, FCC, UL, C-tick, VCCI, KCC, CNS
Features
RAID levels	0, 1, 1 ADM, 10 ADM, 10
Native Command Queuing (NCQ)	Yes
Data transfer rate (max)	12 Gbit/s
S.M.A.R.T. support	Yes
Harmonized System (HS) code	84733020
Operational conditions
Operating temperature (T-T)	0 - 55 °C
System requirements
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Weight & dimensions
Width	167 mm
Height	64 mm
Packaging data
Quantity	1
Logistics data
Harmonized System (HS) code	84733020
Packaging content
Quantity	1
