£232.00
Spread the cost over 3, 6 or 12 months with orders over £50.
Free next working day delivery!
Description
PCIe 3.0 x8, PCIe NVMe, LAN, 10 Gbps, 200.05 x 71.75 x 17.7 mm
Description

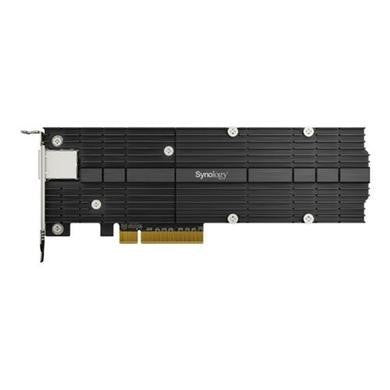

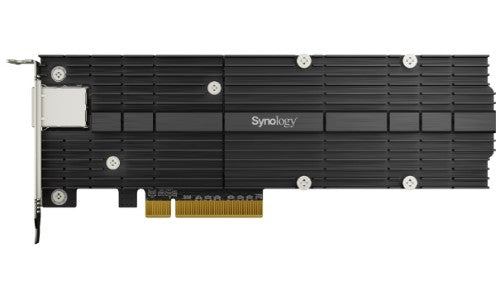

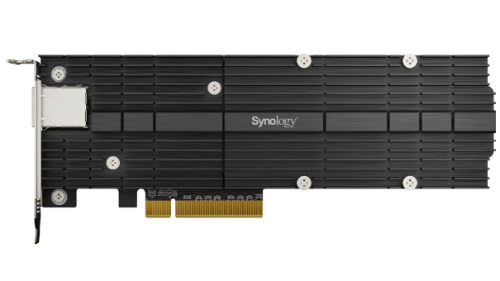

10GbE bandwidth and M.2 SSD cache, all at once Synology E10M20-T1 helps you boost I/O performance and network bandwidth simultaneously using just one PCIe expansion slot on your Synology NAS. - Achieve Multi-Gig Ethernet transmission speeds of up to 10 Gbps. - Accelerate random I/O performance with the dual M.2 2280/22110 NVMe SSD slots. - Free up primary drive bays for data storage. A perfect match with Synology SNV3000 series NVMe SSD Install Synology SNV3000 series NVMe SSD on the E10M20-T1 adapter card for fast and streamlined cache acceleration, and take full advantage of Synology SSD’s enterprise-grade endurance, performance, and reliability with your Synology NAS.Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Output interface | PCIe |
| Host interface | PCIe |
| NVMe | Yes |
| Expansion card form factor | Full-height / Low-profile |
| Expansion card standard | PCIe 3.0 |
| Technical details | |
| Purpose | NAS / Storage server |
| Full duplex | Yes |
| Data transfer rate (max) | 10 Gbit/s |
| Compatibility | SA series:SA3600, SA3400 22 series:DS3622xs+, DS2422+ 21 series:RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+ 20 series:RS820RP+, RS820+ 19 series:DS2419+, DS2419+II, DS1819+ 18 series:RS3618xs, RS2818RP+, DS3018xs, DS1618+ 17 series:RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, DS3617xs, DS3617xsII |
| Performance | |
| Purpose | NAS / Storage server |
| Full duplex | Yes |
| Data transfer rate (max) | 10 Gbit/s |
| Product colour | Black |
| NVMe | Yes |
| Harmonized System (HS) code | 84733020 |
| Colour | |
| Product colour | Black |
| Design | |
| Purpose | NAS / Storage server |
| Internal | Yes |
| Product colour | Black |
| Cooling type | Passive |
| Features | |
| Full duplex | Yes |
| Data transfer rate (max) | 10 Gbit/s |
| Harmonized System (HS) code | 84733020 |
| NVMe | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 200.1 mm |
| Depth | 17.7 mm |
| Height | 71.8 mm |
| Packaging data | |
| Quick installation guide | Yes |
| Quantity | 1 |
| Other features | |
| Compatibility | SA series:SA3600, SA3400 22 series:DS3622xs+, DS2422+ 21 series:RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+ 20 series:RS820RP+, RS820+ 19 series:DS2419+, DS2419+II, DS1819+ 18 series:RS3618xs, RS2818RP+, DS3018xs, DS1618+ 17 series:RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, DS3617xs, DS3617xsII |
| Packaging content | |
| Quick installation guide | Yes |
| Quantity | 1 |
