Pop-Out Flat Screen Wall Mount with Micro-Adjustment, up to 42", 25kg max, 75 x75 - 200 x 200 VESA, Black

Key Features

• Perfect solution for mounting screens into a recessed wall
• Can also be used to create videowall installations

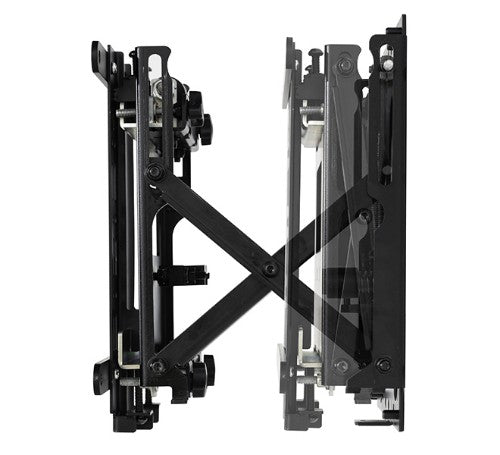

• Push to open / push to close system provides quick and easy service access

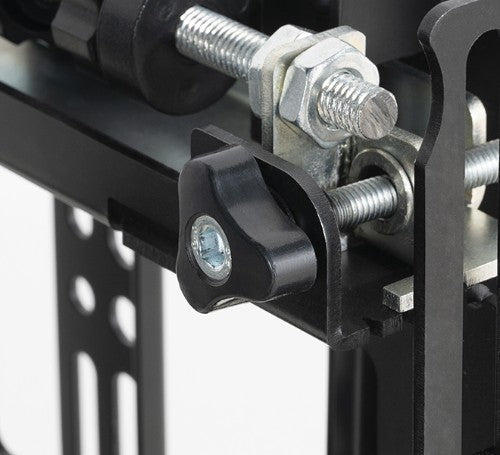

• Micro-adjustment of +/-6mm at each corner for seamless display alignment
• Suitable for landscape or portrait screen mounting

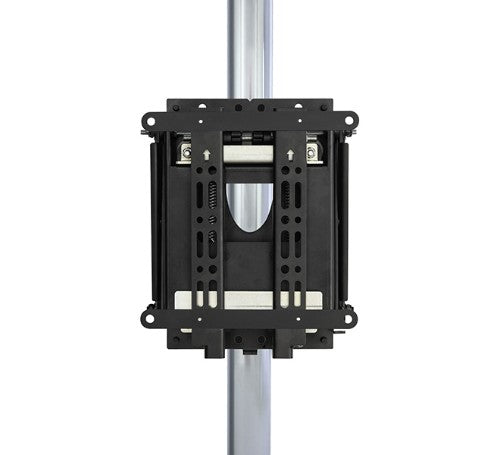

• Suitable for both wall or pole mounting
• Keyhole mounting for quick and easy installation
• Levelling screws allow adjustment of screen height
• Integrated locking mechanism prevents accidental pop-out of mount
• Integrated cable management
• 'Hook-on' installation with all mounting hardware included

Description

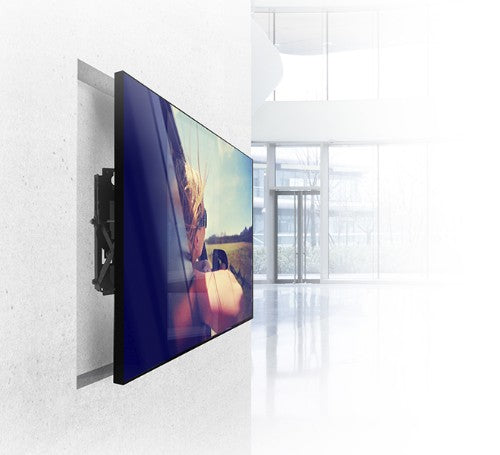

The BT8309 is designed to install small to medium screens into recessed walls. The pop-out mechanism allows for a flush to the wall installation while still allowing access to the rear of the screen for easy installation and service access. Tool-less micro-adjustment is included on each corner to allow screens to perfectly align to the recess and additional screens in a videowall installation. BT8309 also allows screens to be mounted in landscape or portrait orientation and is compatible with B-Tech's professional pole and collar system for pole-mounted installs.

Specifications

Mounting
Mounting type	Wall
Panel mounting interface	75 x 75,200 x 200 mm
Number of displays supported	1
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	200 x 200 mm
Maximum screen size	106.7 cm (42")
Maximum weight capacity	25 kg
Suitable for computer monitor	Yes
Ergonomics
Adjustable depth	Yes
Cable management	Yes
Distance to the wall (min)	6.9 cm
Distance to the wall (max)	18.6 cm
Technical details
Cable management	Yes
Number of displays supported	1
Distance to the wall (min)	6.9 cm
Distance to the wall (max)	18.6 cm
Product colour	Black
Mounting type	Wall
Design
Cable management	Yes
Product colour	Black
Packaging content
Mounting kit	Yes
Weight & dimensions
Width	220 mm
Height	287 mm
Packaging data
Mounting kit	Yes
Other features
Mounting type	Wall
