USB 3.1, 10 G, 4 GB, SFP+, 100 - 240V, 157.7 W, +55 °C, 4.7 kg

Description

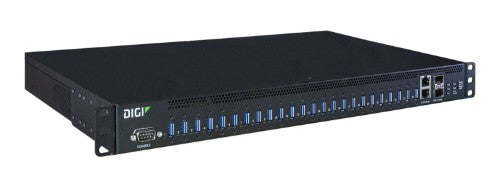

IoT business automation requires communication with various IT assets and peripherals located across an enterprise. AnywhereUSB Plus remote USB hubs give users the simplest and most direct connection options for existing equipment with a variety of USB 3.1 Gen 1 port options. All three models have Gigabit Ethernet support for failover redundancy and network bonding with SFP+ ports in the 8 and 24-port models for higher speeds or fiber networks. AnywhereUSB 24 Plus is rack mountable with 24 USB 3.1 Gen 1 ports, while AnywhereUSB 8 Plus and AnywhereUSB 2 Plus are desktop or panel mountable units with eight or two ports, respectively, and support for Gigabit Ethernet.
AnywhereUSB can be coupled with Digi Remote Manager, a web-based device configuration and security management platform, to help users reduce downtime. An intuitive user experience makes installation smooth and easy; with quick setup and configuration to monitor and maintain larger installations of remote Digi and third-party devices. For enterprise and industrial customers who need remote or local USB ports and the higher speeds of USB 3.1 Gen 1 and Gigabit/10 Gigabit Ethernet, Digi AnywhereUSB Plus products give you an industry-leading connectivity solution.

Specifications

Ports & interfaces
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	24
Ethernet LAN (RJ-45) ports	2
Hub interfaces	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Compatible memory cards	MMC
Ports quantity	28
Features
LED indicators	Yes
Product colour	Black
Certification	CE, FCC Part 15 Class B, AS/NZS CISPR 22, EN55024, EN55032
Data transfer rate	10000 Mbit/s
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Network
Ethernet interface type	Gigabit Ethernet
Data transmission
Data transfer rate	10000 Mbit/s
Power
Power consumption (max)	157.7 W
Input current	3 A
Power source type	AC
Input voltage	100 - 240 V
Technical details
Product colour	Black
Performance
Compatible memory cards	MMC
Certification	CE, FCC Part 15 Class B, AS/NZS CISPR 22, EN55024, EN55032
Data transfer rate	10000 Mbit/s
Harmonized System (HS) code	84719000
Storage
Compatible memory cards	MMC
Weight & dimensions
Weight	4.7 kg
Width	450.9 mm
Depth	255 mm
Height	44.5 mm
Packaging data
Quantity per pack	1 pc(s)
Design
LED indicators	Yes
Product colour	Black
Certification	CE, FCC Part 15 Class B, AS/NZS CISPR 22, EN55024, EN55032
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 95%
Certificates
Certification	CE, FCC Part 15 Class B, AS/NZS CISPR 22, EN55024, EN55032
Indication
LED indicators	Yes
Logistics data
Harmonized System (HS) code	84719000
