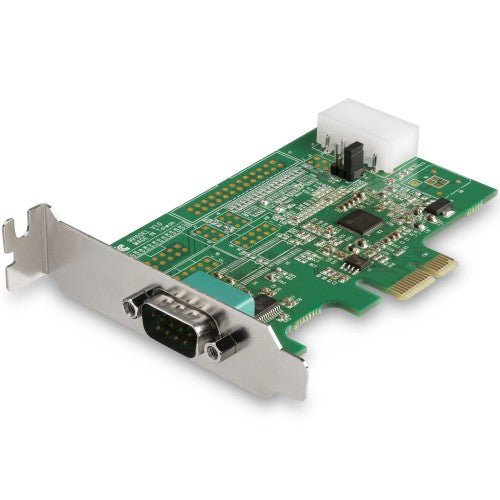

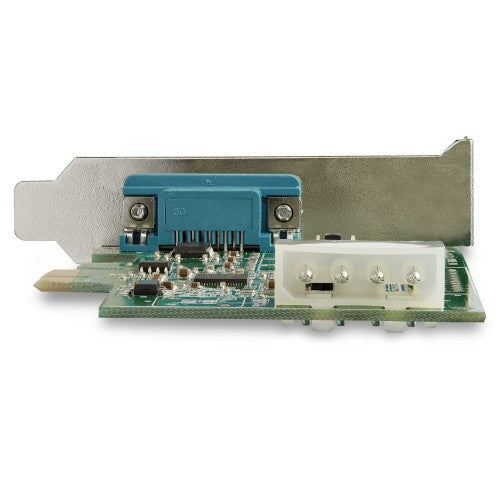

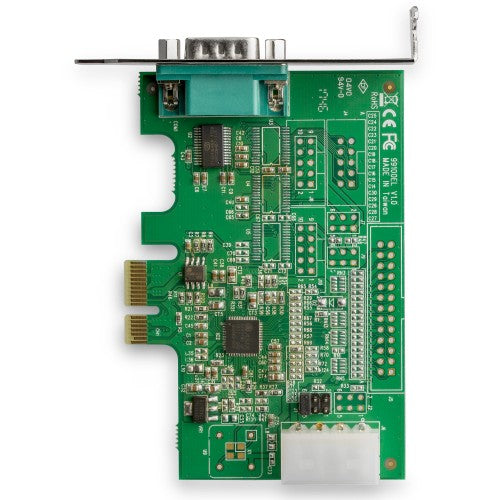

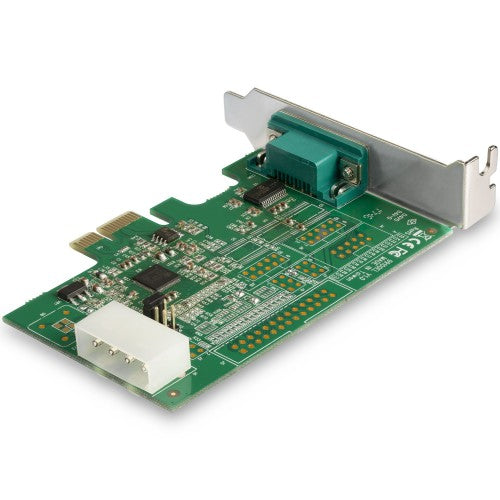

StarTech.com 1-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows & Linux (PEX1S953LP)

Key Features

• 1 PORT SERIAL CARD: Serial controller card w/ 16950 UART based on ASIX AX99100, allows 1x DB9 port w/bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer & 9th data bit; Upgraded version of our popular card PEX1S952LP
• OPTIONAL CONFIGURABLE POWER: PCI Express RS232 serial adapter card provides choice of 12v, 5v, or none through pin 9 w/up to 2A total

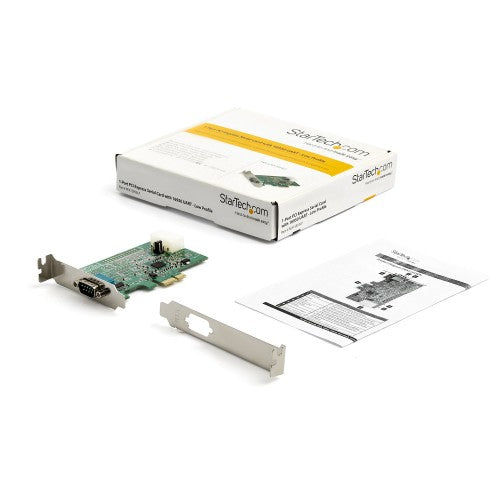

• STANDARD PROFILE & LOW PROFILE BRACKET: PCIe serial card comes w/ a low profile bracket pre-installed & 1x full profile bracket is incl for versatile install; Supports Windows XP and up & Linux
• VERSATILE APPLICATIONS: For low/standard profile desktop/servers w/ uses in point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanner, oscilloscope
• STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; PCI-e RS232 Serial expansion card is backed for life by StarTech.com, incl. free 24/5 North America based multi-lingual tech support

Description

PCI Express to Serial Adapter | 921.4Kbps | Windows® and Linux® Compatible

This RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps.

Maximum Compatibility

With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.

Experience Optimal Technology

This PCIe to serial adapter supports the following features:

• Compatible with industry standard 16950 UART
• Supports max baud rate of up-to 921.4Kbps
• Provides 5/12V power output on Pin 9 when external power is connected
• 128-byte depth FIFO per transmitter and receiver
• Supports 9, 8, 7, 6, 5 data bits
• Asix AX99100 chipset
• PCI Express 1.1 compliant

PEX1S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

Ports & interfaces
Internal	Yes
Output interface	Serial
Serial interface type	RS-232
Serial ports quantity	1
Peripheral (Molex) power connectors (4-pin)	1
Host interface	PCIe
Expansion card standard	PCIe 1.1
Technical details
Chipset	Asix AX99100
FIFO (First In, First Out)	256 B
Sustainability compliance	Yes
Compliance certificates	CE, RoHS
Performance
Stop bits	1, 1.5, 2
Data bits	5, 6, 7, 8, 9
Baud rate	921.4 Kbit/s
Chipset	Asix AX99100
FIFO (First In, First Out)	256 B
Flow control support	Yes
Product colour	Green
Harmonized System (HS) code	84733020
Colour
Product colour	Green
Design
Mean time between failures (MTBF)	277385 h
Internal	Yes
Product colour	Green
Features
Stop bits	1, 1.5, 2
Data bits	5, 6, 7, 8, 9
Baud rate	921.4 Kbit/s
Chipset	Asix AX99100
FIFO (First In, First Out)	256 B
Flow control support	Yes
Parity bit	Even, Mark, No, Odd, Space
Flow Control type	No, RTS/CTS, XON/XOFF
Harmonized System (HS) code	84733020
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-20 - 80 °C
Operating relative humidity (H-H)	20 - 80%
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Weight & dimensions
Width	67 mm
Depth	98 mm
Height	150 mm
Weight	44 g
Package width	142 mm
Package depth	170 mm
Package height	30 mm
Package weight	112 g
Packaging data
Mounting brackets included	Yes
Manual	Yes
Package width	142 mm
Package depth	170 mm
Package height	30 mm
Package weight	112 g
Quantity	1
Logistics data
Products per master (outer) case	75 pc(s)
Master (outer) case width	360 mm
Master (outer) case length	685 mm
Master (outer) case height	315 mm
Harmonized System (HS) code	84733020
Packaging content
Mounting brackets included	Yes
Manual	Yes
Quantity	1
Other features
Chipset	Asix AX99100
Flow control support	Yes
