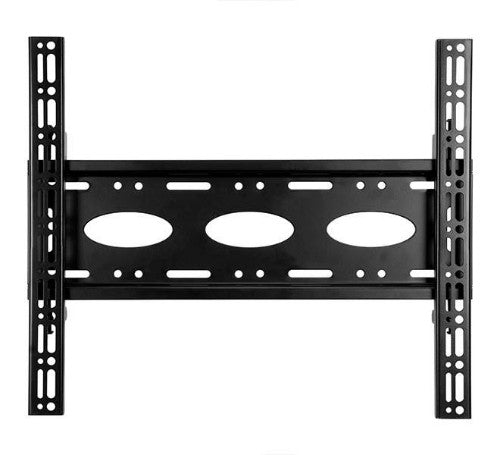

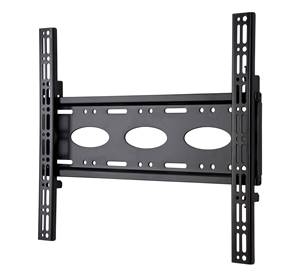

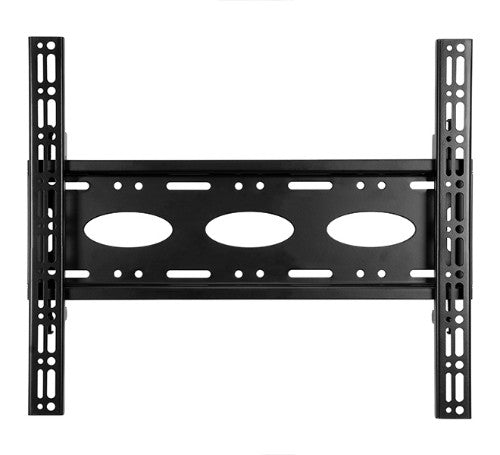

Universal Flat Screen Wall Mount (VESA 400)

Key Features

• Low profile design for a close to the wall installation

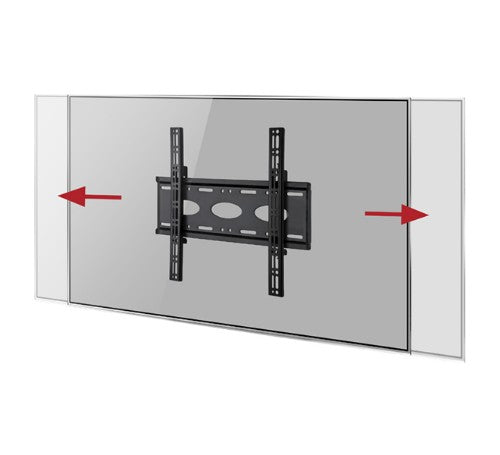

• Lateral adjustment of screen once mounted
• Levelling screws allow adjustment of screen height
• Compatible with B-Tech's collar and pole system for pole mounting screens
• Security locking screws help prevent unauthorised removal of screens
• Simple ‘hook-on’ installation
• All mounting hardware included

Description

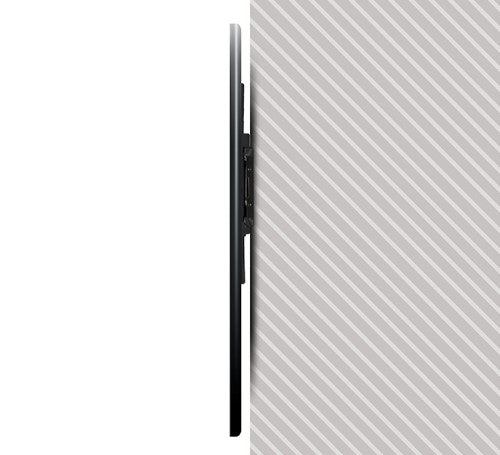

Designed for medium and large sized screens, the BT8441 supports weights up to 80kg and features a low-profile design that mounts screens just 30mm from the wall. The universal interface accommodates mounting patterns up to 455 x 400mm and comes with adjustment screws which allow the screen to be levelled once mounted.

Specifications

Mounting
Mounting type	Wall
Minimum screen size	99.1 cm (39")
Number of displays supported	1
Maximum VESA mount	455 x 400 mm
Maximum screen size	139.7 cm (55")
Maximum weight capacity	80 kg
Ergonomics
Distance to the wall (max)	3 cm
Technical details
Number of displays supported	1
Distance to the wall (max)	3 cm
Product colour	Black
Mounting type	Wall
Design
Product colour	Black
Packaging content
Mounting kit	Yes
Weight & dimensions
Width	500 mm
Height	420 mm
Depth (max)	3 cm
Packaging data
Mounting kit	Yes
Logistics data
Master (outer) case gross weight	12.8 kg
Products per master (outer) case	4 pc(s)
Master (outer) case volume	21100 cm³
Harmonized System (HS) code	83024200
Other features
Mounting type	Wall
