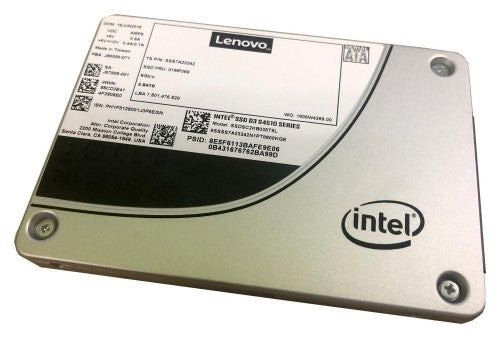

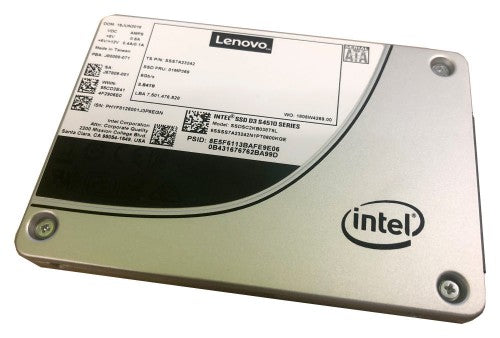

ThinkSystem Intel S4510 Entry SATA 6Gb

Description

The Intel S4510 Entry SATA solid-state drives (SSDs) for Lenovo servers use 64-layer Intel 3D NAND TLC Flash Memory technology with a 6Gbps SATA interface to provide an affordable solution with industry leading performance.

This product guide provides essential presales information to understand the S4510 SSD offerings, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about S4510 SSDs and consider their use in IT solutions.

Specifications

Hard drive
SSD capacity	480 GB
Memory type	3D TLC
Data transmission
Read speed	560 MB/s
Write speed	510 MB/s
Data transfer rate	6 Gbit/s
Security
Security algorithms	256-bit AES
Endurance
Mean time between failures (MTBF)	2000000 h
Certificates
Certification	FCC Title 47, Part 15B, Class B CA/CSA-CEI/IEC CISPR 22:02 EN 55024: 1998 EN 55022: 2006 EN-60950-1 2nd Edition UL/CSA EN-60950-1 2nd Edition Low Voltage Directive 2006/95/EC C-Tick: AS/NZS3584 BSMI: CNS 13438 KCC Article 11.1 RoHS DIRECTIVE 2011/65/EU WEEE Directive 2002/96/EC
Performance
Interface	Serial ATA III
Component for	Server/workstation
Maximum write (4KB)	19000 IOPS
Maximum read (4KB)	90000 IOPS
SSD capacity	480 GB
Security algorithms	256-bit AES
Read speed	560 MB/s
Write speed	510 MB/s
Memory type	3D TLC
Mean time between failures (MTBF)	2000000 h
Hardware encryption	No
Data transfer rate	6 Gbit/s
Design
Component for	Server/workstation
Certification	FCC Title 47, Part 15B, Class B CA/CSA-CEI/IEC CISPR 22:02 EN 55024: 1998 EN 55022: 2006 EN-60950-1 2nd Edition UL/CSA EN-60950-1 2nd Edition Low Voltage Directive 2006/95/EC C-Tick: AS/NZS3584 BSMI: CNS 13438 KCC Article 11.1 RoHS DIRECTIVE 2011/65/EU WEEE Directive 2002/96/EC
SSD form factor	3.5"
Features
Interface	Serial ATA III
Component for	Server/workstation
Maximum write (4KB)	19000 IOPS
Maximum read (4KB)	90000 IOPS
SSD capacity	480 GB
Security algorithms	256-bit AES
Read speed	560 MB/s
Write speed	510 MB/s
Memory type	3D TLC
Mean time between failures (MTBF)	2000000 h
Hardware encryption	No
Data transfer rate	6 Gbit/s
Certification	FCC Title 47, Part 15B, Class B CA/CSA-CEI/IEC CISPR 22:02 EN 55024: 1998 EN 55022: 2006 EN-60950-1 2nd Edition UL/CSA EN-60950-1 2nd Edition Low Voltage Directive 2006/95/EC C-Tick: AS/NZS3584 BSMI: CNS 13438 KCC Article 11.1 RoHS DIRECTIVE 2011/65/EU WEEE Directive 2002/96/EC
SSD form factor	3.5"
Harmonized System (HS) code	84717070
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Maximum operating altitude	3050 m
Technical details
Interface	Serial ATA III
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Maximum operating altitude	3050 m
Hardware encryption	No
SSD form factor	3.5"
Weight & dimensions
Width	70 mm
Weight	63 g
Height	7 mm
Depth	100 mm
Logistics data
Harmonized System (HS) code	84717070
