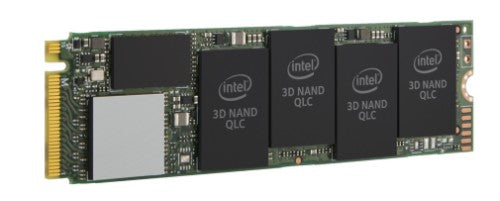

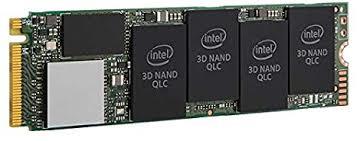

1024 GB, M.2, PCI Express 3.0, NVMe, 3D2 QLC, Retail

Key Features

• 1024 GB Capacity
• M.2 22 x 80mm Form Factor
• PCIe NVMe 3.0 x4 Interface

Reasons To Buy

PCIe Performance at an Affordable Price

Empowered by Intel’s innovative Intel® QLC Technology, the Intel® SSD 660p offers higher capacities at a lower cost than TLC-based options. With PCIe, the new SSD 660p skips SATA and its limitations to offer up to 2TB in one drive.

Twice the Capacity in Identical Footprints

These client SSDs pack more data than TLC-based storage, allowing up to 2x more capacity in identical footprints. The thin M.2 80mm form factor makes it perfect for notebooks, desktops, and mobile devices that need storage for everyday computing.

Performance and Price That Matters

The SSD 660p hits the marks that matter for client SSDs. This drive is tuned to deliver a capacity optimized NVMe performance and deliver an intelligent storage option for mainstream and entry-level computing.

PCIe-Leistung zum erschwinglichen Preis

Dank Intels innovativer Intel® QLC-Technik bieten Intel® SSDs der Produktreihe 660p mehr Speicherkapazität zu geringeren Kosten als TLC-Modelle. Die eingesetzte PCIe-Technik beseitigt SATA-Schnittstellen und deren Einschränkungen, so dass eine neue SSD 660p bis zu 2 TB Speicher bereitstellen kann.

Doppelte Speicherkapazität bei identischem Platzbedarf

Auf diesen Client-SSDs lassen sich mehr Daten unterbringen als auf TLC-basiertem Massenspeicher. Bei identischem Platzbedarf bieten sie bis zu 2-mal mehr Speicherkapazität. Ihre flache M.2/80-mm-Bauart macht sie zur perfekten Lösung für Notebooks, Desktop-PCs und Mobilgeräte, die ausreichend Massenspeicherkapazität für Standardaufgaben bereitstellen sollen.

Description

Intel® Smart Response Technology Intel® Smart Response Technology combines the fast performance of a small solid state drive with the large capacity of a hard disk drive. Hardware Encryption Hardware encryption is data encryption done at the drive level. This is used to ensure that the data stored on the drive is secured from unwanted intrusion. End-to-End Data Protection End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back. Intel® Rapid Start Technology Intel® Rapid Start Technology allows quick system resumes from the hibernate state.

Specifications

Hard drive
PCI Express interface data lanes	x4
SSD capacity	1024 GB
Memory type	3D2 QLC
Performance
Intel® Smart Response Technology	Yes
Intel® Rapid Start Technology	Yes
Intel High Endurance Technology (HET)	No
Interface	PCI Express 3.0
Component for	Server/workstation
SSD ARK ID	149407
NVMe	Yes
TBW rating	200
End-to-End Data Protection	Yes
PCI Express interface data lanes	x4
SSD capacity	1024 GB
Security algorithms	256-bit AES
Memory type	3D2 QLC
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^15 bits read
SSD temperature monitoring	No
Mean time between failures (MTBF)	1600000 h
Hardware encryption	Yes
Enhanced Power Loss Data Protection technology	No
Security
Security algorithms	256-bit AES
Endurance
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^15 bits read
Mean time between failures (MTBF)	1600000 h
Design
Component for	Server/workstation
SSD form factor	M.2
Market segment	Mobile
Product series	Intel® SSD 660p Series
Product codename	Neptune Harbor
Features
Interface	PCI Express 3.0
Component for	Server/workstation
SSD ARK ID	149407
NVMe	Yes
TBW rating	200
End-to-End Data Protection	Yes
PCI Express interface data lanes	x4
SSD capacity	1024 GB
Security algorithms	256-bit AES
Memory type	3D2 QLC
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^15 bits read
SSD temperature monitoring	No
Mean time between failures (MTBF)	1600000 h
Hardware encryption	Yes
Enhanced Power Loss Data Protection technology	No
SSD form factor	M.2
Market segment	Mobile
Harmonized System (HS) code	84717070
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G158436
Temperature monitoring and logging	No
Power
Power consumption (write)	0.1 W
Power consumption (read)	0.1 W
Power consumption (idle)	0.04 W
Brand-specific features
Intel® Smart Response Technology	Yes
Intel® Rapid Start Technology	Yes
Intel High Endurance Technology (HET)	No
Product series	Intel® SSD 660p Series
Product codename	Neptune Harbor
Intel® Remote Secure Erase	No
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Operating shock	1000 G
Non-operating shock	1000 G
Operating vibration	2.17 G
Non-operating vibration	3.13 G
Maximum operating temperature	70 °C
Operating / non-operating shock	1000 G
Technical details
Interface	PCI Express 3.0
Operating temperature (T-T)	0 - 70 °C
Operating shock	1000 G
Non-operating shock	1000 G
Operating vibration	2.17 G
Non-operating vibration	3.13 G
SSD temperature monitoring	No
Internal memory type	PCIe 3.0 x4, NVMe
Intel High Endurance Technology (HET)	No
Hardware encryption	Yes
Enhanced Power Loss Data Protection technology	No
Power consumption (active)	0.1 W
SSD form factor	M.2
Market segment	Mobile
Processor family	Intel SSD 660p
Status	Launched
SSD shock	1000 G
SSD power consumption (idle)	0.040W
SSD endurance rating	200 TBW
Sequential writing speed	1800 MB/s
Sequential reading	1800 MB/s
Random write (8GB span)	220000 IOPS
Launch date	Q3'18
Random read (8GB span)	150000 IOPS
Weight & dimensions
Width	22 mm
Weight	10 g
Depth	80 mm
Logistics data
Harmonized System (HS) code	84717070
Other features
Processor family	Intel SSD 660p
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^15 bits read
Internal memory type	PCIe 3.0 x4, NVMe
Power consumption (active)	0.1 W
Status	Launched
SSD shock	1000 G
SSD power consumption (idle)	0.040W
SSD endurance rating	200 TBW
Sequential writing speed	1800 MB/s
Sequential reading	1800 MB/s
Random write (8GB span)	220000 IOPS
Launch date	Q3'18
Random read (8GB span)	150000 IOPS
Product series	Intel® SSD 660p Series
Product codename	Neptune Harbor
