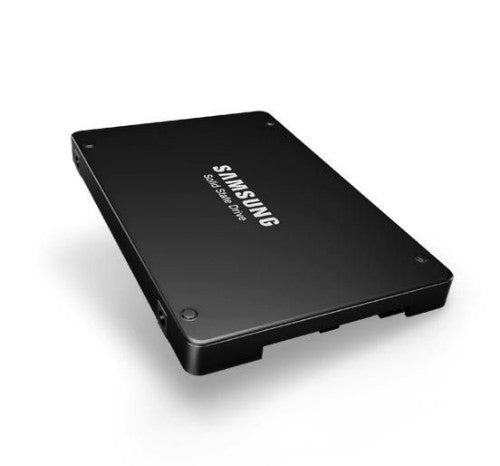

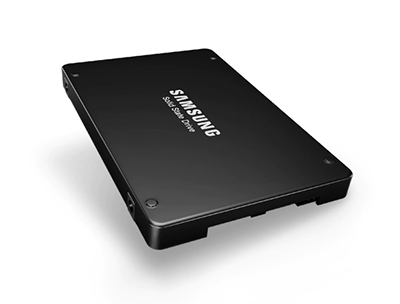

15.36 TB, SAS 12.0 Gbps, TLC, V-NAND, 100.20 x 69.85 x 14.80 mm

Key Features

• Ultra-High Capacity SAS SSD
• High Speed with Low Latency
• Enhanced Reliability, Better Performance
• Best Solution for Heavy Demands
• Reliable Storage, 24/7 Operation
• Top Solution for Diverse Applications

Description

PM1643 delivers high-value faster read speeds while improving TCO with outstanding reliability, security and endurance. It provides a powerful solution for mission-critical enterprise applications. It also provides significantly more capacity up to 30.72 TB.

Specifications

Hard drive
SSD capacity	15.4 TB
Memory type	V-NAND TLC
Data transmission
Read speed	2100 MB/s
Write speed	1800 MB/s
Data transfer rate	12 Gbit/s
Endurance
Mean time between failures (MTBF)	2000000 h
Performance
Interface	SAS
Component for	Server/workstation
NAND flash type	TLC (Triple Level Cell)
SSD capacity	15.4 TB
Read speed	2100 MB/s
Write speed	1800 MB/s
Memory type	V-NAND TLC
Mean time between failures (MTBF)	2000000 h
Data transfer rate	12 Gbit/s
Design
Component for	Server/workstation
Product colour	Black
SSD form factor	2.5"
Features
Interface	SAS
Component for	Server/workstation
NAND flash type	TLC (Triple Level Cell)
SSD capacity	15.4 TB
Read speed	2100 MB/s
Write speed	1800 MB/s
Memory type	V-NAND TLC
Mean time between failures (MTBF)	2000000 h
Data transfer rate	12 Gbit/s
SSD form factor	2.5"
Harmonized System (HS) code	84717070
Power
Power consumption (idle)	5 W
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Technical details
Interface	SAS
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Product colour	Black
SSD form factor	2.5"
Weight & dimensions
Width	100.2 mm
Height	69.8 mm
Depth	14.8 mm
Logistics data
Harmonized System (HS) code	84717070
Other features
Product colour	Black
