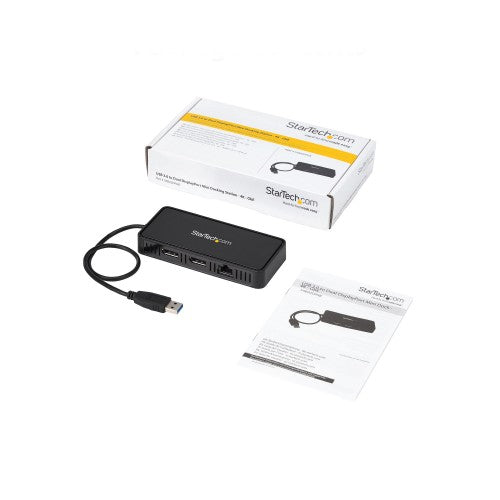

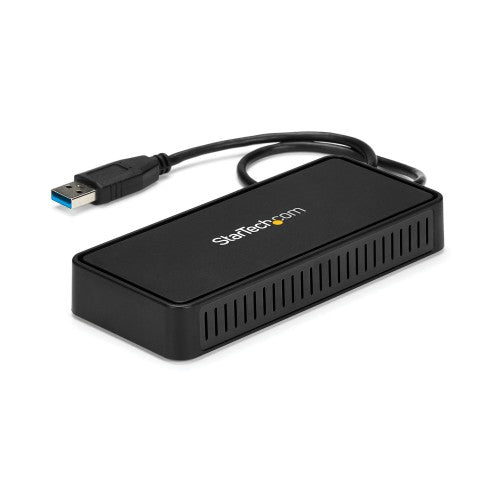

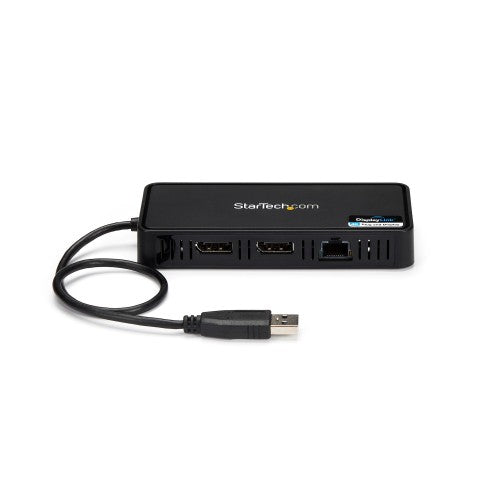

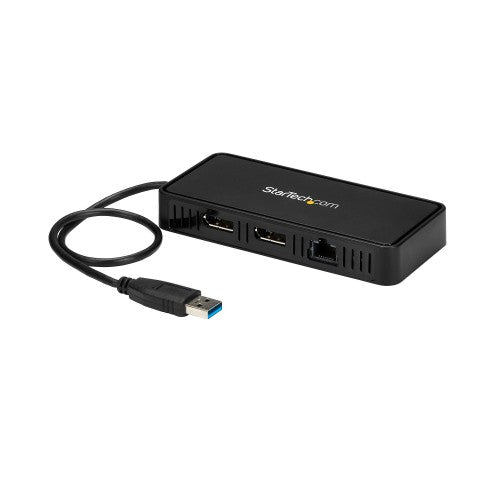

StarTech.com USB 3.0 Mini Dock - Dual Monitor USB-A Docking Station with DisplayPort 4K 60Hz Video & Gigabit Ethernet - 1ft (30cm) cable - Portable USB 3.1 Gen 1 Type-A Laptop Adapter (USBA2DPGB)

Key Features

• USB-A DUAL 4K 60HZ MINI DOCK: USB 3.0 mini dock with dual monitor DisplayPort, GbE port; DisplayLink certified, DL 6950 chipset supports dual DP 4K 60Hz video output & widespread display compatibility
• EASY INSTALLATION: Portable USB Type-A docking station with a 1ft (30cm) attached cable to provide setup flexibility & extended port reach to devices like USB-A Surface Pros to reduce port strain
• DESIGNED FOR PORTABILITY: This bus-powered USB-A mini docking station has a compact form factor and it is ideally suited for small in-office or work-from-home workspaces
• WIDE DEVICE COMPATIBILITY: This mini dock is compatible with wide range of USB-A laptops, ultrabooks, chromebooks and Surface Pros
• EASY TO SETUP AND DEPLOY: This USB-A (USB 3.0/USB 3.1 Gen 1) multiport adapter hub features automatic driver setup and supports multiple OS platforms including Windows & Chrome OS

Description

Portable Docking Station | USB 3.0 | Mac & Windows® | TAA Compliant

This USB to Dual DisplayPort Mini Dock provides your USB 3.0 laptop with connectivity for dual 4K 60 Hz monitors and Gigabit LAN - enabling you to quickly harness dual-display productivity and network connectivity.

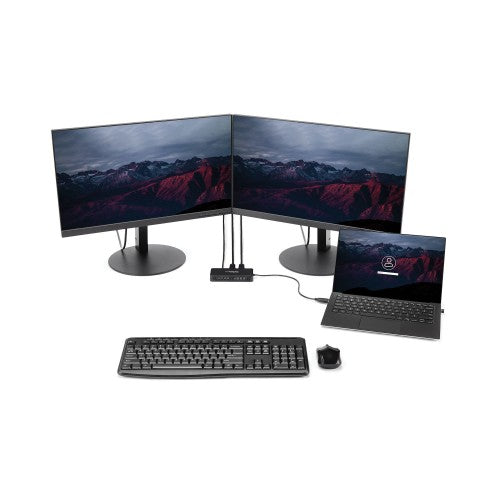

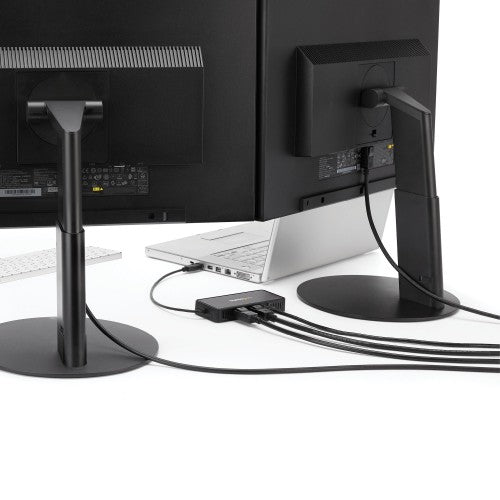

Increase Your Productivity with Two 4K Monitors

The dual DisplayPort adapter adds two DP video outputs to your USB laptop, with resolution support up to 4K. Working on two monitors increases your productivity by giving you more screen space. You can simultaneously access multiple applications and reference material on one display while composing on the other.

Access Hardwired Networks with a GbE Port

Ethernet ports on modern laptops are uncommon, and wireless networks are less secure and less reliable than a hardwired connection. With the GbE port on this portable docking station that features an Ethernet adapter you can access wired LANs even if your USB 3.0 laptop doesn’t have an Ethernet port.

Maximize Portability with a Miniature Docking Station

The dock features a compact design that's perfect for business professionals who need portable office desk accessories for traveling between multiple office locations, or shared workspaces.

The USBA2DPGB is TAA compliant and backed by a 3-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

Ports & interfaces
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	2
Microphone in	No
Connectivity technology	Wired
Network
Full duplex	Yes
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Wake-on-LAN ready	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
UASP support	No
Maximum digital resolution	4096 x 2160 pixels
Full duplex	Yes
Auto MDI/MDI-X	Yes
Number of displays supported	2
Product colour	Black
Card reader integrated	No
Brand compatibility	Any brand
Data transfer rate	5 Gbit/s
Certification	CE, FCC, TAA
Technical details
Product colour	Black
Brand compatibility	Any brand
Data transfer rate	5 Gbit/s
Cable length	0.14 m
Harmonized System (HS) code	84733020
Compliance certificates	RoHS
Products per master (outer) case	20 pc(s)
Master (outer) case width	220 mm
Master (outer) case length	415 mm
Master (outer) case height	255 mm
Storage
Card reader integrated	No
Power
Power source type	USB
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
Mac compatibility	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Weight	126 g
Width	58 mm
Depth	130 mm
Height	20 mm
Package weight	215 g
Package width	200 mm
Package depth	114 mm
Package height	38 mm
Design
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
Product colour	Black
Certification	CE, FCC, TAA
Packaging data
Package weight	215 g
Package width	200 mm
Package depth	114 mm
Package height	38 mm
Packaging content
Quick start guide	Yes
Certificates
Certification	CE, FCC, TAA
Logistics data
Products per master (outer) case	20 pc(s)
Master (outer) case width	220 mm
Master (outer) case length	415 mm
Master (outer) case height	255 mm
Harmonized System (HS) code	84733020
Other features
Chipset	DisplayLink - DL-6950
Cable length	0.14 m
