StarTech.com USB-C & USB-A Dock - Dual Monitor 4K 60Hz Dock DisplayPort + HDMI - Hybrid USB 3.0 Docking Station for USB-C/USB-A Laptops - 6x USB Type-A, GbE - USB 3.1 Gen 1 - Mac/Windows (DK30A2DH)

Key Features

• DUAL 4K 60Hz HYBRID USB-C & USB-A DOCK: Universal USB 3.0 docking station (5Gbps) works with USB-C & USB-A laptops/computers; port replicator features 6-Port USB Type-A hub, Gigabit Ethernet, and 3.5mm audio jacks (headset and mic)
• FLEXIBLE MULTI MONITOR VIDEO: This dual 4K 60Hz universal laptop docking station can connect up to 2 monitors: Dual DisplayPort or Dual HDMI or DP + HDMI displays - supports two extended displays on MacBooks with both the Intel processor or Apple M1/M2 chip
• 6 DOWNSTREAM USB-A PORTS: Hybrid USB C dock has a built-in 6-port USB 3.1/3.2 Gen 1 (5Gbps) hub with USB-A ports on the front and back to support devices such as a keyboard, mouse, flash drive, external hard drive, and printer
• FOR USB-A & USB-C LAPTOPS: DisplayLink certified DL 6950 chipset supports USB-C/Thunderbolt 3 & USB-A PCs; USB-C & USB-A host cables incl; Supports Windows, macOS, Chrome OS, & Ubuntu; This dock does not provide USB-C Power Delivery to charge your laptop
• STARTECH.COM ADVANTAGE: StarTech.com offers a 3-year warranty and free lifetime technical support on all docking stations; with over 3000 products globally, StarTech.com makes hard-to-find easy.

Description

Laptop Docking Station | Mac & Windows® | DisplayPort & HDMI | 4K 60 Hz

This dual-4K docking station offers wide flexibility in setting up your workstation, working with both USB-C and USB-A port laptops and supporting multiple combinations of Ultra HD 4K DisplayPort and HDMI monitors.

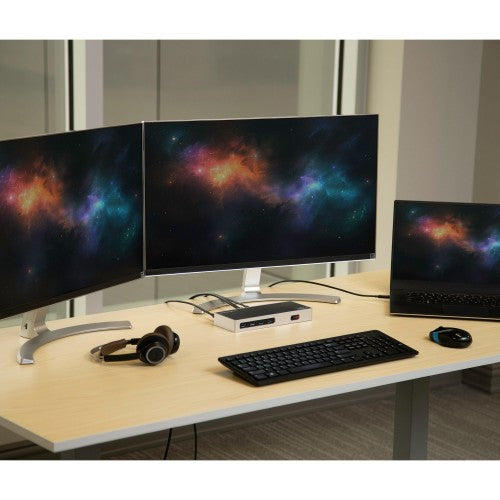

Enhance Productivity with Dual-4K 60Hz Video

Ideal for highly detailed graphics applications, this dual-4K 60Hz docking station enhances your productivity by expanding the display capabilities of your laptop across two Ultra HD 4K monitors. The laptop docking station works with DisplayLink® to support high-resolution monitors, enabling two full 4K 60Hz displays from a single USB connection.

With the dual-4K dock, connect:

• 2x 4K DisplayPort displays (up to 4096 x 2160p @ 60Hz)
• 2x 4K HDMI displays (up to 4096 x 2160p @ 60Hz)
• 1x 4K DisplayPort + 4K HDMI displays (up to 4096 x 2160p @ 60Hz)

Connects to USB-C and USB-A Laptops

The USB 3.0 docking station supports USB-C and USB-A enabled Mac and Windows laptops. This means you can connect newer USB-C or Thunderbolt™ 3 laptops or extend the life of legacy USB 3.0 (Type-A) laptops.

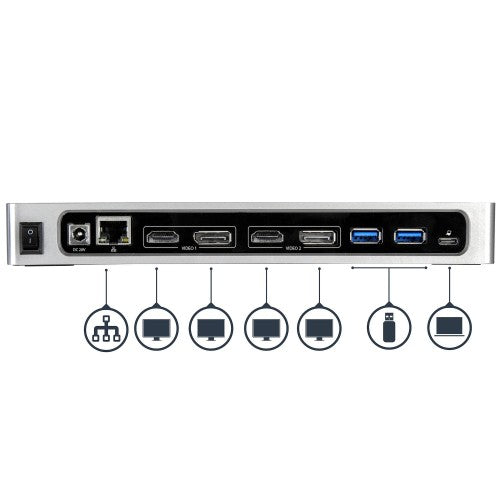

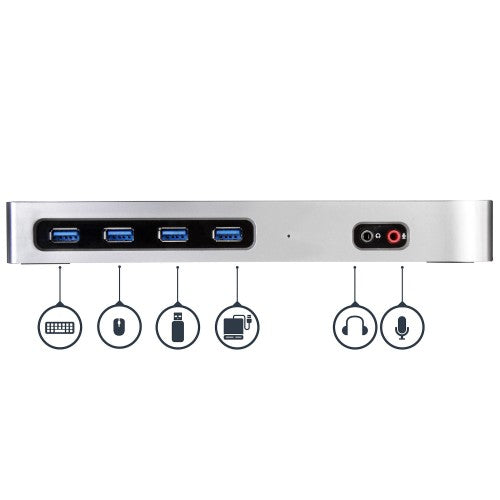

All the Connections You Need

This USB-A & USB-C dock lets you transform your Mac or Windows laptop into a full workstation with six USB 3.0 (Type-A) ports, a Gigabit Ethernet port, and separate 3.5 mm audio and microphone ports for multiple audio connections, all using a single cable.

DK30A2DH is backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

Ports & interfaces
Combo headphone/mic port	No
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
Number of microphone inputs	1
Headphone connectivity	3.5 mm
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	2
DisplayPorts quantity	2
Microphone in	Yes
Headphone outputs	1
DC-in jack	Yes
Connectivity technology	Wired
Network
Full duplex	Yes
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
10G support	No
Performance
UASP support	Yes
Maximum digital resolution	4096 x 2160 pixels
Full duplex	Yes
Auto MDI/MDI-X	Yes
Number of displays supported	2
On/off switch	Yes
Product colour	Black, Silver
Card reader integrated	No
Brand compatibility	Any brand
LED indicators	Power
Data transfer rate	5 Gbit/s
Certification	CE, FCC, REACH
Housing material	Aluminium, Plastic
USB data transfer rates	12,480,5000 Mbit/s
Technical details
Product colour	Black, Silver
Brand compatibility	Any brand
Data transfer rate	5 Gbit/s
Cable length	0.152 m
Harmonized System (HS) code	84733020
Compliance certificates	RoHS
Products per master (outer) case	10 pc(s)
Master (outer) case width	325 mm
Master (outer) case length	325 mm
Master (outer) case height	305 mm
Storage
Card reader integrated	No
Power
Power source type	AC
Input current	1 A
Power plug type	Type N
Compatible power plug types	AU, EU, JP, UK, US
AC input voltage	100 - 240 V
Power consumption (typical)	40 W
Output voltage	20 V
Output current	2 A
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
Mac compatibility	Yes
Indication
LED indicators	Power
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 90%

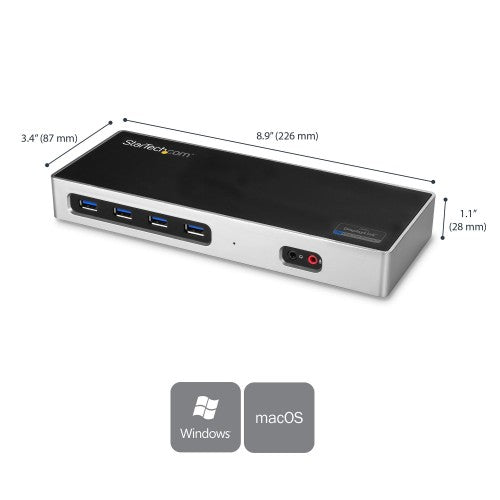

Weight & dimensions
Weight	301 g
Width	87 mm
Depth	226 mm
Height	28 mm
Package weight	900 g
Package width	130 mm
Package depth	318 mm
Package height	52 mm
Design
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
Product colour	Black, Silver
LED indicators	Power
Certification	CE, FCC, REACH
Packaging data
Package weight	900 g
Package width	130 mm
Package depth	318 mm
Package height	52 mm

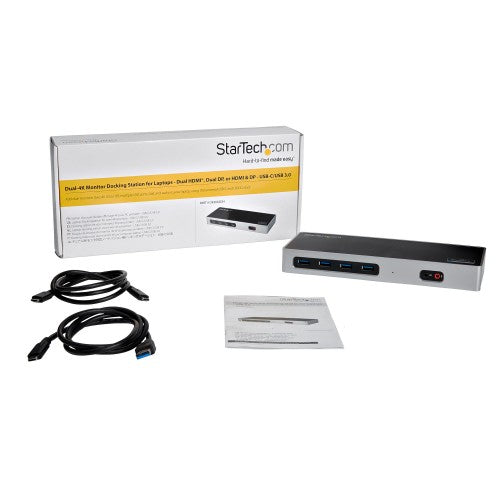

Packaging content
Quick start guide	Yes
Cables included	USB Type-A to USB Type-C, USB Type-C
AC adapter included	Yes
Certificates
Certification	CE, FCC, REACH
Logistics data
Products per master (outer) case	10 pc(s)
Master (outer) case width	325 mm
Master (outer) case length	325 mm
Master (outer) case height	305 mm
Harmonized System (HS) code	84733020
Other features
USB data transfer rates	12,480,5000 Mbit/s
Number of microphone inputs	1
Chipset	DisplayLink - DL-6950, VIA/VLI - VL813
Cable length	0.152 m
