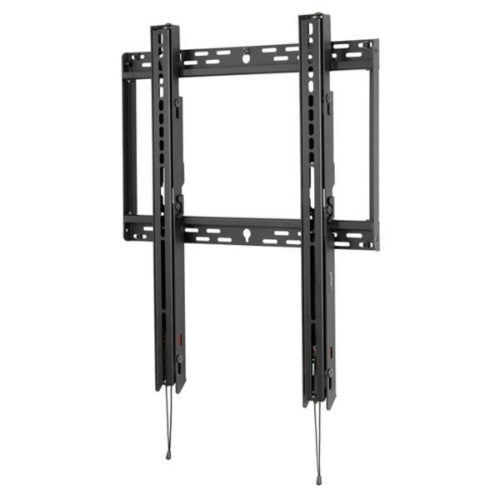

Universal Portrait Flat Wall Mount FOR 46" TO 90" DISPLAYS

Key Features

• Universal mount fits displays with mounting patterns up to 494 x 650mm (19.45" W x 25.59" H)

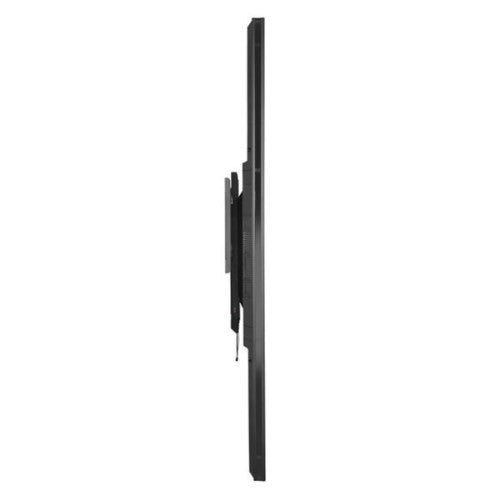

• Low-profile design holds display only 1.70" (43mm) from the wall
• Easy hang wall plate allows a bolt to be pre-installed to ease wall plate installation
• Lateral display adjustment up to 3.38" (85.9mm)
• 1" of post-installation vertical adjustment provides flexibility in the installation
• Includes fastener pack with all necessary mounting and display attachment hardware (including M10)

Description

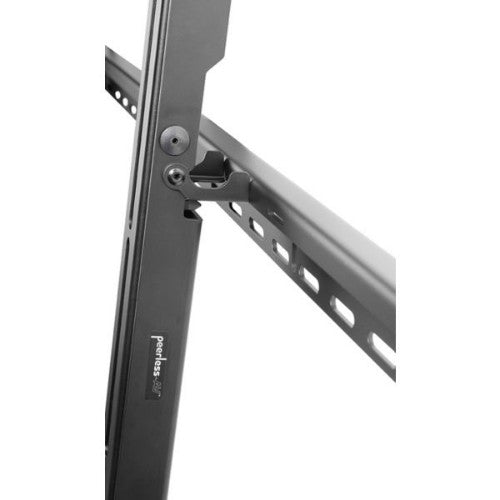

Peerless-AV’s SmartMountTM Universal Portrait Flat Wall Mount delivers an ultra-slim profile designed to hold large displays up to 35lb. Installation and maintenance are made easy with the SFP68’s robust feature set. Auto-latching adaptor rails automatically secure the display without the use of a tool. The mount’s built-in kickstand holds the display safely from the wall during cable routing, while the open wall plate allows for increased electrical and cable management options. Horizontal and vertical display adjustment allow for quick fine-tuning of the mounted display.

Specifications

Mounting
Mounting type	Wall
Minimum screen size	116.8 cm (46")
Panel mounting interface	400 x 600 mm
Number of displays supported	1
Minimum VESA mount	400 x 600 mm
Maximum VESA mount	400 x 600 mm
Maximum screen size	2.29 m (90")
Maximum weight capacity	158 kg
Ergonomics
Height adjustment	Yes
Height adjustment range	0 - 85.9 mm
Distance to the wall (min)	4.3 cm
Distance to the wall (max)	4.3 cm
Technical details
Number of displays supported	1
Distance to the wall (min)	4.3 cm
Distance to the wall (max)	4.3 cm
Product colour	Black
Mounting type	Wall
Mounting hole pattern (W x D)	494 x 650 mm
Compliance certificates	RoHS
Design
Certification	RoHS, UL
Product colour	Black
Certificates
Certification	RoHS, UL
Packaging content
Mounting kit	Yes
Manual	Yes
Weight & dimensions
Width	559 mm
Height	698 mm
Weight	5.4 kg
Depth (min)	4.3 cm
Depth (max)	4.3 cm
Packaging data
Package width	725 mm
Package depth	395 mm
Package height	105 mm
Package weight	6.78 kg
Mounting kit	Yes
Manual	Yes
Logistics data
Harmonized System (HS) code	85299097
Other features
Mounting type	Wall
Mounting hole pattern (W x D)	494 x 650 mm
