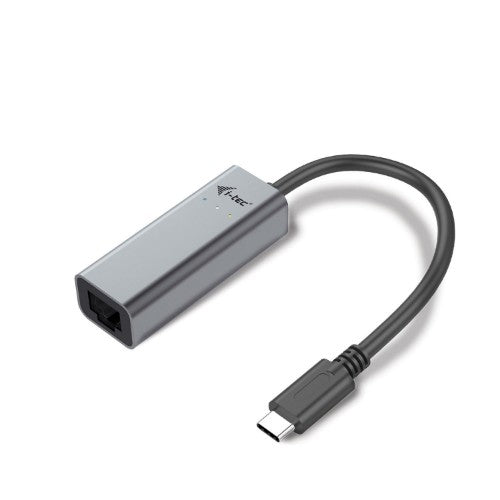

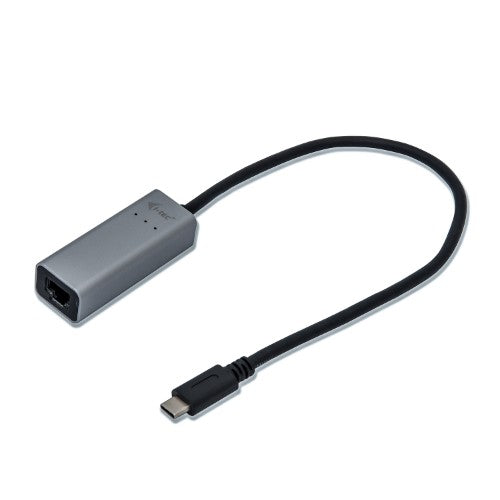

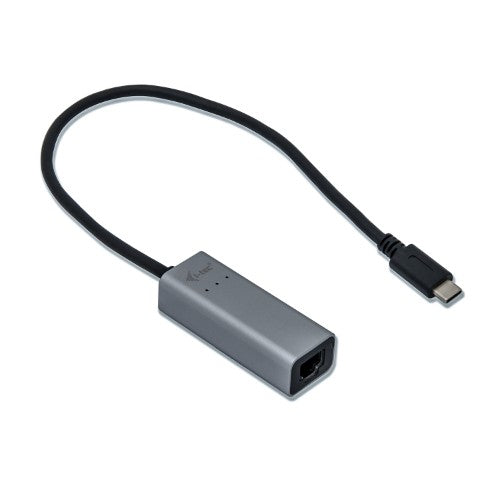

USB-C Metal Gigabit Ethernet Adapter

Key Features

• Expand your laptop, tablet or PC with new USB-C or Thunderbolt 3 connector to Gigabit Ethernet port for high-speed internet access

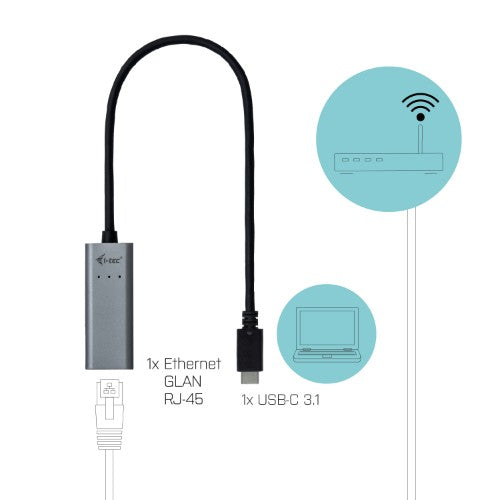

• 1x USB-C 3.1 connector, for connecting to a laptop, tablet or PC
• Fast network and Internet access with Gigabit Ethernet connection, 1x Ethernet GLAN RJ-45 port supports 10/100/1000 Mbps speeds
• Supports Wake-on-LAN, Jumbo frame up to 9k bytes, detection of cable crossover MDI/MDIX
• Support IEEE 802.3az (Energy Efficient Ethernet) and IPv4/IPv6 pack Checksum Offload Engine (COE) to reduce CPU loading

Description

Wi-fi connection is comfortable, however, if you require performance without any compromise, nothing will perform better than a Gigabit Ethernet port; modern devices however often miss this important port. This docking station allows you to easily access to 10/100/1000 Mbps network. You can enjoy high speed internet access without any interruption.

No external power supply is needed. The adapter supports a wide range of operating systems from Windows and Mac OS to Linux. Ethernet network connection can also be used in the Android system. However, the support of this function must be included by the manufacturer directly in the particular Android device. You can easily check this support in Network Connection Settings → Other Networks, which must include Ethernet.

The adapter is suitable for use with MacBook Pro 2016, MacBook 2015, Chromebook Pixel 2015, Acer Switch Alpha 12, Dell XPS 13, HP EliteBook Folio G1, ASUS UX390UAK and other devices with the USB-C connector. The USB-C connector has many advantages, it is smaller, symmetrical and allows easy connection, because now you don’t have to worry about the rotation of the connector. More information about the USB-C is available here.

Specifications

Ports & interfaces
Internal	No
Ethernet LAN (RJ-45) ports	1
Interface	Ethernet
Host interface	USB Type-C
Connectivity technology	Wired
Bandwidth
Maximum data transfer rate	1000 Mbit/s
Network
Chipset	Realtek RTL8153
Jumbo frames	9000
Networking standards	IEEE 802.3az
Wake-on-LAN ready	Yes
Jumbo frames support	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Technical details
Product colour	Grey
Wake-on-LAN ready	Yes
Cable length	0.28 m
Harmonized System (HS) code	85176990
Design
Product colour	Grey
Chipset	Realtek RTL8153
Internal	No
LED indicators	Yes
Software
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Indication
LED indicators	Yes
System requirements
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Compatible operating systems	Windows 7 32/64bit, Windows 8 32/64bit, Windows 8.1 32/64bit, Windows 10 32/64bit, Mac OS, Linux, Android
Weight & dimensions
Width	61 mm
Depth	23 mm
Height	17 mm
Weight	35 g
Package width	130 mm
Package depth	100 mm
Package height	20 mm
Package weight	60 g
Packaging data
Package type	Box
Package width	130 mm
Package depth	100 mm
Package height	20 mm
Package weight	60 g
Manual	Yes
Packaging content
Manual	Yes
Package type	Box
Performance
Wake-on-LAN ready	Yes
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Cable length	0.28 m
Other features
Chipset	Realtek RTL8153
Manual	Yes
Compatible operating systems	Windows 7 32/64bit, Windows 8 32/64bit, Windows 8.1 32/64bit, Windows 10 32/64bit, Mac OS, Linux, Android
Jumbo frames	9000
Cable length	0.28 m
Harmonized System (HS) code	85176990
Logistics data
Harmonized System (HS) code	85176990
