USB 2.0 Fast Ethernet Adapter Advance

Description

The ADVANCE Series is the highest level of i-tec accessories bringing you the cutting edge technologies of products with a modern design and exclusive packaging.

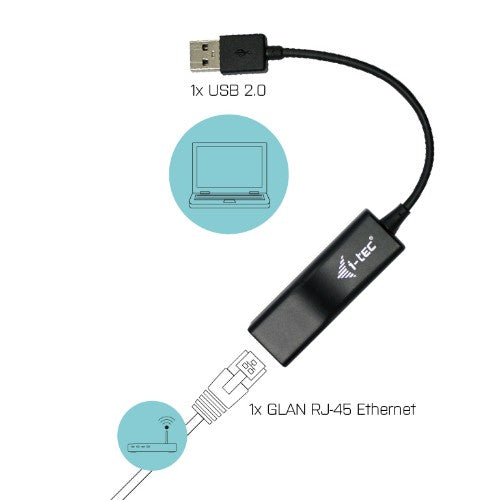

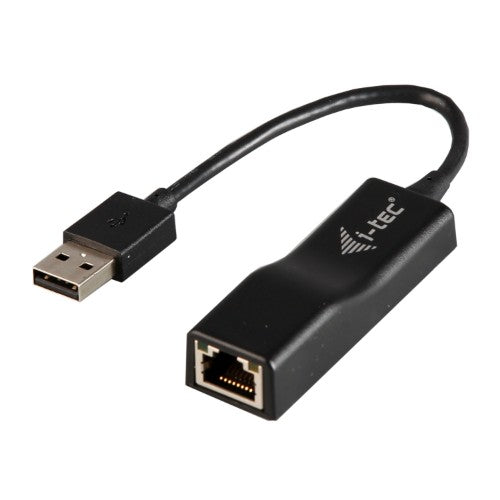

i-tec USB 2.0 Fast Ethernet Adapter is an external 100/10Mbps network card for connecting via USB interface. Thanks to this adapter you can simply and elegantly add another network card to your computer, notebook or tablet. No external power supply is needed. The adapter supports a wide range of operating systems from Windows and Mac OS to Linux.

Ethernet network connection can also be used in the Android system. However, the support of this function must be included by the manufacturer directly in the particular Android device. You can easily check this support in Network Connection Settings → Other Networks, which must include Ethernet.

If you are using MacOS operating system (especially Sierra 10.12), please download the drivers for LAN port below, in the "Download" tab.

Specifications

Ports & interfaces
Internal	No
Ethernet LAN (RJ-45) ports	1
Interface	Ethernet
Host interface	USB
Connectivity technology	Wired
Bandwidth
Full duplex	Yes
Maximum data transfer rate	100 Mbit/s
Network
Chipset	Asix AX88772B
Wake-on-LAN ready	Yes
Full duplex	Yes
Ethernet LAN data rates	10,100 Mbit/s
Maximum data transfer rate	100 Mbit/s
Technical details
Product colour	Black
Wake-on-LAN ready	Yes
Plug and Play	Yes
Harmonized System (HS) code	85176990
Design
Product colour	Black
Chipset	Asix AX88772B
Plug and Play	Yes
Internal	No
LED indicators	Yes
Housing material	Polyvinyl chloride (PVC)
Software
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Power
USB powered	Yes
Indication
LED indicators	Yes
System requirements
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Compatible operating systems	OS Windows XP, Windows 7 32/64bit, Windows 8 32/64bit, Windows 8.1 32/64bit, Windows 10 32/64bit, Mac OS 10.6-10.10, Linux kernel 2.6.14 and later
Weight & dimensions
Width	65 mm
Depth	21 mm
Height	14 mm
Weight	24 g
Package width	223 mm
Package depth	161 mm
Package height	55 mm
Package weight	144 g
Packaging data
Drivers included	Yes
Package type	Blister
Package width	223 mm
Package depth	161 mm
Package height	55 mm
Package weight	144 g
Manual	Yes
Packaging content
Manual	Yes
Drivers included	Yes
Package type	Blister
Performance
Wake-on-LAN ready	Yes
Plug and Play	Yes
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Other features
Chipset	Asix AX88772B
Manual	Yes
Compatible operating systems	OS Windows XP, Windows 7 32/64bit, Windows 8 32/64bit, Windows 8.1 32/64bit, Windows 10 32/64bit, Mac OS 10.6-10.10, Linux kernel 2.6.14 and later
Housing material	Polyvinyl chloride (PVC)
Harmonized System (HS) code	85176990
Logistics data
Harmonized System (HS) code	85176990
