Designer Series Universal Ultra Slim Articulating Wall Mount For 37" to 65" Ultra-thin Displays

Key Features

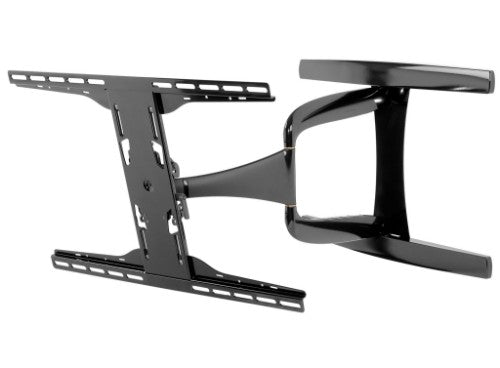

• The I-Shaped Adaptor plate's innovative design helps avoid blocking connections on back of display
• Landscape or portrait mounting options increases display versatility

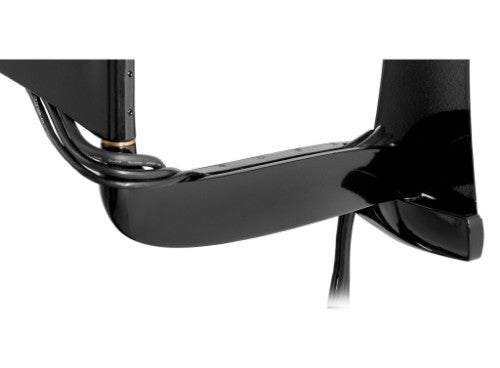

• Internal cable management provides clean, professional installation finish
• Universal mount fits displays with mounting patterns 200 x 100 to 600 x 400mm

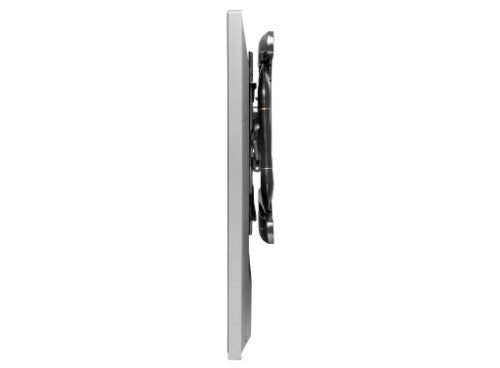

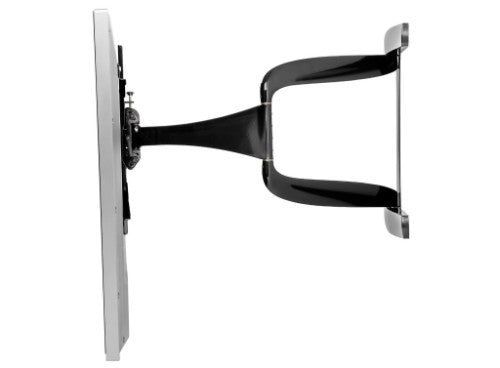

• Arm retracts to 1.85" (47mm) and extends up to 24.85" (631mm) from wall
• One-Touch™ tilt mechanism allows adjustment of +15/-5° without the use of tools
• Up to ±90° of side-to-side swivel
• Added ±5° of roll for post-installation display leveling without the use of tools
• Up to ±0.5" (13mm) of vertical adjustment for post-installation leveling and height adjustment fine-tuning

Description

One of the thinnest wall arm mounts on the market, the Peerless-AV® DesignerSeries™ Universal Ultra Slim Articulating Wall Mount is designed exclusively for ultra-thin displays. The SUA761PU is built to hold medium to larger displays firmly in any position – landscape or portrait – while still offering an ultra-low profile. An innovative I-shaped adaptor plate makes it easy to access the back of the display, keeping hardware hidden, and features internal cable management, providing a clean, professional look that transitions smoothly from the wall to the display. With a gloss Black finish, the SUA761PU matches any décor.

Specifications

Mounting
Mounting type	Wall
Minimum screen size	94 cm (37")
Panel mounting interface	200 x 100,200 x 200,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,400 x 600,600 x 400
Number of displays supported	1
Minimum VESA mount	200 x 100 mm
Maximum VESA mount	600 x 400 mm
Maximum screen size	165.1 cm (65")
Maximum weight capacity	36 kg
Ergonomics
Cable management	Yes
Tilt angle range	-15 - 5°
Swivel angle range	-90 - 90°
Distance to the wall (min)	4.7 cm
Distance to the wall (max)	63.1 cm
Technical details
Cable management	Yes
Number of displays supported	1
Distance to the wall (min)	4.7 cm
Distance to the wall (max)	63.1 cm
Product colour	Black
Mounting type	Wall
Orientation	Landscape/Portrait
Design
Cable management	Yes
Certification	RoHS, UL
Product colour	Black
Certificates
Certification	RoHS, UL
Packaging content
Mounting kit	Yes
Manual	Yes
Weight & dimensions
Width	619 mm
Height	430 mm
Weight	7.67 kg
Depth (min)	4.7 cm
Depth (max)	63.1 cm
Packaging data
Package width	1041 mm
Package depth	603 mm
Package height	102 mm
Package weight	10.4 kg
Mounting kit	Yes
Manual	Yes
Logistics data
Harmonized System (HS) code	85299097
Other features
Mounting type	Wall
