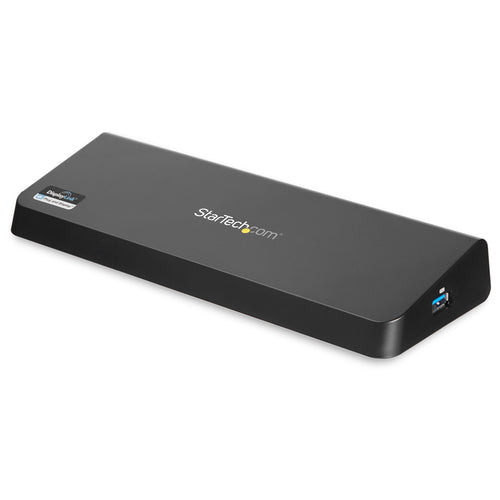

StarTech.com USB 3.0 Docking Station Dual Monitor with HDMI & 4K DisplayPort - USB 3.0 to 4x USB-A, Ethernet, HDMI and DP - USB Type A Universal Laptop Docking Station for Mac & Windows (USB3DOCKHDPC)

Description

Laptop Docking Station | Mac & Windows® | USB Fast Charge Port | 4 USB Ports | TAA Compliant

This TAA compliant dual-monitor USB 3.0 docking station combines a 4-port USB 3.0 hub, headphone and microphone audio connectors, a USB fast-charge port, and a GbE RJ45 Port with Wake-on-LAN (WOL).

4K Ultra HD Resolutions

This 4K USB docking station supports DisplayPort plus HDMI dual video, or a single DP display at 4K Ultra HD resolutions (3840 x 2160p).

Maximum Supported Resolutions*

Video Output Configuration

Max DisplayPort Resolution

Max HDMI Resolution

DisplayPort

(Single Display)

3840 x 2160p (4K)

N/A

HDMI

(Single Display)

N/A

2560 x 1440p

DisplayPort and HDMI

(Two Displays)

2048 x 1152p

2048 x 1152p

*Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.

Integrated USB 3.0 Hub

The built-in USB hub features four USB 3.0 ports for connecting extra peripherals such as external hard drives or a wired mouse as if they are connected directly to your laptop.

USB Fast Charge

The USB 3.0 dock’s always-on USB fast-charge port charges devices without a laptop connection and supports USB Battery Charging Specification 1.2 making it easy to charge your tablets and other mobile devices.

Direct Ethernet Connectivity

The integrated RJ45 Ethernet port supports speeds of 10/100/1000Mbps, giving you an instant connection to a reliable wired network.

Easy to Use

This docking station with DisplayPort and HDMI is universally compatible, working with Mac and Windows® USB 3.0 equipped laptops and includes a 2ft. USB 3.0 cable for quick setup.

StarTech.com laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 docking station is backed by a competitive 3-year warranty and free lifetime multilingual Technical Support.

The StarTech.com Advantage

Specifications

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Headphone connectivity	3.5 mm
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB connector type	USB Type-A
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	1
Headphone outputs	1
Connectivity technology	Wired
Network
Full duplex	Yes
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Wake-on-LAN ready	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
UASP support	Yes
Maximum digital resolution	3840 x 2160 pixels
Full duplex	Yes
Auto MDI/MDI-X	Yes
Product colour	Black
Card reader integrated	No
Brand compatibility	Any brand
Cable lock slot	Yes
LED indicators	Activity, Link
Data transfer rate	5 Gbit/s
Charging function	Yes
Certification	CE, FCC, DisplayLink
Housing material	Plastic, Steel
USB data transfer rates	5000 Mbit/s
Technical details
Product colour	Black
Brand compatibility	Any brand
Cable lock slot	Yes
Data transfer rate	5 Gbit/s
Charging function	Yes
Cable length	0.6 m
Harmonized System (HS) code	84733020
Compliance certificates	RoHS
Products per master (outer) case	10 pc(s)
Master (outer) case width	390 mm
Master (outer) case length	426 mm
Master (outer) case height	302 mm
Products per shipping (inner) case	150 pc(s)
Storage
Card reader integrated	No
Power
Input current	1.5 A
Compatible power plug types	AU, EU, UK, US
AC input voltage	100-240 V
Power consumption (typical)	32.5 W
Output voltage	5 V
Output current	6.5 A
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
Mac compatibility	Yes
Other operating systems supported	ChromeOS
Indication
LED indicators	Activity, Link
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 80 °C
Operating relative humidity (H-H)	0 - 90%
Weight & dimensions
Weight	277 g
Width	76 mm
Depth	227 mm
Height	24 mm
Package weight	1.1 kg
Package width	251 mm
Package depth	198 mm
Package height	71 mm
Design
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
Product colour	Black
Cable lock slot	Yes
LED indicators	Activity, Link
Certification	CE, FCC, DisplayLink
Packaging data
Package weight	1.1 kg
Package width	251 mm
Package depth	198 mm
Package height	71 mm
Packaging content
Drivers included	Yes
Manual	Yes
Cables included	AC, USB
AC adapter included	Yes
Certificates
Certification	CE, FCC, DisplayLink
Logistics data
Products per master (outer) case	10 pc(s)
Master (outer) case width	390 mm
Master (outer) case length	426 mm
Master (outer) case height	302 mm
Products per shipping (inner) case	150 pc(s)
Harmonized System (HS) code	84733020
Other features
USB data transfer rates	5000 Mbit/s
Chipset	DisplayLink - DL-5900, VLI - VL812
Cable length	0.6 m
