Description

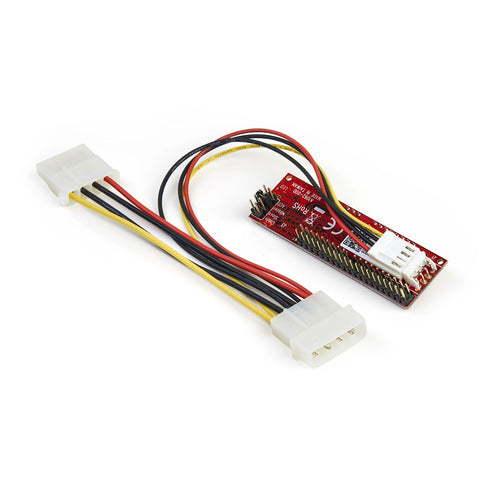

StarTech.com IDE to SATA Hard Drive or Optical Drive Adapter Converter - 40-Pin PATA to 2.5" SATA HDD / SSD / ODD Converter
The IDE2SAT2 40-pin IDE to SATA adapter enables you to connect a SATA I/II/III drive to an available IDE/ATA 33/66/100/133 motherboard port - a cost effective solution that allows you to add newer SATA drives, and keep your existing motherboard.
The IDE/SATA adapter offers a cost-effective solution for bridging the gap between a newer 2.5"/3.5"/5.25" SATA drive and older IDE motherboard port. The IDE2SAT2 also features ODD (Optical Disk Drive) support, allowing you to a add Blu-ray, DVD, or CD-ROM drives to an older IDE motherboard.
The IDE/SATA adapter is backed by a StarTech.com 2-year Warranty and free lifetime technical support.
The StarTech.com Advantage
Description
Connect your SATA Hard Drive or Blu-ray/DVD/CD-ROM Drive to an IDE motherboardThe IDE2SAT2 40-pin IDE to SATA adapter enables you to connect a SATA I/II/III drive to an available IDE/ATA 33/66/100/133 motherboard port - a cost effective solution that allows you to add newer SATA drives, and keep your existing motherboard.
The IDE/SATA adapter offers a cost-effective solution for bridging the gap between a newer 2.5"/3.5"/5.25" SATA drive and older IDE motherboard port. The IDE2SAT2 also features ODD (Optical Disk Drive) support, allowing you to a add Blu-ray, DVD, or CD-ROM drives to an older IDE motherboard.
The IDE/SATA adapter is backed by a StarTech.com 2-year Warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Output interface | SATA |
| Connector(s) | 1 x IDE (40 Pin; EIDE/PATA), 1 x SATA (7+15 pin), 1 x SP4 (4 pin) |
| Host interface | IDE |
| Technical details | |
| Chipset | Marvell - 88SA8052 |
| Logical block addressing (LBA) support | 48 bit |
| Data transfer rate (max) | 0.133 Gbit/s |
| Material | Plastic, Steel |
| Compliance certificates | RoHS |
| Performance | |
| Chipset | Marvell - 88SA8052 |
| Logical block addressing (LBA) support | 48 bit |
| Data transfer rate (max) | 0.133 Gbit/s |
| Product colour | Red |
| Harmonized System (HS) code | 84733020 |
| Certificates | |
| Certification | FCC, CE, TAA, REACH |
| Colour | |
| Product colour | Red |
| Design | |
| Internal | Yes |
| Product colour | Red |
| Certification | FCC, CE, TAA, REACH |
| Features | |
| Chipset | Marvell - 88SA8052 |
| Logical block addressing (LBA) support | 48 bit |
| Data transfer rate (max) | 0.133 Gbit/s |
| Harmonized System (HS) code | 84733020 |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -25 - 80 °C |
| Operating relative humidity (H-H) | 15 - 90% |
| Weight & dimensions | |
| Width | 20 mm |
| Depth | 75.5 mm |
| Height | 23 mm |
| Weight | 29 g |
| Package width | 175 mm |
| Package depth | 145 mm |
| Package height | 33 mm |
| Package weight | 89 g |
| Packaging data | |
| Manual | Yes |
| Package width | 175 mm |
| Package depth | 145 mm |
| Package height | 33 mm |
| Package weight | 89 g |
| Logistics data | |
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 380 mm |
| Master (outer) case length | 496 mm |
| Master (outer) case height | 321 mm |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Material | Plastic, Steel |
| Chipset | Marvell - 88SA8052 |
| Packaging content | |
| Manual | Yes |
