StarTech.com USB 3.0 Dual Monitor Docking Station with HDMI & DVI/VGA, 6x USB-A Ports, Ethernet, Audio & USB Type-A Hub, Universal Laptop Dock - Windows/macOS/ChromeOS (USB3SDOCKHD)

Key Features

• UNIVERSAL DOCKING STATION: USB 3.0 docking station dual monitor features built-in 1x HDMI and 1x DVI monitor outputs; DVI to VGA adapter included for compatibility with VGA monitors; 1920 x 1200p maximum resolution on two displays
• INCREASED PRODUCTIVITY: This dual monitor universal docking station for laptops combines 4x USB 2.0 ports, 2x USB 3.2 Gen 1 (5Gbps) hub ports, headphone & microphone audio jack, and a Gigabit Ethernet RJ45 port into a single IT-grade dock
• UPRIGHT DESIGN: The high performance, all black, upright dock features a slim & sleek design that is the perfect addition to any home or office workstation; The dock enhances your laptop's capabilities while taking up little desk space
• UNIVERSAL COMPATIBILITY: Compatible with Windows, macOS, & Chrome OS v55+, enabling extended dual displays on Laptops, Ultrabooks, Chromebooks and MacBooks that feature a USB-A host connection; Supports HDMI, DVI and VGA monitors
• CONNECTIVITY TOOLS: Optimize the performance and security of this USB 3.0 docking station, using the included MAC Address Changer, USB Event Monitoring, Windows Layout & Wi-Fi Auto Switch utilities (available for download)

Description

Maximize your productivity with this Dual Monitor USB-A Docking Station featuring Gigabit Ethernet, USB Hub, and Audio

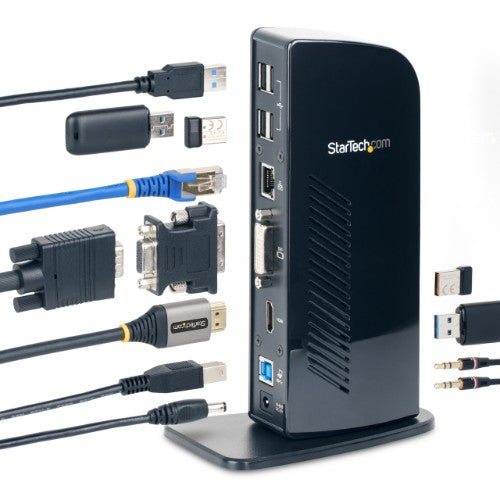

This USB 3.0 dock combines a 6 port USB 2.0/USB 3.0 hub, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port into a single docking station.

Display Adaptability

Offering flexible dual video combinations right out-of-the-box, this universal laptop docking station features HDMI and DVI external monitor output providing up to 1920x1200p resolutions, as well as an included DVI to VGA adapter for added flexibility.

Integrated USB Hub

The built-in USB hub features 2 USB 3.0 ports and 4 USB 2.0 ports for connecting extra peripherals such as external hard drives or a wired mouse as if they connected directly to your laptop.

Versatile Design

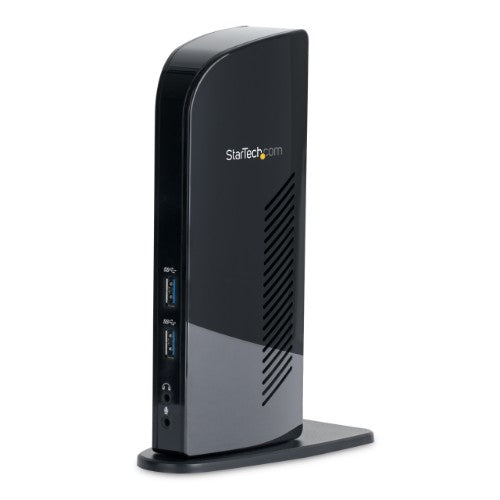

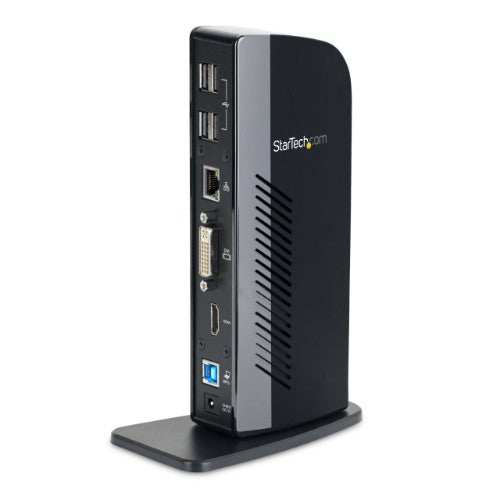

With an upright design, the dock occupies as little desk space as your smart phone, so it's perfect for hoteling or hot desk environments.

Direct Ethernet Connectivity

The integrated RJ45 Ethernet port supports speeds of 10/100/1000 Mbps, giving you an instant connection to a reliable wired network.

StarTech.com’s laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 Docking Station is backed by a competitive 3-year warranty and free lifetime multilingual Technical Support.

The StarTech.com Advantage

Specifications

Ports & interfaces
Combo headphone/mic port	No
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Number of microphone inputs	1
Headphone connectivity	3.5 mm
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 2.0 ports quantity	4
USB connector type	USB Type-A
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DVI-I ports quantity	1
Microphone in	Yes
Headphone outputs	1
DC-in jack	Yes
Connectivity technology	Wired
Network
Full duplex	Yes
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Maximum digital resolution	1920 x 1200 pixels
Full duplex	Yes
Auto MDI/MDI-X	Yes
Product colour	Black
Card reader integrated	No
Brand compatibility	Any brand
LED indicators	Power, USB
Data transfer rate	5 Gbit/s
Certification	CE, FCC
Housing material	Plastic
Technical details
Product colour	Black
Brand compatibility	Any brand
Data transfer rate	5 Gbit/s
Harmonized System (HS) code	84733020
Compliance certificates	RoHS
Products per master (outer) case	6 pc(s)
Master (outer) case width	300 mm
Master (outer) case length	400 mm
Master (outer) case height	360 mm
Storage
Card reader integrated	No
Power
Input current	0.8 A
Power plug type	Type C
Compatible power plug types	AU, EU, JP, UK, US
AC input voltage	100 - 240 V
Power consumption (typical)	20 W
Output voltage	5 V
Output current	4 A
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows XP Home, Windows XP Professional
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Mac compatibility	Yes
Other operating systems supported	ChromeOS
Indication
LED indicators	Power, USB
Operational conditions
Operating temperature (T-T)	10 - 40 °C
Storage temperature (T-T)	-10 - 80 °C
Weight & dimensions
Weight	370 g
Width	70 mm
Depth	125 mm
Height	195 mm
Package weight	900 g
Package width	190 mm
Package depth	273 mm
Package height	109 mm
Design
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows XP Home, Windows XP Professional
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Product colour	Black
LED indicators	Power, USB
Certification	CE, FCC
Packaging data
Package weight	900 g
Package width	190 mm
Package depth	273 mm
Package height	109 mm

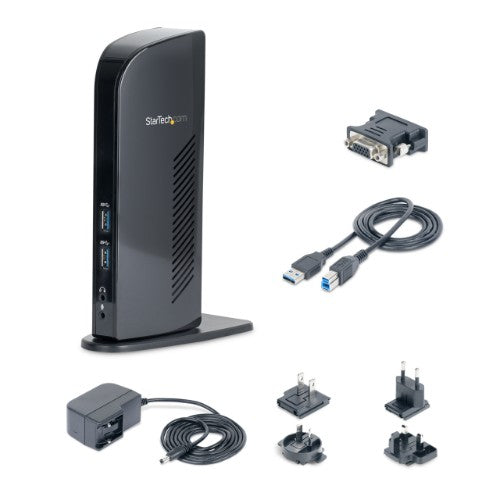

Packaging content
Drivers included	Yes
Interface adapters included	DVI-I male - VGA female
Manual	Yes
Cables included	USB
AC adapter included	Yes
Certificates
Certification	CE, FCC
Logistics data
Products per master (outer) case	6 pc(s)
Master (outer) case width	300 mm
Master (outer) case length	400 mm
Master (outer) case height	360 mm
Harmonized System (HS) code	84733020
Other features
Number of microphone inputs	1
Minimum system requirements	CPU: i3 Dual core 2.8GHz + RAM: 2GB +
Chipset	DisplayLink - DL-3900, VLI - VL810, Terminus - FE1.1, Realtek - RTL8211E
